About the TechnicalDocs openUC2-QBox PCB
TechnicalDocs openUC2-QBox is an open source ESP32 PCB design by openUC2, published on GitHub. It is a 4-layer board measuring 106 × 46 mm, with 149 components from 83 distinct parts.
Its main chip is the xiao_esp32s3, from the ESP32 family. Other key parts include the LT1054IDWG4, ADF4351BCPZ, LTC5589IUF#PBF, NCV4276CDS33R4G and AD8137. By type, the board carries 67 capacitors, 44 resistors, 9 ICs, 9 connectors, 9 inductors and 8 diodes.
From the project

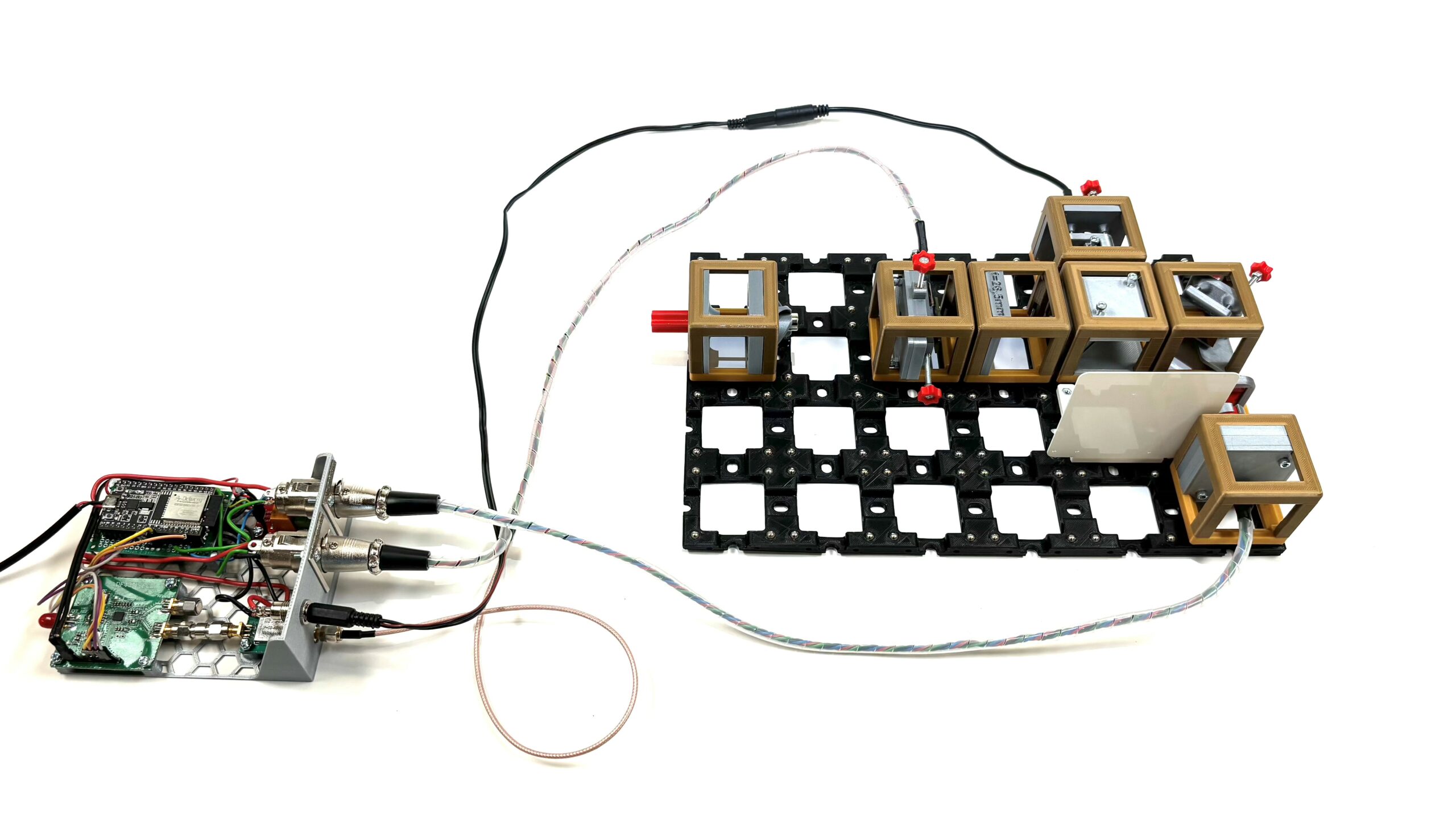

The Quantum box that comes from the BMBF Project
1. BillofMaterials (BOM): Contains a detailed list of all parts and materials used in the project, including suppliers and part numbers.
2. Certifications: Holds all the relevant certification documents, such as CE compliance and other regulatory certifications your product meets.
3. ChangeLogs**: Records all changes made to the project over time, providing a historical record of modifications and updates.
Main components on the TechnicalDocs openUC2-QBox
TechnicalDocs openUC2-QBox bill of materials (BOM)
149 components, 83 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | LT1054IDWG4 | SOIC127P1030X265-16N | IC1 |
| 1 | ADF4351BCPZ | QFN50P500X500X100-33N | IC3 |
| 1 | LTC5589IUF#PBF | QFN50P400X400X80-25N-D | IC4 |
| 1 | NCV4276CDS33R4G | NCV4276CDS33R4G | IC8 |
| 1 | xiao_esp32s3 | XIAO-ESP32S3-DIP | U1 |
| 1 | AD8137 | SOIC-8_3.9x4.9mm_P1.27mm | U2 |
| 1 | M3SWA2-63DRC | QFN-12-1EP_3x3mm_P0.51mm_EP1.45x1.45mm | U8 |
| 2 | GRF2012 | DFN-6-1EP_2x2mm_P0.5mm_EP0.6x1.37mm | U9, U12 |
| 1 | TG2520SMN 30.000M-MCGNNM0 TG2520SMN_30.000M-MCGNNM0 | TG2520SMN30000MMCGNNM0 | Y2 |
| 6 | Conn_Coaxial | U.FL_Hirose_U.FL-R-SMT-1_Vertical | J1, J2, J10, J11, J14, J18 |
| 1 | Conn_Coaxial | SMA_Amphenol_132289_EdgeMount | J3 |
| 2 | I2C_JST-PH_STEMMA | JST_PH_S4B-PH-SM4-TB_1x04-2iMP_P2.00mm_Horizontal | J4, J5 |
| 1 | MINISMDC110F/24-2 | Fuse_1812_4532Metric | F1 |
| 1 | Jumper_2_Bridged | SolderJumper-2_P1.3mm_Open_RoundedPad1.0x1.5mm | JP11 |
| 1 | WS2812B | LED_WS2812B_PLCC4_5.0x5.0mm_P3.2mm | D1 |
| 1 | 1N4148 | D_SOD-123 | D4 |
| 1 | LED | LED_0805_2012Metric | D5 |
| 2 | SZMMSZ5232BT1G | D_SOD-123 | D6, D7 |
| 1 | DFLZ5V1Q-7 | D_SOD-123 | D12 |
| 1 | https://www.mouser.de/datasheet/2/54/cdsod323_txxsc-777083.pdf | D_SOD-323 | D15 |
Show 63 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | PD3S220L-7 | PD3S1407 | D19 |
| 2 | MPZ1608S331AT | L_0603_1608Metric | FB1, FB2 |
| 1 | Z1206C800APWST | L_1206_3216Metric | FB3 |
| 2 | 3.3n | L_0402_1005Metric | L6, L7 |
| 1 | 10n | L_0402_1005Metric | L8 |
| 1 | 4.7n | L_0402_1005Metric | L9 |
| 2 | 47n | L_0603_1608Metric | L10, L11 |
| 1 | 10u/Tantalum | CP_EIA-6032-15_Kemet-U | C1 |
| 1 | 100u/Tantalum | CP_EIA-7343-20_Kemet-V | C2 |
| 2 | 4.7u | C_0805_2012Metric | C3, C56 |
| 1 | 2n | C_0603_1608Metric | C4 |
| 1 | 100n/16V | C_0402_1005Metric | C5 |
| 11 | 0.1u | C_0603_1608Metric | C6, C7, C60, C61, C68, C74, C75, C92 +3 |
| 2 | 10n | C_0603_1608Metric | C8, C9 |
| 1 | 10p | C_0402_1005Metric | C50 |
| 2 | 0.7p | C_0402_1005Metric | C51, C52 |
| 1 | 1.2n | C_0603_1608Metric | C53 |
| 1 | 39n | C_0603_1608Metric | C54 |
| 1 | 2.7n | C_0603_1608Metric | C55 |
| 7 | 10p | C_0603_1608Metric | C57, C63, C71, C104, C105, C106, C114 |
| 2 | 1n | C_0603_1608Metric | C58, C62 |
| 7 | 100n | C_0603_1608Metric | C69, C76, C78, C79, C81, C119, C120 |
| 2 | 0.2p | C_0402_1005Metric | C70, C85 |
| 1 | 2p | C_0402_1005Metric | C73 |
| 3 | 1u | C_0603_1608Metric | C77, C129, C130 |
| 2 | 1n | C_0402_1005Metric | C80, C82 |
| 1 | DNI | C_0603_1608Metric | C83 |
| 2 | 100p | C_0402_1005Metric | C84, C93 |
| 2 | 1p | C_0402_1005Metric | C87, C88 |
| 2 | 0.5p | C_0402_1005Metric | C90, C91 |
| 2 | 0.1u | C_0402_1005Metric | C98, C110 |
| 2 | 1000p | C_0402_1005Metric | C103, C115 |
| 1 | 470u | CP_Elec_8x10.5 | C145 |
| 1 | 220n | C_1206_3216Metric | C151 |
| 1 | 100n | C_1206_3216Metric | C153 |
| 1 | 1u | C_1206_3216Metric | C157 |
| 2 | 100n | C_0805_2012Metric | C158, C161 |
| 1 | 22u | C_1210_3225Metric | C162 |
| 1 | 20k | R_0603_1608Metric | R1 |
| 1 | 102.6k | R_0603_1608Metric | R2 |
| 2 | 2k2 | R_0402_1005Metric | R3, R4 |
| 2 | 0R | C_0402_1005Metric | R5, R91 |
| 1 | 50 | R_0402_1005Metric | R6 |
| 4 | 10k | C_0603_1608Metric | R7, R8, R9, R10 |
| 2 | R | R_0603_1608Metric | R11, R12 |
| 1 | 1.15k | R_0603_1608Metric | R13 |
| 1 | 500 | R_0603_1608Metric | R14 |
| 1 | 680R | R_0603_1608Metric | R44 |
| 3 | 0R | R_0603_1608Metric | R45, R63, R75 |
| 1 | 360R | R_0603_1608Metric | R46 |
| 5 | DNI | R_0603_1608Metric | R47, R62, R76, R78, R79 |
| 3 | 1k | R_0603_1608Metric | R49, R50, R70 |
| 1 | 100k | R_0603_1608Metric | R53 |
| 1 | 100R | R_0603_1608Metric | R55 |
| 1 | 4.7k | R_0603_1608Metric | R57 |
| 1 | 1R | R_0603_1608Metric | R60 |
| 4 | 49.9R | R_0603_1608Metric | R65, R68, R71, R72 |
| 1 | 750R | R_0603_1608Metric | R66 |
| 1 | 49.9 | R_0603_1608Metric | R73 |
| 1 | 10R | R_0603_1608Metric | R77 |
| 1 | 100R | R_0402_1005Metric | R80 |
| 2 | 11.5R | R_0402_1005Metric | R81, R82 |
| 2 | 250R | C_0402_1005Metric | R89, R93 |
TechnicalDocs openUC2-QBox design files
The KiCad project lives in the openUC2/TechnicalDocs-openUC2-QBox repository on GitHub; these links point at the commit this page was built from.
TechnicalDocs openUC2-QBox: common questions
What microcontroller does the TechnicalDocs openUC2-QBox use?
The TechnicalDocs openUC2-QBox is built around the xiao_esp32s3, from the ESP32 family.
How big is the TechnicalDocs openUC2-QBox PCB?
The TechnicalDocs openUC2-QBox measures 106 × 46 mm, has 4 copper layers and is 1.6165 mm thick.
How many components are on the TechnicalDocs openUC2-QBox?
149 components, from 83 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the TechnicalDocs openUC2-QBox design files?
From the openUC2/TechnicalDocs-openUC2-QBox repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the TechnicalDocs openUC2-QBox design in my own project?
The repository has no license, so all rights stay with openUC2. Use it as a reference, and ask the author before reusing the design.
