Opm inline PCB layout, top view — open source RP2040/RP2350 board by opme

About the Opm inline PCB

Opm inline is an open source RP2040/RP2350 PCB design by opme, published on GitHub. It is a 4-layer board measuring 58 × 40 mm, with 100 components from 57 distinct parts.

Its main chip is the RP2040, from the RP2040/RP2350 family. Other key parts include the TMC6200-TA, MIC5219-3.3YM5-TR, MIC5219-5.0YM5-TR, TJA1051TK/3 and TERMINALBLOCK_2_P5.08MM. By type, the board carries 35 capacitors, 31 resistors, 8 transistors, 7 ICs, 5 jumpers and 5 diodes.

It belongs with the robotics & motion and sensors designs in this gallery.

From the project

open source motor drivers to be driven by foc controller

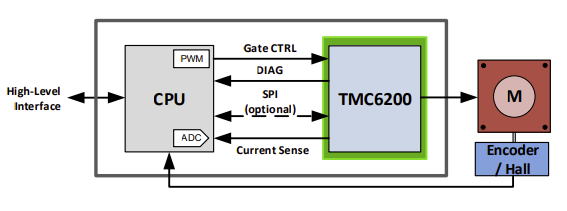

This motor driver uses inline current sensing. The driver chip TMC6200 has built in current sensing.

Design uses TMC6200 gate driver. The datasheet is located at . Below are some high level details about the gate driver.

Universal high voltage BLDC/PMSM/Servo MOSFET 3-halfbridge gate-driver with in line motor current sensing. External MOSFETs for up to 100A motor current. 3 Floating Sense Amplifiers with programmable gain (5, 10, 20)

Opm inline, from the project README
From the project README

Main components on the Opm inline

Opm inline bill of materials (BOM)

100 components, 57 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
TMC6200-TA
eTQFP48_9x9_TRI
IC1
1
MIC5219-3.3YM5-TR
IC5
1
MIC5219-5.0YM5-TR
IC6
1
TJA1051TK/3
IC7
1
RP2040
U1
1
TERMINALBLOCK_2_P5.08MM
TerminalBlock_2_P5.08mm
U2
1
TERMINALBLOCK_3_P5.08MM
TerminalBlock_3_P5.08mm
U3
6
HYG025N06LS1C2
Q1, Q2, Q3, Q4, Q5, Q6
1
WSD90P06DN56
Q7
1
CSTCE8M00G55-R0
Q8
1
C131337
VCC_IO
J2
1
C131337
Fan
J4
1
0ZCK0020FF2G
F1
1
M04PTH
JP1
1
M01PTH
JP2
1
M02PTH
JP3
2
JST-GH-4
JP4, JP5
1
BOOT0
SJ1
2
SOLDERJUMPERNO
SJ2, SJ3
1
PH4
SWD1
Show 37 more
QtyPartRefs
1
red
LED1
1
green
LED2
1
C72041
Green LED
D1
1
C72044
Red LED
D2
1
10V
D4
1
NUP4114UCW1T2G
Val**
D5
1
C523249
TVS DIODE
D6
1
22NF/100V
22nF/100V
C1
2
100NF/100V
100nF/100V
C2, C3
3
4.7UF/16V
4.7uF/16V
C4, C5, C6
9
1UF/100V
1uF/100V
C7, C8, C9, C21, C22, C23, C24, C25 +1
3
100NF/50V
100nF/50V
C10, C17, C20
3
1NF/100V
1nF/100V
C11, C12, C14
2
2.2UF/50V
2.2uF/50V
C13, C19
2
330UF/63V
330uF/63V
C15, C16
1
100NF/100V
100nF/100V
C18
6
100n
C27, C28, C29, C30, C32, C35
1
10u/25V
C31
1
1uF
C33
1
1uF
C34
6
C22939
2R2/1%
R1, R3, R4, R6, R11, R13
3
C22859
10R/1%
R2, R5, R12
6
C601096
0R005/1%/1W
R7, R8, R9, R10, R14, R15
1
C13564
10000R/1%
R16
2
C23162
4700R/1%
R17, R18
1
C22975
1000R/1%
R19
1
C8218
150R/1%
R20
1
C21190
1000R/1%
R21
1
0R
R22
1
10k
R23
2
10KR/1%
R24, R28
1
0Ω
R25
1
C21189
0R
R26
1
100KR
R27
1
120
R29
1
4.7k
R30
1
2.2k
R31

Opm inline design files

The KiCad project lives in the opme/motor-driver repository on GitHub; these links point at the commit this page was built from.

Opm inline: common questions

What microcontroller does the Opm inline use?

The Opm inline is built around the RP2040, from the RP2040/RP2350 family.

How big is the Opm inline PCB?

The Opm inline measures 58 × 40 mm, has 4 copper layers and is 1.6 mm thick.

How many components are on the Opm inline?

100 components, from 57 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Opm inline design files?

From the opme/motor-driver repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Opm inline design in my own project?

The repository has no license, so all rights stay with opme. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the Opm inline without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug RP2040/RP2350 firmware against it before you order a PCB.
