Carrier orange pi zero 3w
About the Carrier orange pi zero 3w PCB
Carrier orange pi zero 3w is an open source PCB design by Oru-star, published on GitHub. It is a 2-layer board measuring 168.5 × 106.9 mm, with 64 components from 25 distinct parts.
Other key parts include the TPS54302DDCT. By type, the board carries 28 capacitors, 28 resistors, 4 connectors, 2 fuses, 1 IC and 1 transistor.
It belongs with the dev boards & breakouts, rf & radio and power & battery designs in this gallery.
From the project
A custom portable cyberdeck for computing, offline communication, electronics, and field experimentation.
A custom portable cyberdeck for computing, offline communication, electronics, and field experimentation.

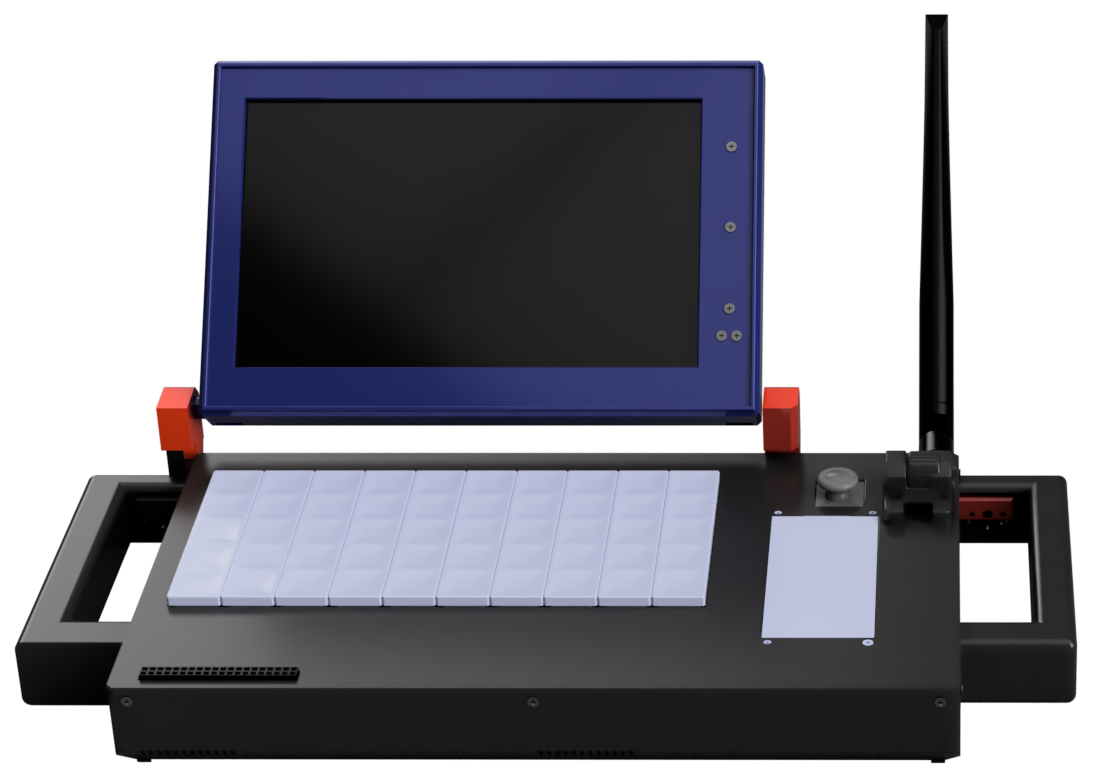

These four renders show the overall enclosure concept and the carrier board from both sides.
Doomsday Deck is a custom-built, portable cyberdeck which is mde for daily computing,offline computation, and electronics experimentation all in one!!. The design uses a Orange pi zero 3w as the main sbc,7inch Display,Custom Mechanical keyboard,20000 mah battery system,RTL Sdr,A lora module,External 20Gpio pins for adding external devices or tinkering with other hardware....
Main components on the Carrier orange pi zero 3w
Carrier orange pi zero 3w bill of materials (BOM)
64 components, 25 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | TPS54302DDCT | SOT-23-6 | U1 |
| 1 | 2N7002 | SOT-23 | Q2 |
| 1 | Orange Pi Zero 3W - 40-Pin GPIO | PinHeader_2x20_P2.54mm_Vertical | J3 |
| 1 | Conn_01x04_Pin | UPS_HAT_E_Mating | J4 |
| 1 | ORANGE_PI_POWER_CABLE | PinHeader_1x04_P1.00mm_Vertical | J5 |
| 1 | 5V_PERIPHERALS | PinHeader_1x02_P2.54mm_Vertical | J6 |
| 1 | 3A | Fuse_1812_4532Metric | F1 |
| 1 | MF-R500 | C_1206_3216Metric | F2 |
| 12 | 100nF | C_0805_2012Metric | C1, C3, C6, C10, C14, C15, C16, C17 +4 |
| 6 | 1µF | C_0805_2012Metric | C2, C19, C21, C24, C27, C28 |
| 1 | 100uF | CP_Radial_D6.3mm_P2.50mm | C4 |
| 1 | 1uF | C_0805_2012Metric | C5 |
| 1 | 470µF | C_Elec_8x10.2 | C7 |
| 1 | 47pF | C_0805_2012Metric | C8 |
| 1 | 10µF | C_1206_3216Metric | C9 |
| 2 | 22µF | C_1206_3216Metric | C11, C12 |
| 1 | 10µF | C_0805_2012Metric | C13 |
| 2 | 33pF | C_0805_2012Metric | C25, C26 |
| 17 | 10k | R_0805_2012Metric | R1, R11, R12, R13, R14, R15, R16, R17 +9 |
| 5 | 100k | R_0805_2012Metric | R2, R6, R7, R24, R26 |
Show 5 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | 22.1k | R_0805_2012Metric | R3 |
| 1 | 1M | R_0805_2012Metric | R4 |
| 1 | 12.0k | R_0805_2012Metric | R5 |
| 2 | 5.1k | R_0805_2012Metric | R8, R9 |
| 1 | 10 kΩ | R_0805_2012Metric | R10 |
Carrier orange pi zero 3w design files
The KiCad project lives in the Oru-star/Doomsday-deck repository on GitHub; these links point at the commit this page was built from.
Carrier orange pi zero 3w: common questions
How big is the Carrier orange pi zero 3w PCB?
The Carrier orange pi zero 3w measures 168.5 × 106.9 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Carrier orange pi zero 3w?
64 components, from 25 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Carrier orange pi zero 3w design files?
From the Oru-star/Doomsday-deck repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the Carrier orange pi zero 3w design in my own project?
The repository has no license, so all rights stay with Oru-star. Use it as a reference, and ask the author before reusing the design.
