About the DIY-UPS-for-WiFi-Router PCB

DIY-UPS-for-WiFi-Router is an open source PCB design by Ozonised, published on GitHub. It is a 2-layer board measuring 90 × 70 mm, with 15 components from 12 distinct parts.

Other key parts include the L7809. By type, the board carries 6 connectors, 4 capacitors, 2 diodes, 1 IC and 1 switch.

It belongs with the power & battery and iot & wireless designs in this gallery.

From the project

UPS for Wi-Fi routers and ONU

In additon to the items mentioned above, you will also need some other miscellaneous stuff like wires, etc.

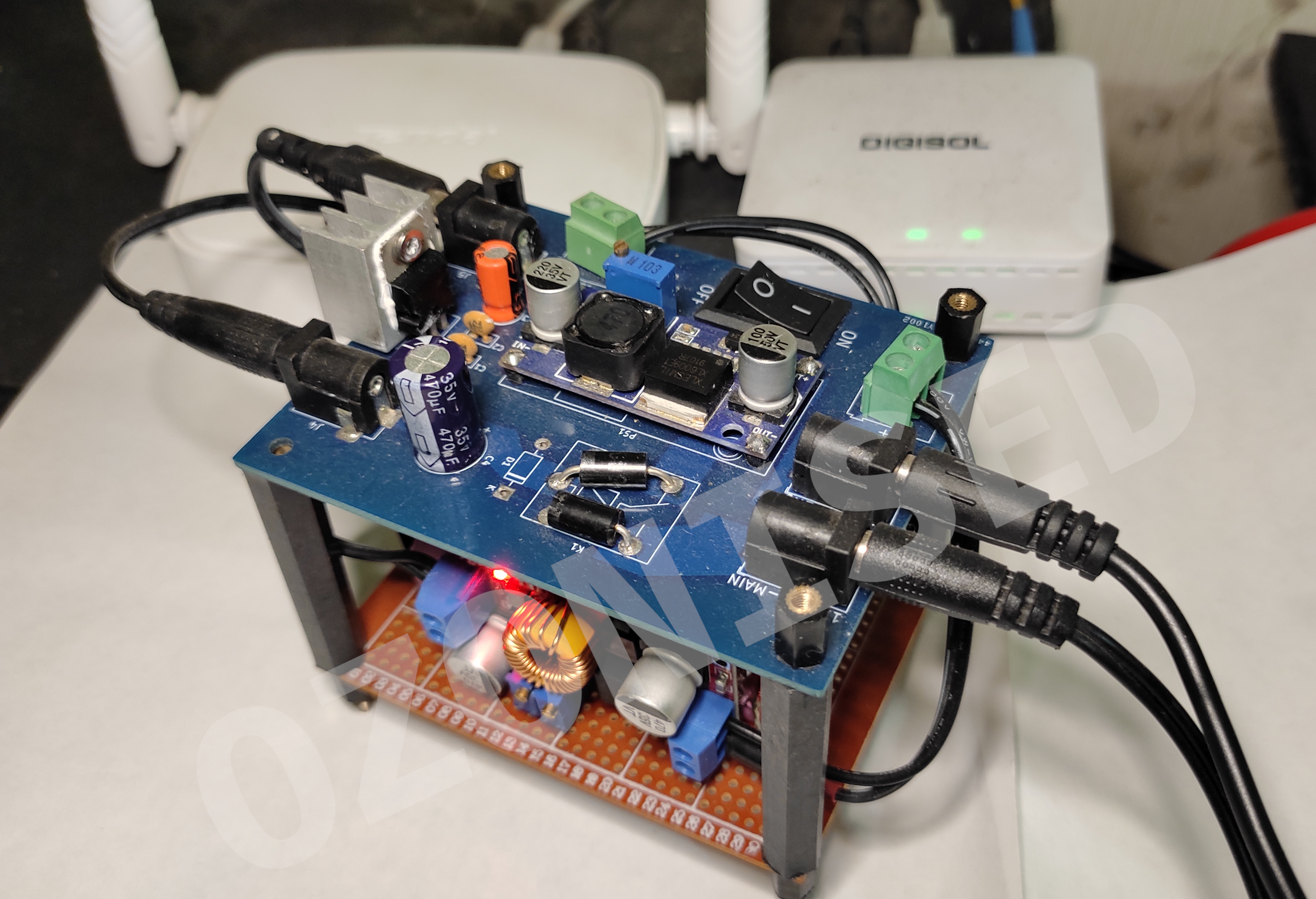

DIY-UPS-for-WiFi-Router, from the project README
From the project README

Main components on the DIY-UPS-for-WiFi-Router

L7809

DIY-UPS-for-WiFi-Router bill of materials (BOM)

15 components, 12 distinct parts.

QtyPartRefs
1
L7809
U1
2
12V-IN
J1, J2
1
BAT IN
J3
1
12V-OUT
J4
1
9V-OUT
J5
1
12V out
J6
1
XL6009_module
PS1
1
SW_SPST
SW1
2
1N5822
D1, D2
2
0.1uF
C1, C2
1
220uF
C3
1
470uF
C4

DIY-UPS-for-WiFi-Router design files

The KiCad project lives in the Ozonised/DIY-UPS-for-WiFi-Router repository on GitHub; these links point at the commit this page was built from.

DIY-UPS-for-WiFi-Router: common questions

How big is the DIY-UPS-for-WiFi-Router PCB?

The DIY-UPS-for-WiFi-Router measures 90 × 70 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the DIY-UPS-for-WiFi-Router?

15 components, from 12 distinct parts. The full bill of materials is listed on this page.

Where can I download the DIY-UPS-for-WiFi-Router design files?

From the Ozonised/DIY-UPS-for-WiFi-Router repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the DIY-UPS-for-WiFi-Router design in my own project?

The repository has no license, so all rights stay with Ozonised. Use it as a reference, and ask the author before reusing the design.
