RadioBerry PCB layout, top view — open source board by pa3gsb
Simulate this board

About the RadioBerry PCB

RadioBerry is an open source PCB design by pa3gsb, published on GitHub. It is a board measuring 85.3 × 56 mm, with 114 components from 29 distinct parts.

Other key parts include the LD1117S33, LD1117S25, LD1117S12, AD9866 and SI570. By type, the board carries 62 capacitors, 16 resistors, 8 ICs, 8 LEDs, 5 inductors and 4 fuses.

It belongs with the rf & radio and dev boards & breakouts designs in this gallery.

From the project

Depcrecated. The successor is the Radioberry 2.x repo (Ham Radio hat for Raspberry PI)

RadioBerry - Ham Radio cape for Raspberry PI ==============================================

- Building a HAM Radio - Learning (from noob to guru)

- Raspberry PI 2 Model B - Radio extension board (cape) - using AD9866 (12 bit) for RX and TX modes.

Initialy i had the idea of using JAVA as then main programming language, but the lack of speed when reading and writing to the GPIO of the raspberry pi forced me to use the 'C' programming language.

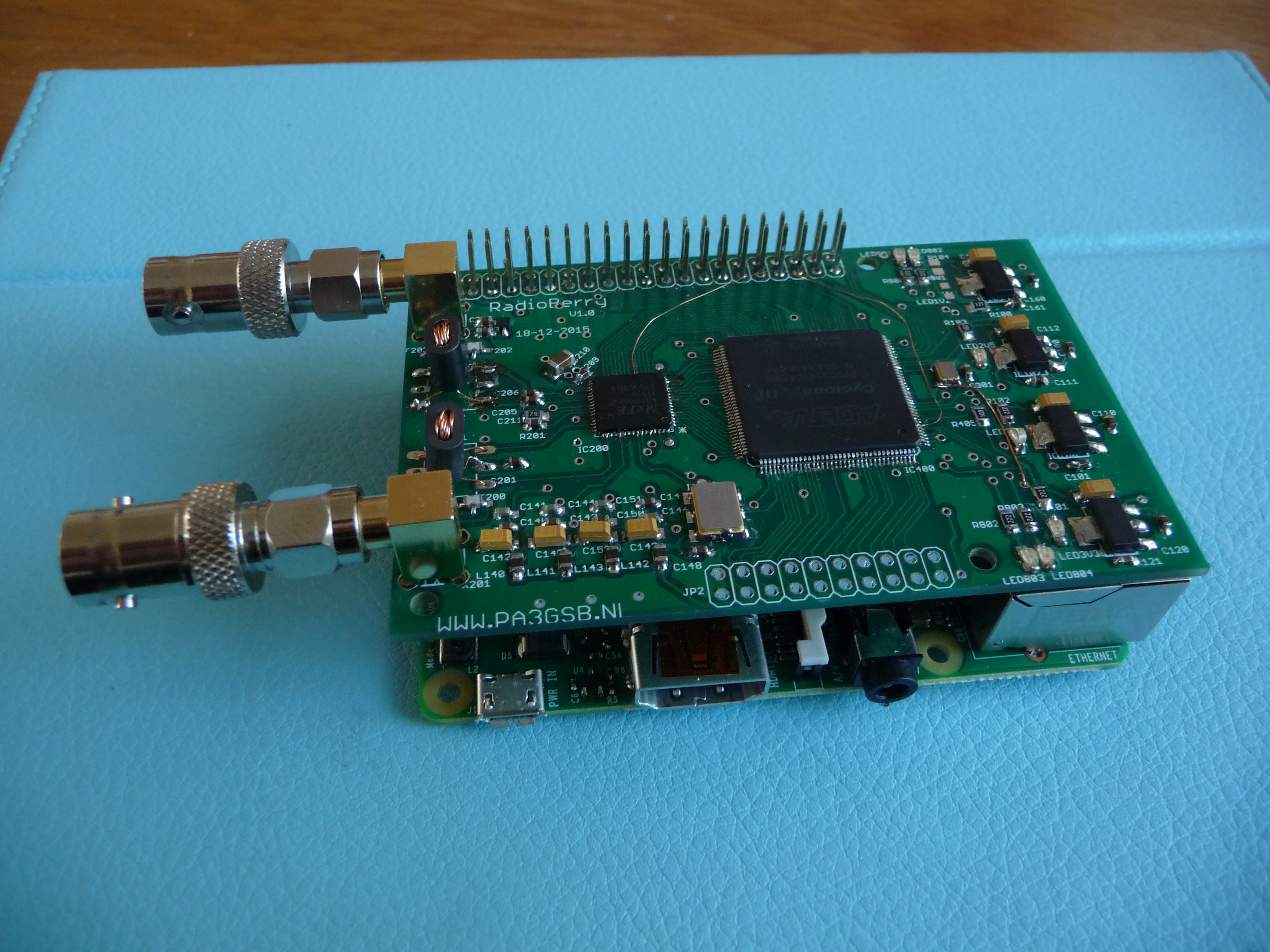

RadioBerry, from the project README
From the project README

Main components on the RadioBerry

LD1117S33LD1117S25LD1117S12AD9866SI57010MHzEP3C25E144

RadioBerry bill of materials (BOM)

114 components, 29 distinct parts.

QtyPartRefs
2
LD1117S33
IC100, IC101
1
LD1117S25
IC102
1
LD1117S12
IC103
1
AD9866
IC200
1
SI570
IC300
1
10MHz
IC301
1
EP3C25E144
IC400
2
BU-SMA-H
X201, X202
4
—
@HOLE0, @HOLE1, @HOLE2, @HOLE3
4
~
F200, F201, F202, F203
1
2x20
JP1
1
2x10
JP2
2
BN-61-2402
T201, T202
6
RED
LED1V2, LED2V5, LED3V3A805, LED3V3B805, LED801, LED802
2
GREEN
LED803, LED804
1
~
D1
5
FB
L1, L140, L141, L142, L143
48
100n
C100, C101, C110, C111, C113, C114, C115, C116 +40
4
100uF
C102, C112, C122, C162
5
10n
C140, C143, C146, C150, C301
Show 9 more
QtyPartRefs
4
10uF
C142, C145, C149, C152
1
10uF
C210
1
120R
R100
6
2k2
R101, R102, R800, R801, R802, R803
2
1K
R103, R104
1
1K6
R201
2
0
R202, R203
2
4K7
R301, R302
2
10K
R404, R405

RadioBerry design files

The KiCad project lives in the pa3gsb/RadioBerry repository on GitHub; these links point at the commit this page was built from.

RadioBerry: common questions

How big is the RadioBerry PCB?

The RadioBerry measures 85.3 × 56 mm and is 1.6 mm thick.

How many components are on the RadioBerry?

114 components, from 29 distinct parts. The full bill of materials is listed on this page.

Where can I download the RadioBerry design files?

From the pa3gsb/RadioBerry repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the RadioBerry design in my own project?

The repository has no license, so all rights stay with pa3gsb. Use it as a reference, and ask the author before reusing the design.
