StroomMeterACS712 PCB layout, top view — open source ESP8266 board by pappavis

About the StroomMeterACS712 PCB

StroomMeterACS712 is an open source ESP8266 PCB design by pappavis, published on GitHub. It is a 2-layer board measuring 101.9 × 38.1 mm, with 18 components from 15 distinct parts.

Its main chip is the WeMos_D1_mini, from the ESP8266 family. Other key parts include the PCF8574A. By type, the board carries 6 connectors, 4 resistors, 2 ICs, 2 transistors, 2 switches and 1 relay.

It belongs with the iot & wireless designs in this gallery.

From the project

Measure AC power usage using ESP8266 and ACS712

Measure AC power usage using ESP8266 and ACS712

Je kunt van Aliexpress bestellen die in één pakketje worden opgestuurd.

Tip: PCB gcode voor jouw CNC machine kunt je genereren voor met Flatcam.org

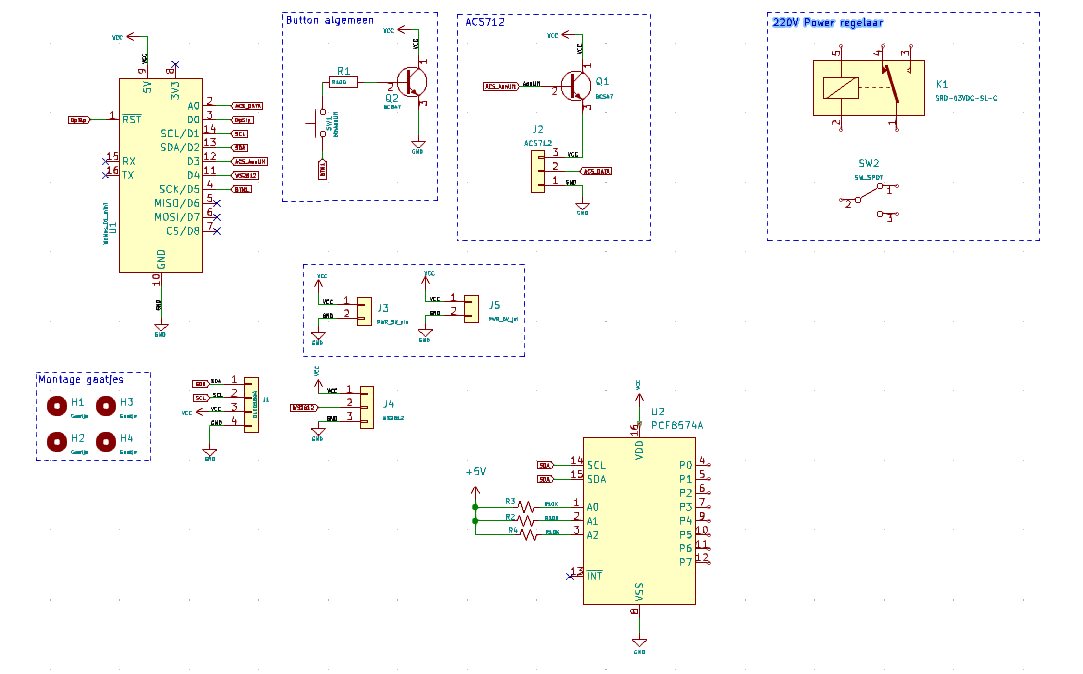

StroomMeterACS712, from the project README
From the project README

Main components on the StroomMeterACS712

WeMos_D1_miniPCF8574A

StroomMeterACS712 bill of materials (BOM)

18 components, 15 distinct parts.

QtyPartRefs
1
WeMos_D1_mini
U1
1
PCF8574A
U2
2
BC547
Q1, Q2
1
OLED1604
J1
1
ACS712
J2
1
PWR_5V_pin
J3
1
WS2812
J4
1
PWR_5V_jst
J5
1
230V_in
J6
1
SRD-03VDC-SL-C_Relay
K1
1
HLK-PM01_220V
PS1
1
btnAanUit
SW1
1
SW_SPDT
SW2
1
R100
R1
3
R10K
R2, R3, R4

StroomMeterACS712 design files

The KiCad project lives in the pappavis/StroomMeterACS712 repository on GitHub; these links point at the commit this page was built from.

StroomMeterACS712: common questions

What microcontroller does the StroomMeterACS712 use?

The StroomMeterACS712 is built around the WeMos_D1_mini, from the ESP8266 family.

How big is the StroomMeterACS712 PCB?

The StroomMeterACS712 measures 101.9 × 38.1 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the StroomMeterACS712?

18 components, from 15 distinct parts. The full bill of materials is listed on this page.

Where can I download the StroomMeterACS712 design files?

From the pappavis/StroomMeterACS712 repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the StroomMeterACS712 design in my own project?

The repository has no license, so all rights stay with pappavis. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the StroomMeterACS712 without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug ESP8266 firmware against it before you order a PCB.
