Klingel hass

paulin1C·klingel_hass·kicad/klingel.kicad_pcb

Klingel hass PCB layout, top view — open source ESP8266 board by paulin1C

About the Klingel hass PCB

Klingel hass is an open source ESP8266 PCB design by paulin1C, published on GitHub. It is a 2-layer board measuring 82 × 97.2 mm, with 43 components from 19 distinct parts.

Its main chip is the WeMos_D1_mini, from the ESP8266 family. Other key parts include the AMS1117-1.5 and PC817. By type, the board carries 11 diodes, 10 resistors, 6 connectors, 5 ICs, 5 capacitors and 3 transistors.

It belongs with the iot & wireless designs in this gallery.

From the project

PCB and code for a small board that intercepts the bell wiring and allows muting and remote door opening.

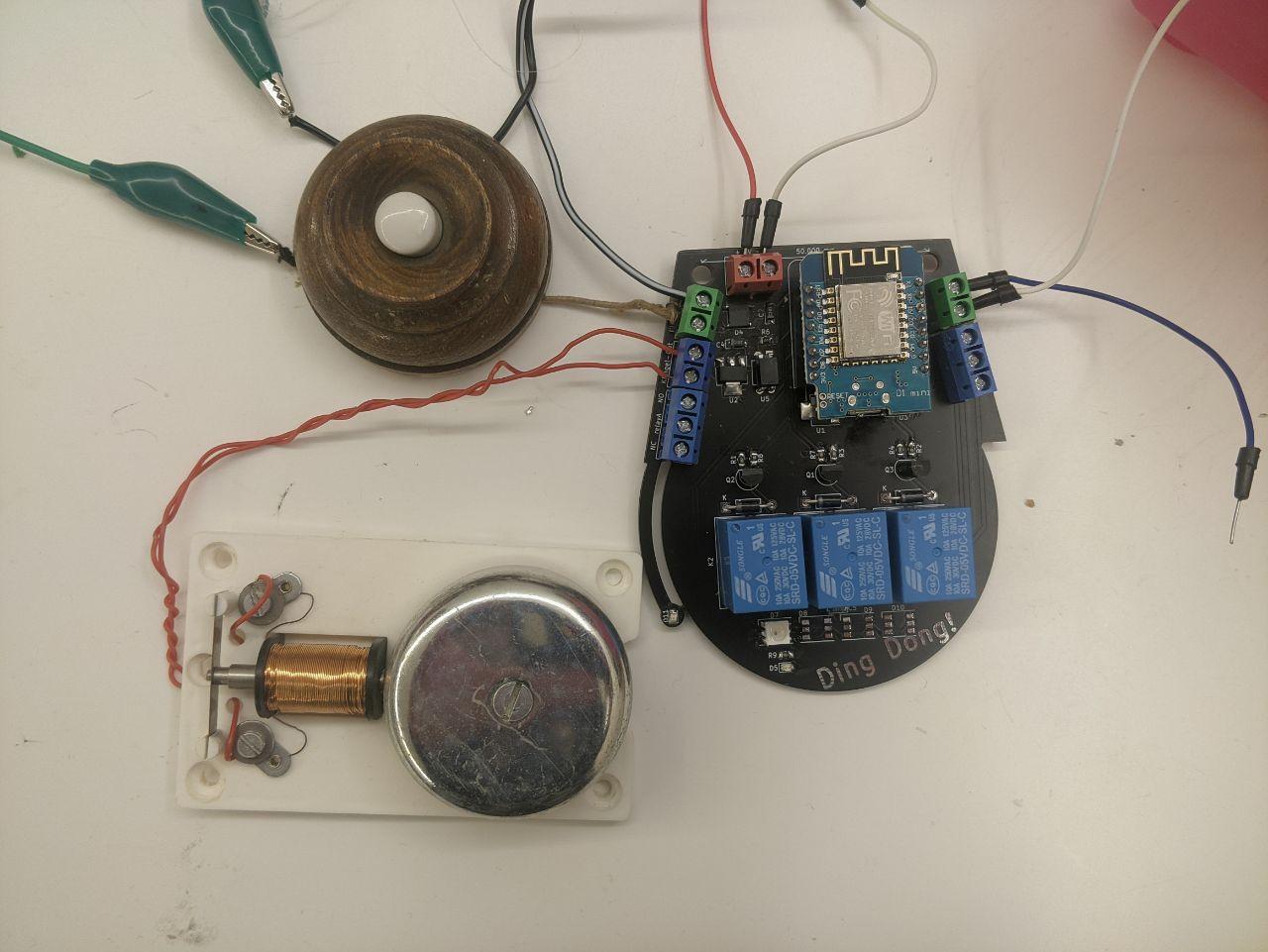

Klingel hass, from the project README
From the project README

Main components on the Klingel hass

AMS1117-1.5WeMos_D1_miniPC817

Klingel hass bill of materials (BOM)

43 components, 19 distinct parts.

QtyPartRefs
2
AMS1117-1.5
U1, U2
1
WeMos_D1_mini
U3
2
PC817
U4, U5
3
BC547
Q1, Q2, Q3
1
relayA
J1
1
sense
J2
1
relayB
J3
1
bell-in
J4
1
bell-out
J5
1
5V
J6
3
SANYOU_SRD_Form_C
K1, K2, K3
3
1N4007
D1, D2, D6
2
ABS10
D3, D4
2
LED
D5, D11
4
WS2812
D7, D8, D9, D10
5
10µF
C1, C2, C3, C4, C5
3
10K
R1, R3, R4
5
1K
R2, R7, R8, R9, R12
2
5
R5, R6

Klingel hass design files

The KiCad project lives in the paulin1C/klingel_hass repository on GitHub; these links point at the commit this page was built from.

Klingel hass: common questions

What microcontroller does the Klingel hass use?

The Klingel hass is built around the WeMos_D1_mini, from the ESP8266 family.

How big is the Klingel hass PCB?

The Klingel hass measures 82 × 97.2 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Klingel hass?

43 components, from 19 distinct parts. The full bill of materials is listed on this page.

Where can I download the Klingel hass design files?

From the paulin1C/klingel_hass repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the Klingel hass design in my own project?

The repository has no license, so all rights stay with paulin1C. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the Klingel hass without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug ESP8266 firmware against it before you order a PCB.
