Pegoku badge
About the Pegoku badge PCB

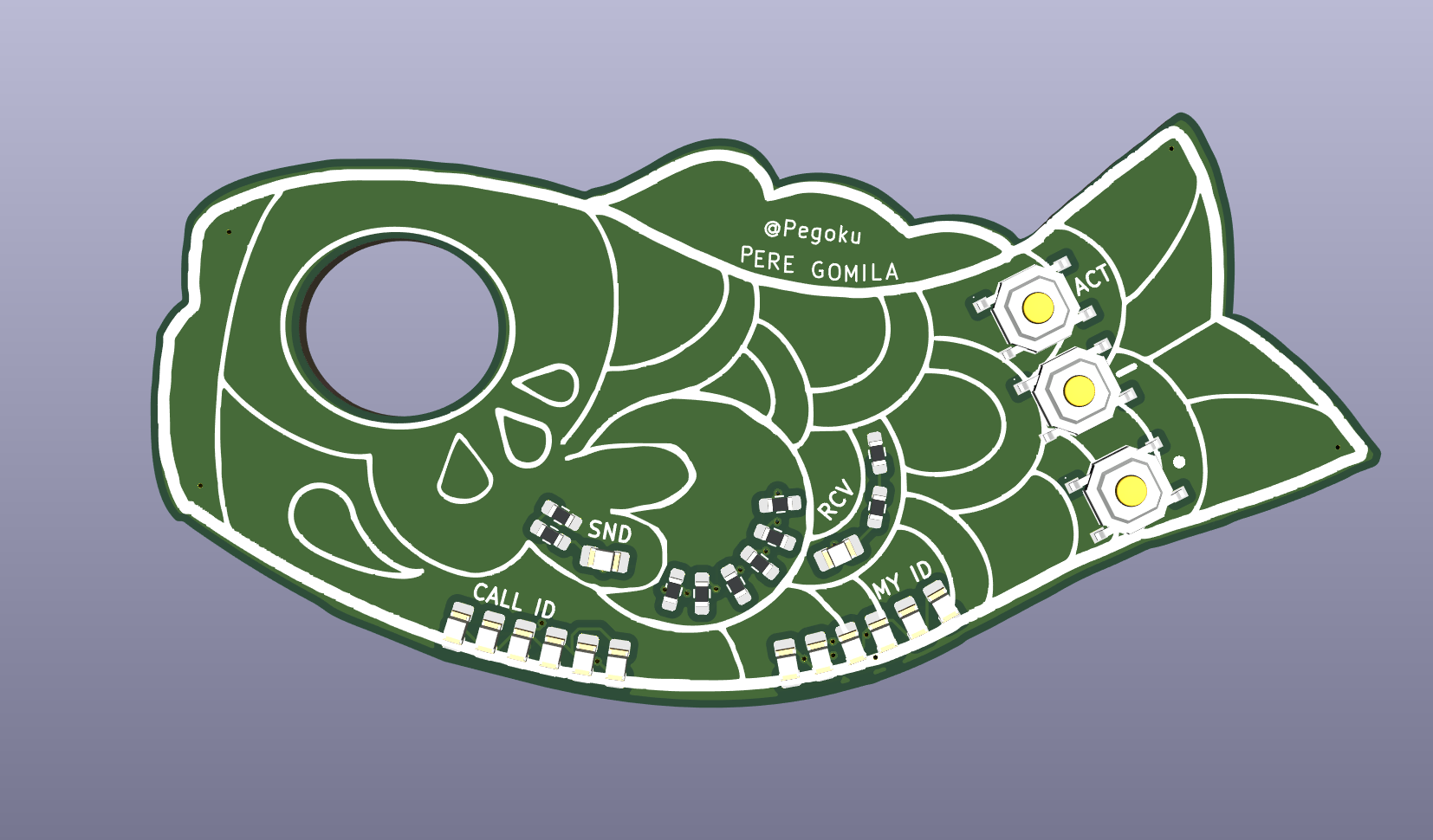

Pegoku badge is an open source ESP32 PCB design by Pegoku, published on GitHub. It is a 2-layer board measuring 81.7 × 39.6 mm, with 28 components from 4 distinct parts.
Its main chip is the XIAO-ESP32-C3-DIP, from the ESP32 family. By type, the board carries 14 diodes, 10 resistors, 3 switches and 1 IC.
It belongs with the wearables designs in this gallery.
From the project
cool badge
ESP32-C3 based boards that connect to each other and let you send and receive messages using ESPNOW.
Main components on the Pegoku badge
Pegoku badge bill of materials (BOM)
28 components, 4 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | XIAO-ESP32-C3-DIP | XIAO-ESP32C3-SMD | U1 |
| 3 | TS-1187A-B-A-B XKB Connection(中国星坤) | SW-SMD_4P-L5.1-W5.1-P3.70-LS6.5-TL_H1.5 | SW1, SW2, SW3 |
| 14 | LED | LED_0805_2012Metric_Pad1.15x1.40mm_HandSolder | D1, D2, D3, D4, D5, D6, D7, D8 +6 |
| 10 | 100R | R_0603_1608Metric_Pad0.98x0.95mm_HandSolder | R1, R2, R3, R4, R5, R6, R7, R8 +2 |
Pegoku badge design files
The KiCad project lives in the Pegoku/fallout-badge repository on GitHub; these links point at the commit this page was built from.
Pegoku badge: common questions
What microcontroller does the Pegoku badge use?
The Pegoku badge is built around the XIAO-ESP32-C3-DIP, from the ESP32 family.
How big is the Pegoku badge PCB?
The Pegoku badge measures 81.7 × 39.6 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Pegoku badge?
28 components, from 4 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Pegoku badge design files?
From the Pegoku/fallout-badge repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the Pegoku badge design in my own project?
The repository has no license, so all rights stay with Pegoku. Use it as a reference, and ask the author before reusing the design.
Can I test firmware for the Pegoku badge without the hardware?
Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug ESP32 firmware against it before you order a PCB.
