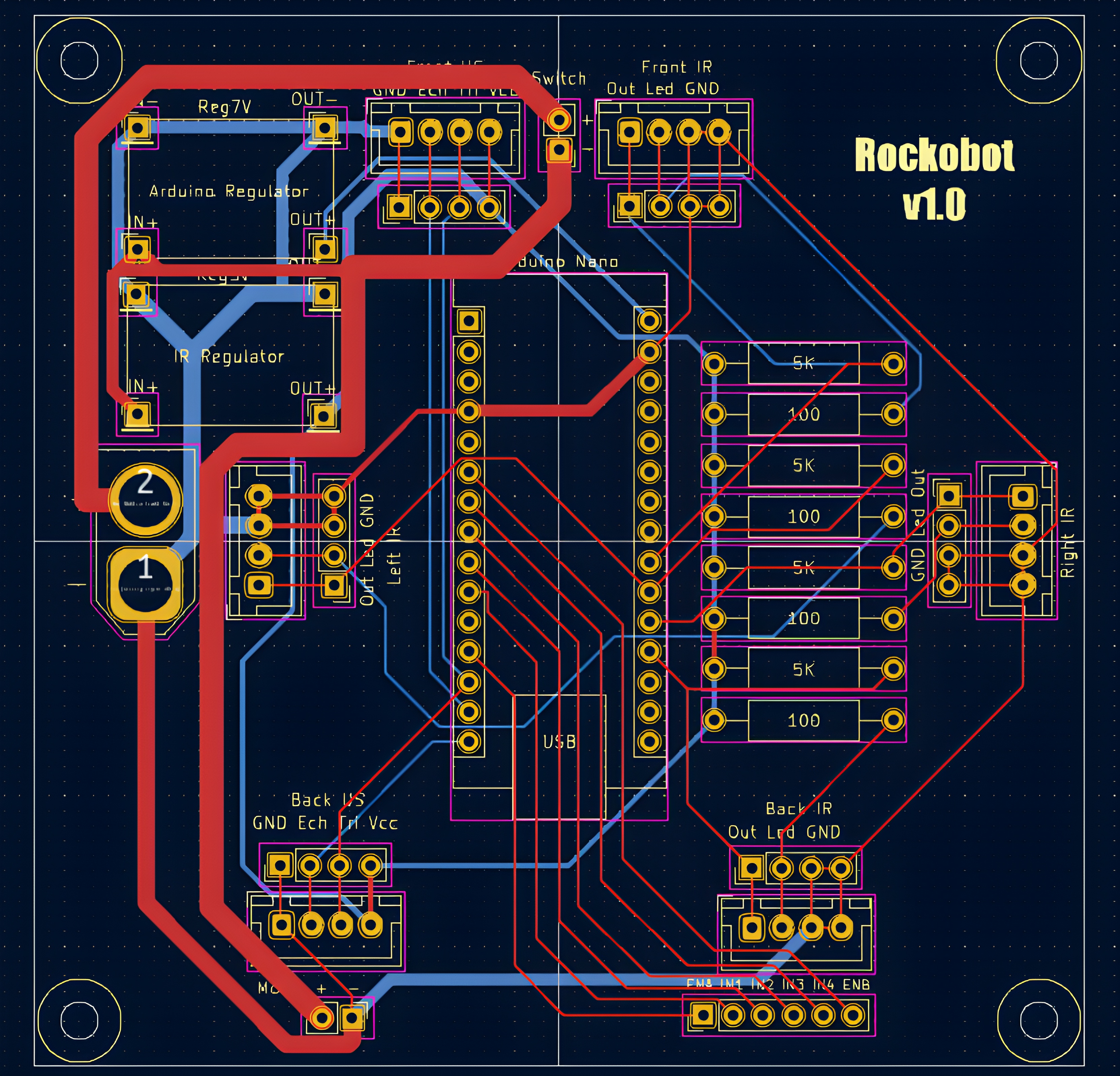

Rockobot PCB layout, top view — open source board by Pelochus

About the Rockobot PCB

Rockobot is an open source PCB design by Pelochus, published on GitHub under the GPL-3.0 license. It is a 2-layer board measuring 88.9 × 88.9 mm, with 8 components from 4 distinct parts.

It belongs with the robotics & motion, power & battery and sensors designs in this gallery.

From the project

Robot made for SMP subject in UGR

We can see these components: - Various connectors, including male 2.54 pins, JSTXH 2.54 for the sensors and XT60 male for the battery - Resistors for the IR sensors - 2 voltage regulators, one will be exclusively for the Arduino (needs more than 7V, max 12V, the Vin pin will do the rest) and the other for the sensors (both infrarred and US) at 5 volts - Arduino NANO itself

Rockobot, from the project README
From the project README

Rockobot bill of materials (BOM)

8 components, 4 distinct parts.

QtyPartRefs
1
5K
5K
1
100
100
1
Conn_01x06_Socket
ENA IN1 IN2 IN3 IN4 ENB
5
Conn_01x04_Socket
IR_Back2, IR_Front2, IR_Right2, US_Back2, US_Front2

Rockobot design files

The KiCad project lives in the Pelochus/rockobot repository on GitHub; these links point at the commit this page was built from.

Rockobot: common questions

How big is the Rockobot PCB?

The Rockobot measures 88.9 × 88.9 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Rockobot?

8 components, from 4 distinct parts. The full bill of materials is listed on this page.

Where can I download the Rockobot design files?

From the Pelochus/rockobot repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the Rockobot design in my own project?

Yes, under the terms of its GPL-3.0 license, which Pelochus chose for the repository.
