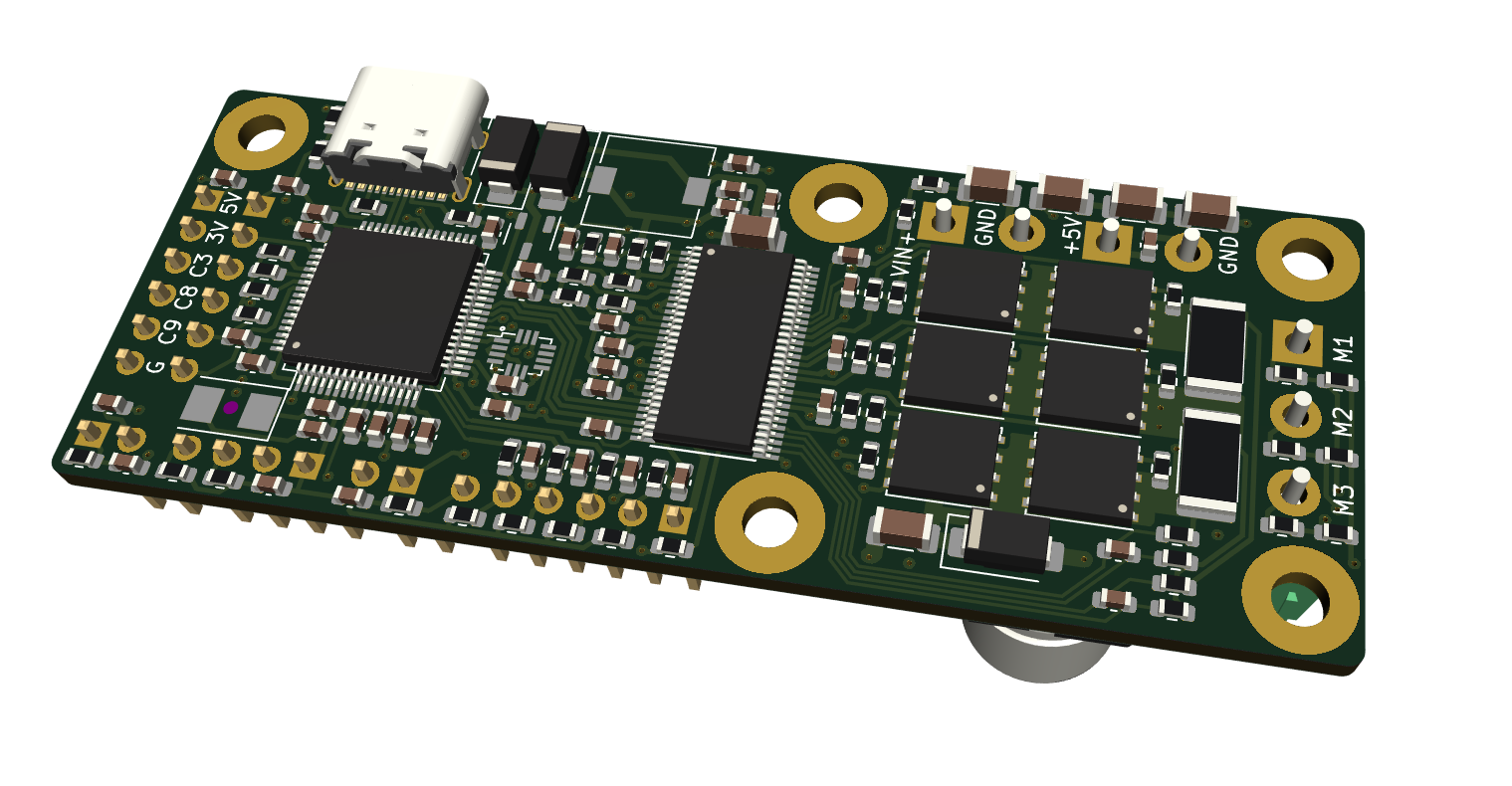

Ebike controller pcb compact layout, top view — open source STM32 board by PetteriAimonen

About the Ebike controller pcb compact

Ebike controller pcb compact is an open source STM32 PCB design by PetteriAimonen, published on GitHub. It is a 4-layer board measuring 77 × 30 mm, with 143 components from 41 distinct parts.

Its main chip is the STM32F40X_LQFP64, from the STM32 family. Other key parts include the DRV8302, LSM6DS3, MICROSD and XC6206PXXXMR. By type, the board carries 60 capacitors, 54 resistors, 10 connectors, 6 transistors, 6 diodes and 5 ICs.

It belongs with the robotics & motion designs in this gallery.

From the project

Custom e-bike controller based on VESC4

Custom E-bike controller based on VESC 4.10 ===========================================

Customized version of Benjamin Vedder's VESC for driving BLDC motors.

VESC Hardware is licensed under the Creative Commons Attribution-ShareAlike 4.0 International License. To view a copy of this license, visit http://creativecommons.org/licenses/by-sa/4.0/.

Can use either VESC firmware or my custom firmware.

Ebike controller pcb compact, from the project README
From the project README

Main components on the Ebike controller pcb compact

STM32F40X_LQFP64DRV8302LSM6DS3MICROSDXC6206PXXXMR

Ebike controller pcb compact bill of materials (BOM)

143 components, 41 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
STM32F40X_LQFP64
U1
1
DRV8302
U3
1
LSM6DS3
U4
1
N/A
MICROSD
U5
1
XC6206PXXXMR
XC6206PxxxMR
U6
6
BSC030N08NS5
Q1, Q2, Q3, Q4, Q5, Q6
1
8MHZ
8MHz
Y1
1
N/A
Motor
J1
1
5V_OUT
J2
1
40V_IN
J3
1
USB_C_RECEPTACLE_USB2.0
USB_C_Receptacle_USB2.0
J401
1
N/A
HALL/Encoder
P1
1
N/A
SWD
P2
1
N/A
OLED
P11
1
N/A
BRAKE
P12
1
N/A
BUTTONS
P13
1
N/A
EXTENSION
P14
1
N/A
GREEN
D1
1
N/A
RED
D2
1
LED
D3
Show 21 more
QtyPartRefs
1
C14996
Schottky
D4
1
SMAJ5
D5
1
SMAJ48
D7
1
22U
22u
L1
16
4.7UF
4.7uF
C1, C3, C8, C16, C17, C18, C20, C23 +8
14
100NF
100nF
C2, C11, C12, C13, C22, C27, C28, C29 +6
10
4.7NF
4.7nF
C4, C5, C6, C7, C21, C34, C36, C501 +2
13
C354362
1uF,100V
C9, C37, C39, C40, C43, C44, C49, C50 +5
3
22PF
22pF
C15, C19, C38
1
N/A
470µF
C33
3
N/A
100uF,63V
C57, C58, C59
1
C162670
NTC 10k
R1
4
10K
10k
R2, R19, R20, R44
7
39K
39k
R3, R23, R26, R30, R32, R36, R46
14
2K2
2k2
R4, R7, R11, R12, R13, R14, R15, R16 +6
12
4K7
4k7
R6, R8, R9, R10, R39, R40, R41, R401 +4
1
12K
12k
R17
1
220K
220k
R21
6
4R7
R28, R29, R34, R35, R42, R43
6
100R
R37, R38, R48, R49, R50, R51
2
5m
R53, R54

Ebike controller pcb compact design files

The KiCad project lives in the PetteriAimonen/ebike-controller-pcb-compact repository on GitHub; these links point at the commit this page was built from.

Ebike controller pcb compact: common questions

What microcontroller does the Ebike controller pcb compact use?

The Ebike controller pcb compact is built around the STM32F40X_LQFP64, from the STM32 family.

How big is the Ebike controller pcb compact?

The Ebike controller pcb compact measures 77 × 30 mm, has 4 copper layers and is 1.6 mm thick.

How many components are on the Ebike controller pcb compact?

143 components, from 41 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Ebike controller pcb compact design files?

From the PetteriAimonen/ebike-controller-pcb-compact repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Ebike controller pcb compact design in my own project?

The repository has no license, so all rights stay with PetteriAimonen. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the Ebike controller pcb compact without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug STM32 firmware against it before you order a PCB.
