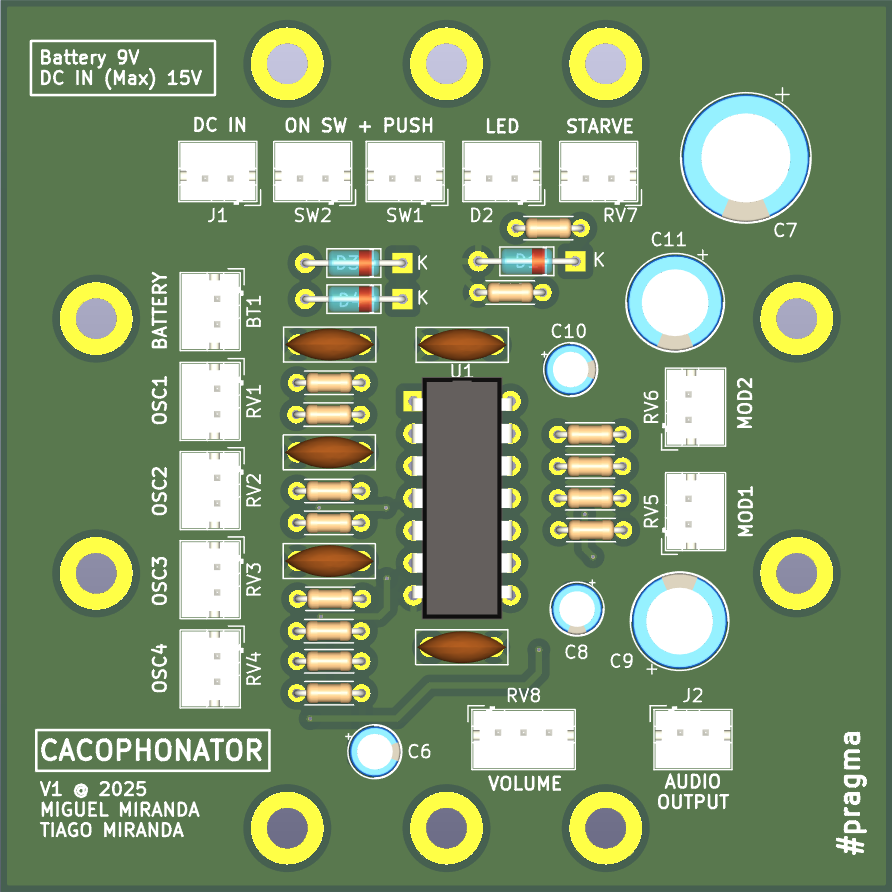

Cacophonator PCB layout, top view — open source board by phastmike

About the Cacophonator PCB

Cacophonator is an open source PCB design by phastmike, published on GitHub. It is a 2-layer board measuring 70 × 70 mm, with 43 components from 22 distinct parts.

Other key parts include the 40106. By type, the board carries 14 resistors, 11 capacitors, 4 diodes, 2 connectors, 2 switches and 1 IC.

It belongs with the audio designs in this gallery.

From the project

Cacophonator KiCad project

This repository contains the KiCad project of a try at recreating an instance of the cacophonator by Arthur Harrison.

- Using THT (Through-hole) components - Designed for JSL 166x116x70mm Box

- Added a potentiometer to control the output amplitude (volume) - Should be a logaritmic (log) potentiometer - Added DC Input jack with diodes for multiple, concurrent, power sources - Battery (9V) - DC IN (9 or 12V))

Cacophonator, from the project README
From the project README

Main components on the Cacophonator

40106

Cacophonator bill of materials (BOM)

43 components, 22 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
40106
U1
1
Jack-DC
J1
1
AUDIO OUTPUT
J2
1
9V
BT1
6
1M
RV1, RV2, RV3, RV4, RV5, RV6
1
10K
10k
RV7
1
100k log
RV8
1
POWER
SW1
1
CHARGE
SW2
1
MUR210G*
D1
1
LED
D2
2
1N4004*
D3, D4
2
2200PF
2200pF
C1, C2
3
0.01UF
0.01uF
C3, C4, C5
1
22UF
22uF
C6
1
2200UF
2200uF
C7
2
4.7UF
4.7uF
C8, C10
2
22UF
22uF
C9, C11
10
10K
10k
R1, R2, R3, R4, R5, R6, R7, R8 +2
1
22
R10
Show 2 more
QtyPartRefs
2
100
R12, R14
1
560
R15

Cacophonator design files

The KiCad project lives in the phastmike/cacophonator repository on GitHub; these links point at the commit this page was built from.

Cacophonator: common questions

How big is the Cacophonator PCB?

The Cacophonator measures 70 × 70 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Cacophonator?

43 components, from 22 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Cacophonator design files?

From the phastmike/cacophonator repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Cacophonator design in my own project?

The repository has no license, so all rights stay with phastmike. Use it as a reference, and ask the author before reusing the design.
