OpenSTM32F4 LQFP64

phonght32·openSTM32F4_LQFP64

OpenSTM32F4 LQFP64 PCB layout, top view — open source STM32 board by phonght32
Simulate this board

About the OpenSTM32F4 LQFP64 PCB

OpenSTM32F4 LQFP64 is an open source STM32 PCB design by phonght32, published on GitHub under the MIT license. It is a 2-layer board measuring 54 × 68 mm, with 77 components from 33 distinct parts.

Its main chip is the STM32F405RGTx, from the STM32 family. Other key parts include the TPS5430DDA, AMS1117-3.3, MPU-9250, CP2102N and outline. By type, the board carries 26 capacitors, 18 connectors, 16 resistors, 7 diodes, 6 ICs and 2 switches.

It belongs with the sensors and usb & debug tools designs in this gallery.

From the project

openSTM32 board using STM32F4 LQFP64 package. This board designed to perform base control for SLAM and Navigation.There are also many availabe connectors that meet many other application requirements.

Everything about this board: schematic, PCB gerber and BOM are free to distribute under open-source license for users.

The STM32F4 series chip inside openSTM32 board is based on ARM Cortex-M4 with floating point unit (FPU).

This board auto select power supply when both USB and jackDC are powered.

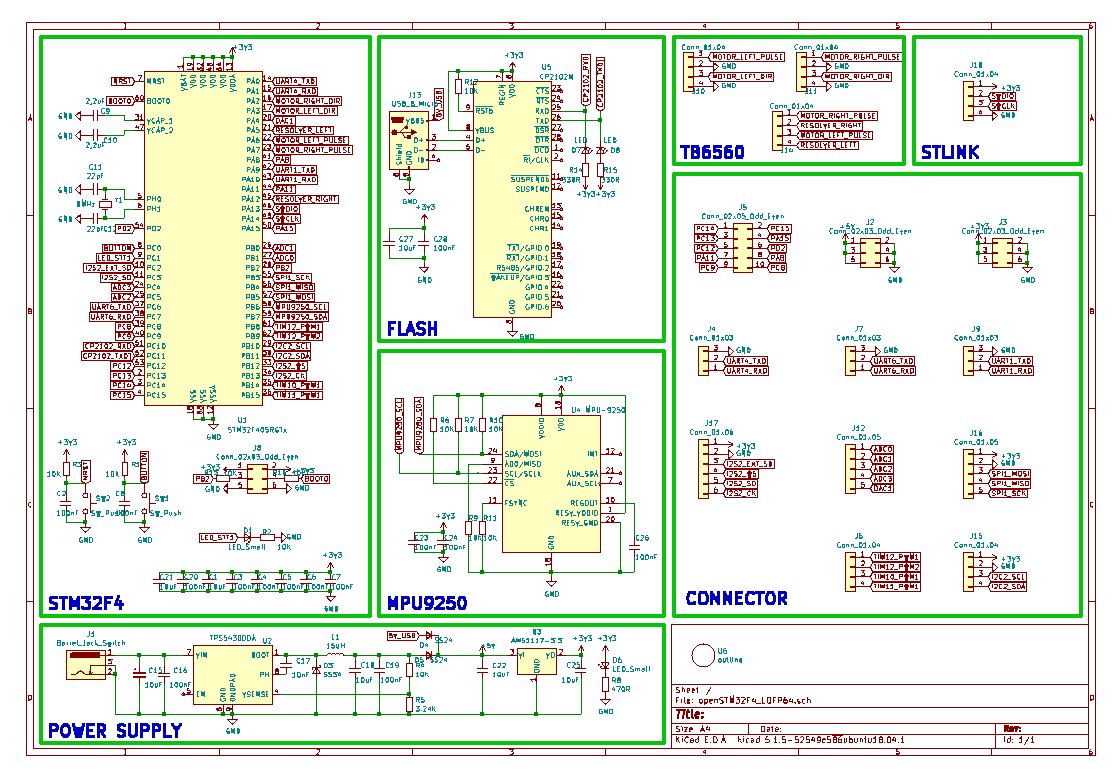

OpenSTM32F4 LQFP64, from the project README
From the project README

Main components on the OpenSTM32F4 LQFP64

STM32F405RGTxTPS5430DDAAMS1117-3.3MPU-9250CP2102Noutline

OpenSTM32F4 LQFP64 bill of materials (BOM)

77 components, 33 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
STM32F405RGTx
U1
1
TPS5430DDA
U2
1
AMS1117-3.3
U3
1
MPU-9250
U4
1
CP2102N
U5
1
outline
U6
1
8MHz
Y1
1
Barrel_Jack_Switch
J1
3
Conn_02x03_Odd_Even
J2, J3, J8
3
Conn_01x03
J4, J7, J9
1
Conn_02x05_Odd_Even
J5
4
Conn_01x04
J6, J10, J11, J15
2
Conn_01x05
J12, J16
1
USB_B_Micro
J13
2
Conn_01x04
J14, J18
1
Conn_01x06
J17
2
SW_Push
SW1, SW2
2
LED_Small
D1, D6
1
SS34
D3
2
SS24
D4, D5
Show 13 more
QtyPartRefs
2
LED
D7, D8
1
15uH
L1
4
10uF
C1, C21, C22, C27
14
100nF
C2, C3, C4, C5, C6, C7, C8, C16 +6
2
2,2uF
C9, C10
2
22pF
C11, C12
1
10uF
C15
1
10nF
C17
2
10uF
C18, C25
12
10K
R1, R2, R3, R4, R6, R7, R9, R10 +4
1
3.24K
R5
1
470R
R8
2
330R
R14, R15

OpenSTM32F4 LQFP64 design files

The KiCad project lives in the phonght32/openSTM32F4_LQFP64 repository on GitHub; these links point at the commit this page was built from.

OpenSTM32F4 LQFP64: common questions

What microcontroller does the OpenSTM32F4 LQFP64 use?

The OpenSTM32F4 LQFP64 is built around the STM32F405RGTx, from the STM32 family.

How big is the OpenSTM32F4 LQFP64 PCB?

The OpenSTM32F4 LQFP64 measures 54 × 68 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the OpenSTM32F4 LQFP64?

77 components, from 33 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the OpenSTM32F4 LQFP64 design files?

From the phonght32/openSTM32F4_LQFP64 repository on GitHub, which has the KiCad layout and the BOM; the links under Design files point to each one.

Can I use the OpenSTM32F4 LQFP64 design in my own project?

Yes, under the terms of its MIT license, which phonght32 chose for the repository.

Can I test firmware for the OpenSTM32F4 LQFP64 without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug STM32 firmware against it before you order a PCB.
