Rc-256page

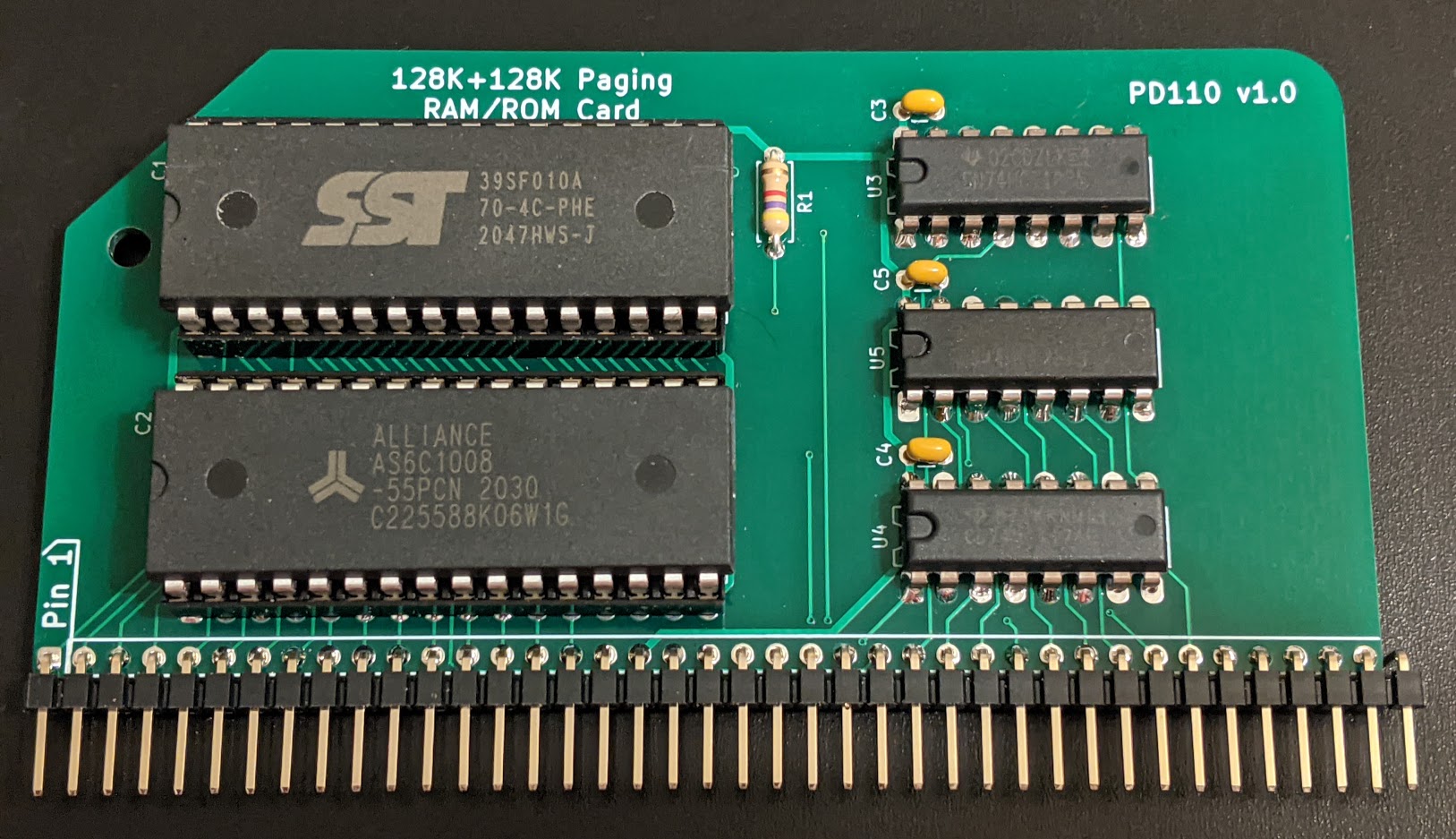

About the Rc-256page PCB
Rc-256page is an open source PCB design by PickledDog, published on GitHub under the Apache-2.0 license. It is a 2-layer board measuring 99.1 × 49.9 mm, with 12 components from 8 distinct parts.
Other key parts include the SST39SF010, AS6C1008, 74HCT138, 74HCT174 and 74HCT257. By type, the board carries 5 ICs, 5 capacitors, 1 connector and 1 resistor.
From the project
128K+128K fully pageable RAM/ROM card for RC2014
The specified parts are just the ones I used, and can be substituted as needed - Mouser links provided for convenience and reference.
Main components on the Rc-256page
Rc-256page bill of materials (BOM)
12 components, 8 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | SST39SF010 | DIP-32_W15.24mm_LongPads | U1 |
| 1 | AS6C1008 | DIP-32_W15.24mm_LongPads | U2 |
| 1 | 74HCT138 | DIP-16_W7.62mm_LongPads | U3 |
| 1 | 74HCT174 | DIP-16_W7.62mm_LongPads | U4 |
| 1 | 74HCT257 | DIP-16_W7.62mm_LongPads | U5 |
| 1 | RC2014 | PinHeader_1x39_P2.54mm_Vertical | J1 |
| 5 | 0.1uF | C_Disc_D3.0mm_W1.6mm_P2.50mm | C1, C2, C3, C4, C5 |
| 1 | 4k7 | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal | R1 |
Rc-256page design files
The KiCad project lives in the PickledDog/rc-256page repository on GitHub; these links point at the commit this page was built from.
- Layoutrc-256page.kicad_pcb
- BOMREADME.md
Rc-256page: common questions
How big is the Rc-256page PCB?
The Rc-256page measures 99.1 × 49.9 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Rc-256page?
12 components, from 8 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Rc-256page design files?
From the PickledDog/rc-256page repository on GitHub, which has the KiCad layout and the BOM; the links under Design files point to each one.
Can I use the Rc-256page design in my own project?
Yes, under the terms of its Apache-2.0 license, which PickledDog chose for the repository.
