Hall-Sensor-Board
About the Hall-Sensor-Board
Hall-Sensor-Board is an open source PCB design by PickleWorks-Design, published on GitHub under the Custom license license. It is a 2-layer board measuring 28.6 × 72.6 mm, with 11 components from 5 distinct parts.
Other key parts include the TLE4945LHALA1. By type, the board carries 3 ICs, 3 capacitors, 3 resistors and 1 connector.
It belongs with the sensors designs in this gallery.
From the project

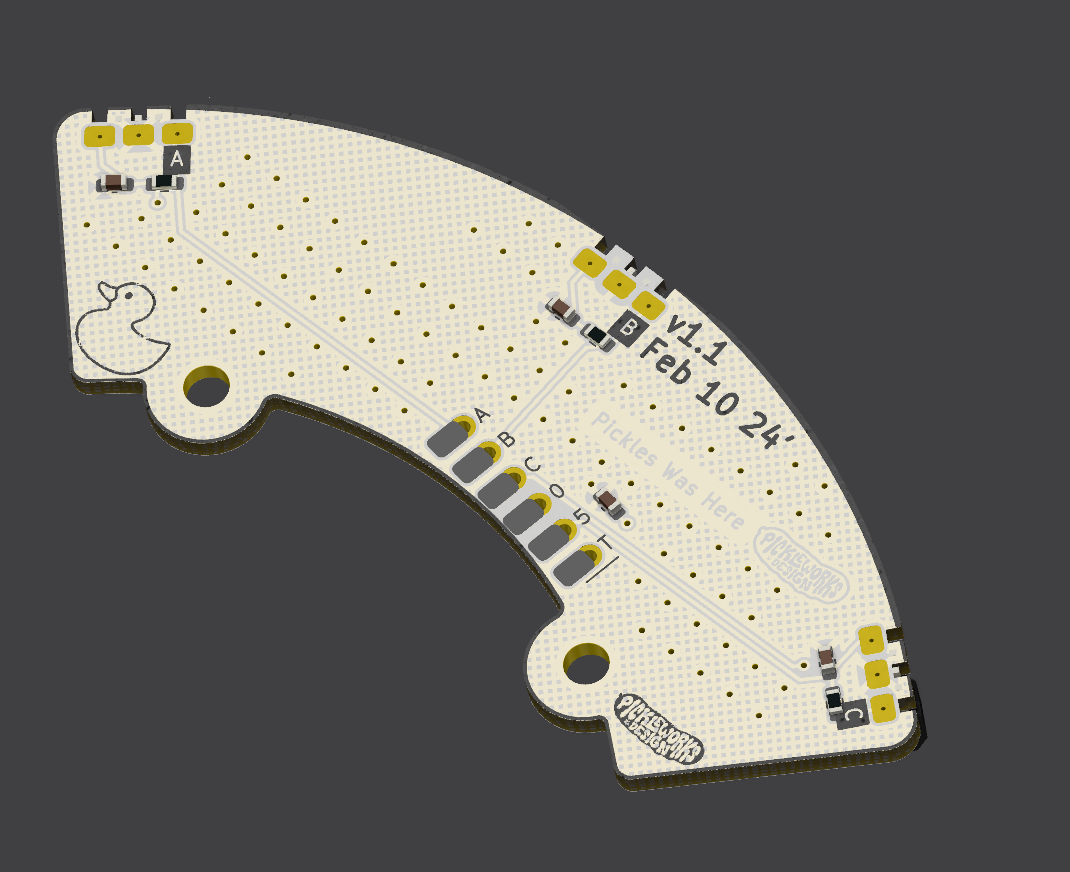

This board is for anyone who has a motor with a busted hall sensor board that needs fixing
Manufacturing has been set up for JLCPCB assembly service
Required files are included in the production folder
Main components on the Hall-Sensor-Board
Hall-Sensor-Board bill of materials (BOM)
11 components, 5 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 3 | TLE4945LHALA1 | TLE4945LHALA1 | U1, U2, U3 |
| 1 | CONN_01X06 Conn_01x06 | hall_connector | J1 |
| 1 | C338606 Thermistor_NTC | C_0603_1608Metric | TH1 |
| 3 | C53987 C_Small | C_0603_1608Metric | C1, C2, C3 |
| 3 | 3K3 3k3 | R_0603_1608Metric | R1, R2, R3 |
Hall-Sensor-Board design files
The KiCad project lives in the PickleWorks-Design/Hall-Sensor-Board repository on GitHub; these links point at the commit this page was built from.
Hall-Sensor-Board: common questions
How big is the Hall-Sensor-Board?
The Hall-Sensor-Board measures 28.6 × 72.6 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Hall-Sensor-Board?
11 components, from 5 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Hall-Sensor-Board design files?
From the PickleWorks-Design/Hall-Sensor-Board repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the Hall-Sensor-Board design in my own project?
It is published under Custom license, which limits how it may be reused; read the license before building on it.
