SensorPod-Board

plb500·AutoBloomer-SensorModules·hardware/SensorPod/PCB/SensorPod-Board.kicad_pcb

SensorPod-Board layout, top view — open source RP2040/RP2350 board by plb500

About the SensorPod-Board

SensorPod-Board is an open source RP2040/RP2350 PCB design by plb500, published on GitHub. It is a 2-layer board measuring 13.3 × 31 mm, with 17 components from 14 distinct parts.

Its main chip is the Pico W, from the RP2040/RP2350 family. Other key parts include the SCD30 and LM1117-3.3. By type, the board carries 5 connectors, 3 ICs, 3 capacitors, 3 resistors, 2 diodes and 1 transistor.

It belongs with the iot & wireless and sensors designs in this gallery.

From the project

Code and PCB designs for AutoBloomer MQTT sensor modules

Full plans and code for a sensor controller capable of publishing multiple sensor data via MQTT

PCB schematics (KiCad format), plans plus any 3D prints/CNC files for the different hardware platforms are here

Under the hood the sensor modules use Raspberry Pico Ws to communicate with an MQTT broker and transmit data it collates from the following sensors: - SCD30 environmental sensor (link) - Stemma soil sensor (link) - Battery voltage (for Raspberry Pi RTC) (uses an ADC pin on the Pico and custom circuitry on the HIB) - Sonar (feed level) sensors (Currently using A02YYUW sonars - link)

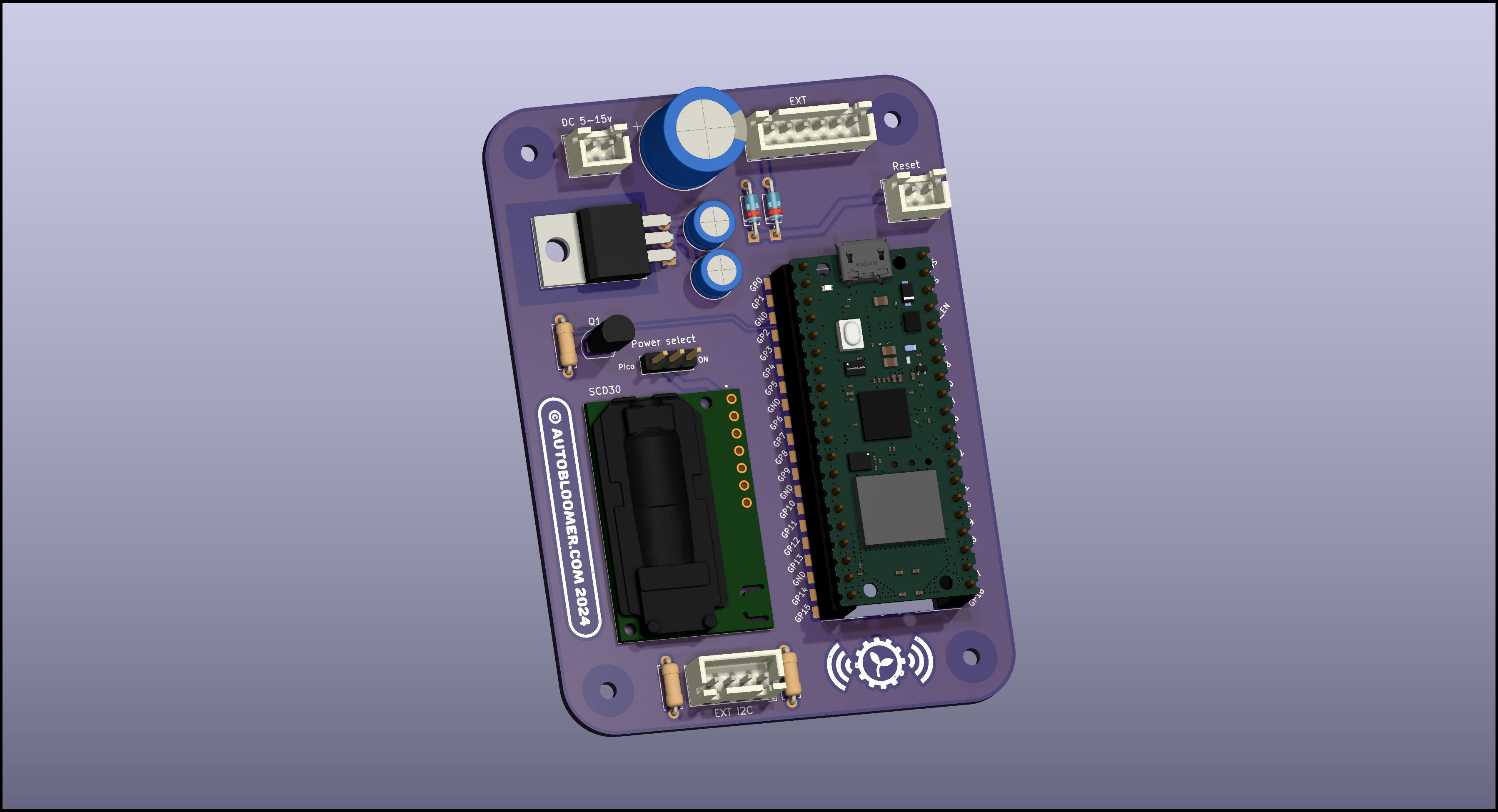

SensorPod-Board, from the project README
From the project README

Main components on the SensorPod-Board

Pico WSCD30LM1117-3.3

SensorPod-Board bill of materials (BOM)

17 components, 14 distinct parts.

QtyPartRefs
1
Pico W
U1
1
SCD30
U2
1
LM1117-3.3
U3
1
TP0610L
Q1
1
EXT
J1
1
EXT I2C
J2
1
Reset
J3
1
DC 5-15v
J4
1
Power select
J5
2
D_Schottky
D1, D2
1
1000uF
C1
2
10uF
C2, C3
2
4.7k
R1, R2
1
10K
R3

SensorPod-Board design files

The KiCad project lives in the plb500/AutoBloomer-SensorModules repository on GitHub; these links point at the commit this page was built from.

SensorPod-Board: common questions

What microcontroller does the SensorPod-Board use?

The SensorPod-Board is built around the Pico W, from the RP2040/RP2350 family.

How big is the SensorPod-Board?

The SensorPod-Board measures 13.3 × 31 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the SensorPod-Board?

17 components, from 14 distinct parts. The full bill of materials is listed on this page.

Where can I download the SensorPod-Board design files?

From the plb500/AutoBloomer-SensorModules repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the SensorPod-Board design in my own project?

The repository has no license, so all rights stay with plb500. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the SensorPod-Board without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug RP2040/RP2350 firmware against it before you order a PCB.
