Pro V2

kata0510·Lily58·Pro_V2/Pro_V2.kicad_pcb

Pro V2 PCB layout, top view — open source RP2040/RP2350 board by kata0510

About the Pro V2 PCB

Pro V2 is an open source RP2040/RP2350 PCB design by kata0510, published on GitHub under the MIT license. It is a 2-layer board measuring 290.1 × 130 mm, with 270 components from 28 distinct parts.

Its main chip is the RP2040, from the RP2040/RP2350 family. Other key parts include the AMS1117-3.3, USBLC6-2SC6 and W25Q128JVPIQ. By type, the board carries 60 LEDs, 58 switches, 58 diodes, 34 capacitors, 18 resistors and 8 ICs.

It belongs with the keyboards designs in this gallery.

From the project

6×4+4keys column-staggered split keyboard.

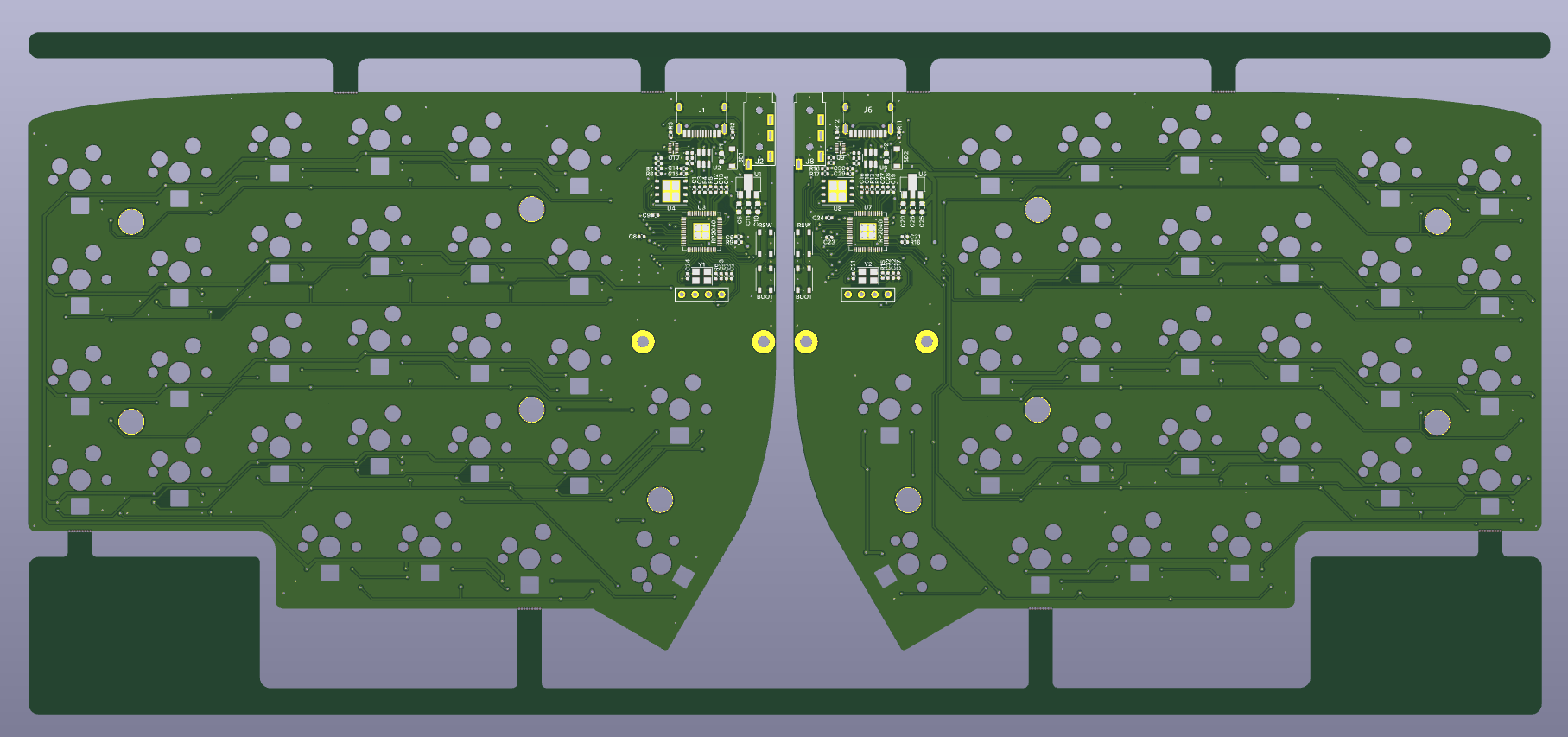

Pro V2, from the project README
From the project README

Main components on the Pro V2

AMS1117-3.3USBLC6-2SC6RP2040W25Q128JVPIQ

Pro V2 bill of materials (BOM)

270 components, 28 distinct parts.

QtyPartRefs
2
AMS1117-3.3
U1, U5
2
USBLC6-2SC6
U2, U6
2
RP2040
U3, U7
2
W25Q128JVPIQ
U4, U8
2
12MHz
Y1, Y2
2
USB_C_Receptacle
J1, J6
2
AudioJack4
J2, J8
2
OLED
J3, J7
2
SWBoot
BSW1, BSW2
2
6V 0.5A
F1, F2
8
tab
H1, H2, H3, H4, H12, H13, H14, H15
10
HOLE
H5, H6, H7, H8, H9, H16, H17, H18 +2
2
RSW
RSW1, RSW2
2
3A/10V/280mV
SD1, SD2
58
SW_Push
SW1, SW2, SW3, SW4, SW5, SW6, SW7, SW8 +50
58
YS-SK6812MINI
LED1, LED2, LED3, LED4, LED5, LED6, LED7, LED8 +50
2
LED_WHITE
STLED1, STLED2
58
D
D1, D2, D3, D4, D5, D6, D7, D8 +50
18
100n
C1, C2, C3, C4, C6, C7, C8, C9 +10
2
100n
C5, C20
Show 8 more
QtyPartRefs
4
10u
C10, C11, C25, C26
6
2.2uF
C12, C13, C15, C27, C28, C30
4
27pF
C31, C32, C33, C34
2
50k
R1, R10
4
5.1k
R2, R3, R11, R12
4
27
R4, R5, R13, R14
4
1k
R6, R8, R15, R17
4
10k
R7, R9, R16, R18

Pro V2 design files

The KiCad project lives in the kata0510/Lily58 repository on GitHub; these links point at the commit this page was built from.

Pro V2: common questions

What microcontroller does the Pro V2 use?

The Pro V2 is built around the RP2040, from the RP2040/RP2350 family.

How big is the Pro V2 PCB?

The Pro V2 measures 290.1 × 130 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Pro V2?

270 components, from 28 distinct parts. The full bill of materials is listed on this page.

Where can I download the Pro V2 design files?

From the kata0510/Lily58 repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the Pro V2 design in my own project?

Yes, under the terms of its MIT license, which kata0510 chose for the repository.

Can I test firmware for the Pro V2 without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug RP2040/RP2350 firmware against it before you order a PCB.
