About the Elec Ventouse 3d PCB

Elec Ventouse 3d is an open source RP2040/RP2350 PCB design by pollen-robotics, published on GitHub under the Apache-2.0 license. It is a 4-layer board measuring 45 × 64 mm, with 132 components from 43 distinct parts.

Its main chip is the Pico 2, from the RP2040/RP2350 family. Other key parts include the AP63203, AP63205, TL431DBZ and DRV8316R. By type, the board carries 50 resistors, 47 capacitors, 13 connectors, 8 diodes, 6 ICs and 3 transistors.

It belongs with the robotics & motion designs in this gallery.

From the project

Power board for 3 BLDC motors. Paired with elec_Poulpe_3d

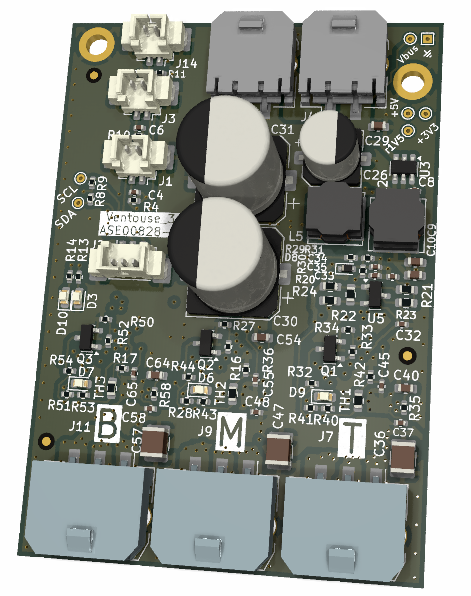

"Ventouse3d" is build from "Themis" as it aims on driving Orbita 3 Dofs. It is paired with boards "Poulpe3d" that controls 3 small BLDC Motors.

Elec Ventouse 3d, from the project README — From the project README

Main components on the Elec Ventouse 3d

AP63203 AP63205 TL431DBZ DRV8316R

Elec Ventouse 3d bill of materials (BOM)

132 components, 43 distinct parts — part numbers from the project's BOM.

Qty	Part	Footprint	Refs
1	AP63203	TSOT-23-6	U3
1	AP63205	TSOT-23-6	U4
1	TL431DBZ	SOT-23	U5
3	DRV8316R	VQFN-40-1EP_5x7mm_P0,5mm_EP3.8x5.8mm	U6, U7, U8
3	BSS123	SOT-23	Q1, Q2, Q3
3	Pico 2	Molex_PicoBlade_53398-0271_1x02-1MP_P1.25mm_Vertical	J1, J3, J14
1	DNP - pico3	Molex_PicoBlade_53398-0371_1x03-1MP_P1.25mm_Vertical	J2
2	MicroFit2	Micro-Fit_43650-0210_Horizontal	J4, J5
4	SlimStack Plug 4mm	Molex_SlimStack_539160208	J6, J8, J10, J12
3	MicroFit 3	Micro-Fit_43650-0310_Horizontal	J7, J9, J11
3	10k_NTC	R_0603_1608Metric	TH1, TH2, TH3
1	Green	LED_0603_1608Metric	D3
2	TVS diode	D_SMA	D4, D5
4	Red	LED_0603_1608Metric	D6, D7, D9, D10
1	BAT30KFILM	D_SOD-523	D8
2	6,8u 2A	L_Bourns_SRN6045TA	L2, L5
7	10n 6V3	C_0402_1005Metric	C4, C6, C7, C35, C45, C55, C65
5	100n 50V	C_0402_1005Metric	C8, C23, C37, C48, C58
4	22u 6V3	C_0603_1608Metric	C9, C10, C24, C25
1	10u 63V	CP_Elec_6.3x7.7	C26

Show 23 more

Qty	Part	Footprint	Refs
1	470n 50V	C_0603_1608Metric	C29
2	220u 35V	CP_Elec_10x10.5	C30, C31
6	100n 6V3	C_0402_1005Metric	C32, C33, C34, C42, C51, C61
3	2u2 50V	C_1210_3225Metric	C36, C47, C57
3	1u 6V3	C_0402_1005Metric	C38, C53, C63
3	1u 16V	C_0402_1005Metric	C39, C50, C60
3	22u 10V	C_0603_1608Metric	C40, C54, C64
3	47n 50V	C_0603_1608Metric	C41, C52, C62
6	22p 25V	C_0402_1005Metric	C43, C44, C46, C49, C56, C59
15	4K7	R_0402_1005Metric	R1, R2, R3, R4, R8, R9, R10, R11 +7
5	470R	R_0402_1005Metric	R13, R14, R40, R43, R53
1	75R	R_0603_1608Metric	R20
2	10k	R_0603_1608Metric	R21, R23
1	20k	R_0603_1608Metric	R22
1	100k	R_0603_1608Metric	R24
2	620m	R_2512W_Pad2.10x3.15mm	R25, R26
3	22k	R_0402_1005Metric	R27, R34, R50
1	75k	R_0402_1005Metric	R29
1	150R	R_0402_1005Metric	R30
6	10k	R_0402_1005Metric	R32, R37, R44, R47, R54, R57
3	0R	R_0402_1005Metric	R33, R36, R52
3	22R	R_0402_1005Metric	R35, R48, R58
6	330R	R_0402_1005Metric	R38, R39, R45, R46, R55, R56

Elec Ventouse 3d design files

The KiCad project lives in the pollen-robotics/elec_Ventouse_3d repository on GitHub; these links point at the commit this page was built from.

Layoutelec_Ventouse_3d.kicad_pcb
Schematicelec_Ventouse_3d.kicad_sch
BOMfab/ASE00828-A4_carte_Ventouse_3d_BOM.xlsx

Elec Ventouse 3d: common questions

What microcontroller does the Elec Ventouse 3d use?

The Elec Ventouse 3d is built around the Pico 2, from the RP2040/RP2350 family.

How big is the Elec Ventouse 3d PCB?

The Elec Ventouse 3d measures 45 × 64 mm, has 4 copper layers and is 1.566 mm thick.

How many components are on the Elec Ventouse 3d?

132 components, from 43 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Elec Ventouse 3d design files?

From the pollen-robotics/elec_Ventouse_3d repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Elec Ventouse 3d design in my own project?

Yes, under the terms of its Apache-2.0 license, which pollen-robotics chose for the repository.

Can I test firmware for the Elec Ventouse 3d without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug RP2040/RP2350 firmware against it before you order a PCB.
