Control board VCF-3350-8
About the Control board VCF-3350-8
Control board VCF-3350-8 is an open source PCB design by polykit, published on GitHub. It is a 2-layer board measuring 42 × 78.5 mm, with 21 components from 9 distinct parts.
Other key parts include the TL074. By type, the board carries 13 resistors, 3 connectors, 2 capacitors and 1 IC.
It belongs with the audio designs in this gallery.
From the project
CEM3350/AS3350 based 8 channel VCF

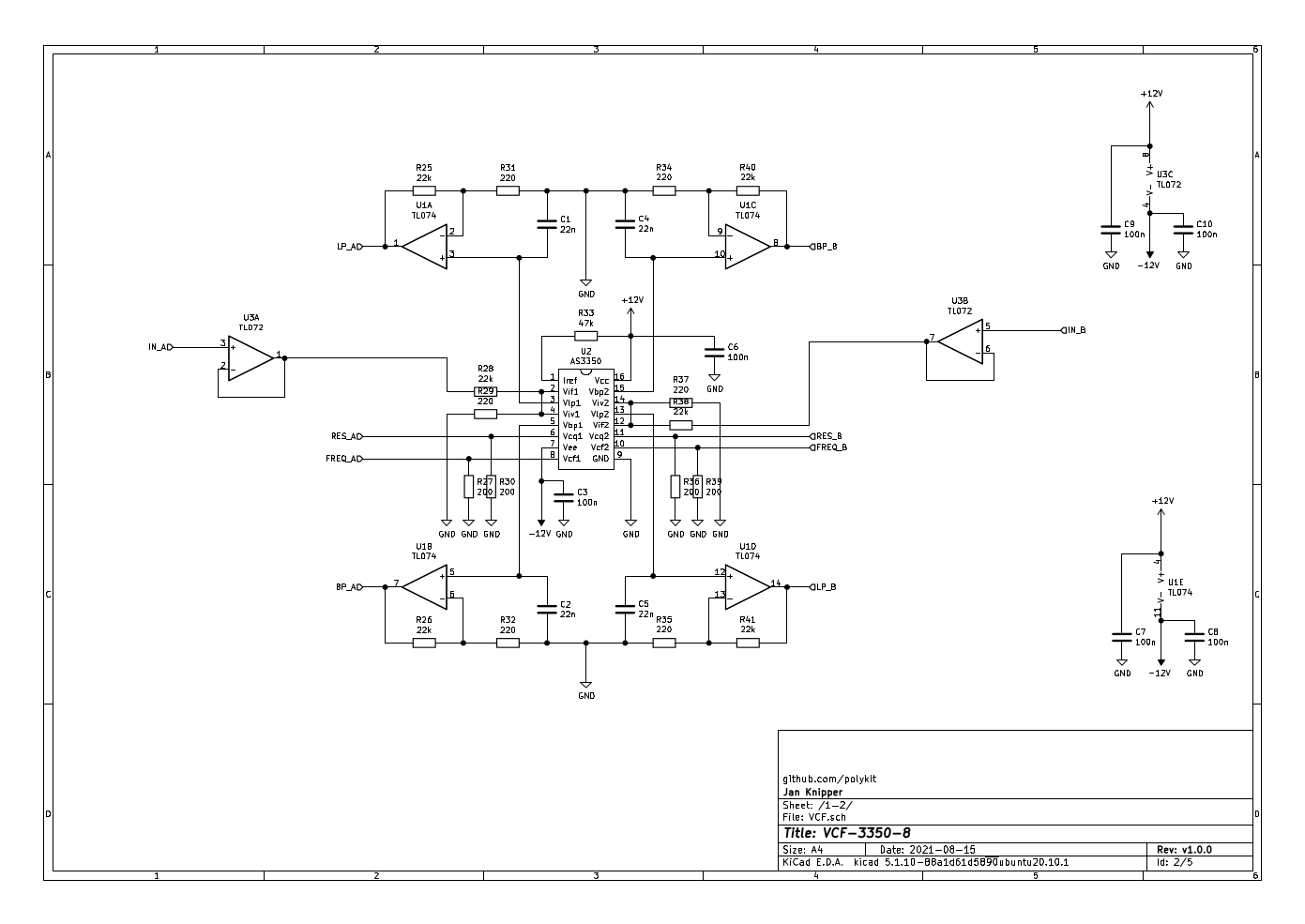

This repository contains schematics and Kicad PCB layout for an eight channel voltage controlled filter (VCF) based on the CEM3350/AS3350 state variable filter. Both frequency cutoff and resonance (Q) are voltage controllable. It offers a simoultaneous low-pass and band-pass output.
https://electricdruid.net/datasheets/AS3350.pdf
http://www.synfo.nl/datasheets/CEM3350.pdf
Main components on the Control board VCF-3350-8
Control board VCF-3350-8 bill of materials (BOM)
21 components, 9 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | TL074 | DIP-14_W7.62mm_Socket_LongPads | U1 |
| 1 | CONTROL | Molex_KK-254_AE-6410-05A_1x05_P2.54mm_Vertical | J1 |
| 1 | LFO | Molex_KK-254_AE-6410-02A_1x02_P2.54mm_Vertical | J2 |
| 1 | SWITCH | Molex_KK-254_AE-6410-04A_1x04_P2.54mm_Vertical | J3 |
| 1 | FREQ 100k | Potentiometer_Alpha_RD901F-40-00D_Single_Vertical | RV1 |
| 1 | RES 100k | Potentiometer_Alpha_RD901F-40-00D_Single_Vertical | RV2 |
| 2 | 100n | C_Disc_D3.0mm_W2.0mm_P2.50mm | C1, C2 |
| 1 | R* | R_Axial_DIN0207_L6.3mm_D2.5mm_P10.16mm_Horizontal | R1 |
| 12 | 100k | R_Axial_DIN0207_L6.3mm_D2.5mm_P10.16mm_Horizontal | R2, R3, R4, R5, R6, R7, R8, R9 +4 |
Control board VCF-3350-8 design files
The KiCad project lives in the polykit/vcf-3350-8 repository on GitHub; these links point at the commit this page was built from.
Control board VCF-3350-8: common questions
How big is the Control board VCF-3350-8?
The Control board VCF-3350-8 measures 42 × 78.5 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Control board VCF-3350-8?
21 components, from 9 distinct parts. The full bill of materials is listed on this page.
Where can I download the Control board VCF-3350-8 design files?
From the polykit/vcf-3350-8 repository on GitHub, which has the KiCad layout; the links under Design files point to each one.
Can I use the Control board VCF-3350-8 design in my own project?
The repository has no license, so all rights stay with polykit. Use it as a reference, and ask the author before reusing the design.
