Embedded-Radar PCB layout, top view — open source board by qahaidari

About the Embedded-Radar PCB

Embedded-Radar is an open source PCB design by qahaidari, published on GitHub. It is a 2-layer board measuring 100 × 80 mm, with 47 components from 22 distinct parts.

Other key parts include the MC33079. By type, the board carries 21 resistors, 16 capacitors, 3 diodes, 2 connectors, 2 switches and 1 IC.

It belongs with the sensors designs in this gallery.

From the project

Embedded radar sensor circuit with STM32 microcontroller for measuring target speed

RADAR stands for Radio Detection And Ranging and is a detection system that uses radio waves to determine the range, angle, or velocity of objects. It can be used to detect aircraft, ships, spacecraft, guided missiles, motor vehicles, weather formations, and terrain. Radars are now involved in various applications. It was initially used for target detection in military applications but nowadays it is used in tracking of aircrafts and vehicles and also in traffic control and space. In this project we will concentrate on motion and speed detection of objects using Radars.

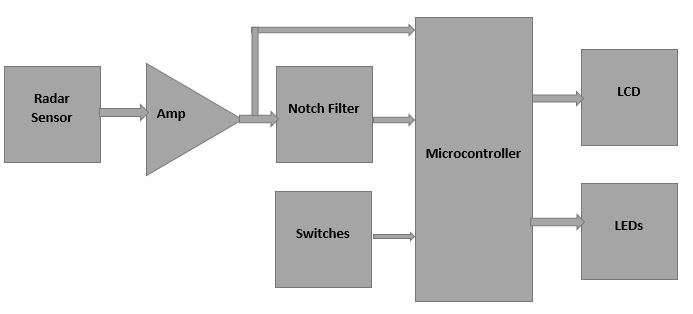

Embedded-Radar, from the project README
From the project README

Main components on the Embedded-Radar

MC33079

Embedded-Radar bill of materials (BOM)

47 components, 22 distinct parts.

QtyPartRefs
1
MC33079
U1
1
Barrel_Jack_Switch
J1
1
NUCLEO64
NUCBRD1
1
WC1602A
DS1
1
HYG_RSM_1650
HYGRSM1
2
SW_Push
SW1, SW2
3
RED
D1, D2, D3
3
10u
C1, C2, C4
2
1n
C3, C5
4
33n
C6, C7, C8, C9
6
100n
C10, C11, C12, C14, C15, C16
1
47u
C13
2
10k
R1, R2
2
4.7k
R3, R6
1
1k
R4
2
150k
R5, R7
1
300
R8
1
2k
R9
6
47k
R10, R11, R12, R13, R14, R15
2
30k
R16, R17
Show 2 more
QtyPartRefs
3
180
R18, R20, R21
1
100
R19

Embedded-Radar design files

The KiCad project lives in the qahaidari/Embedded-Radar repository on GitHub; these links point at the commit this page was built from.

Embedded-Radar: common questions

How big is the Embedded-Radar PCB?

The Embedded-Radar measures 100 × 80 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Embedded-Radar?

47 components, from 22 distinct parts. The full bill of materials is listed on this page.

Where can I download the Embedded-Radar design files?

From the qahaidari/Embedded-Radar repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the Embedded-Radar design in my own project?

The repository has no license, so all rights stay with qahaidari. Use it as a reference, and ask the author before reusing the design.
