QRET 25-26 SRAD Hybrid Lower Control Module

Queens-Rocket-Engineering-Team·av-prop·Schematics/lower_lc_board/lower_lc_board.kicad_pcb

QRET 25-26 SRAD Hybrid Lower Control Module layout, top view — open source STM32 board by Queens-Rocket-Engineering-Team

About the QRET 25-26 SRAD Hybrid Lower Control Module

QRET 25-26 SRAD Hybrid Lower Control Module is an open source STM32 PCB design by Queens-Rocket-Engineering-Team, published on GitHub. It is a 4-layer board measuring 69.5 × 60 mm, with 140 components from 67 distinct parts.

Its main chip is the STM32F103CBT6, from the STM32 family. Other key parts include the TCAN1051HGVDR, AMS1117-3.3, ID_LM66100DCKR, BY25Q128ES and CP2102N-Axx-xQFN20. By type, the board carries 54 resistors, 41 capacitors, 12 diodes, 11 ICs, 10 connectors and 4 transistors.

It belongs with the sensors designs in this gallery.

From the project

QRET Avionics PCBs and firmware for integrating with the propulsion stack

- Lower Control Board (HYDRA) Documentation - Overview - Key Features - Circuit Design - Power Management - Power Entry - Power MUX - Power Switching - MCU Breakout - Mode Selection - Flash Storage Module - CANBUS Interface - Serial Wire Debug - USB Interface - System Feedback - Valve Control - Sensing - Data Acquisition - Pressure Transducers - Thermocouples - Board Design - Physical Design Notes - Electrical Characteristics - System Partitioning - Revision History - Contributors

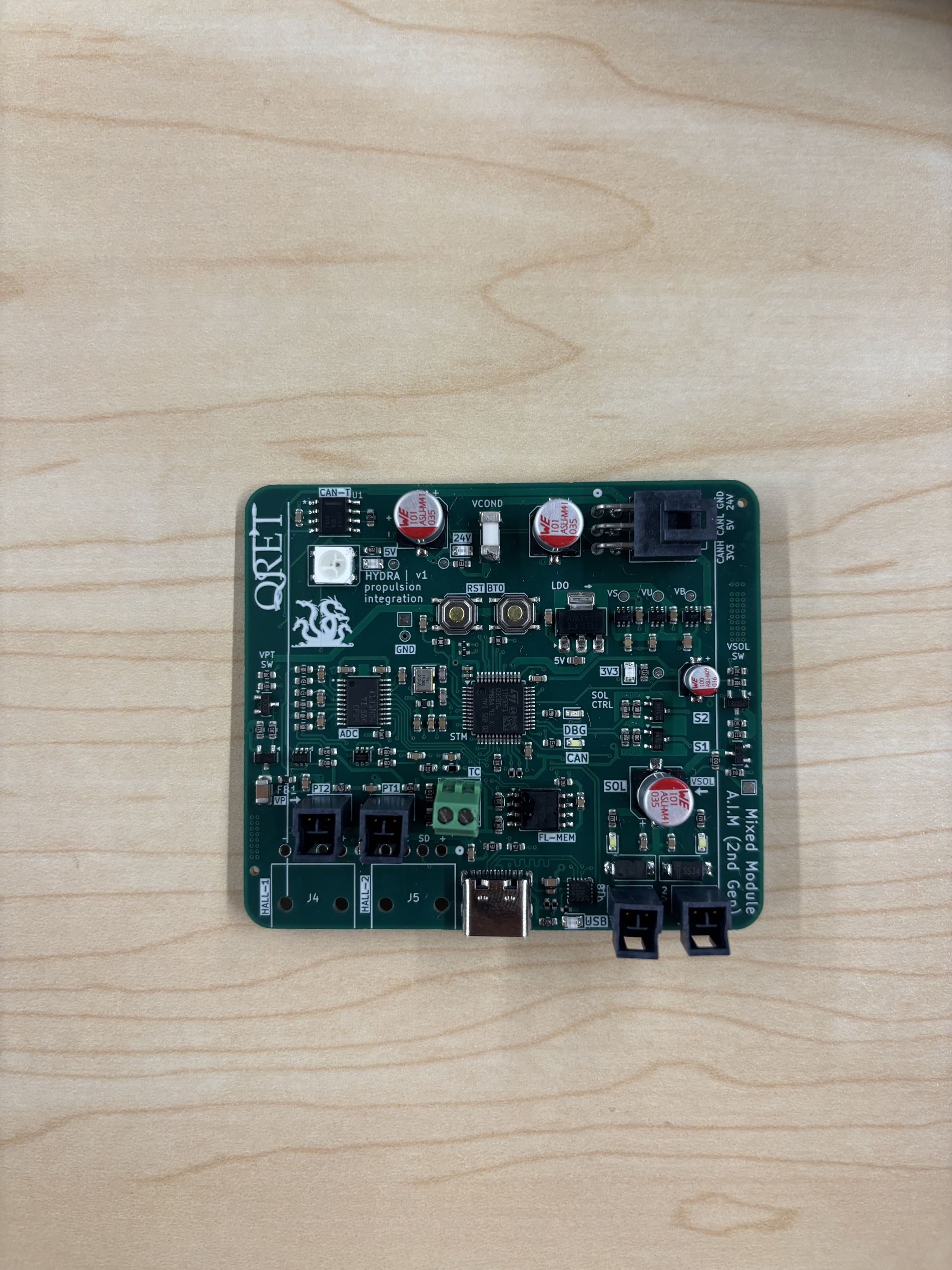

QRET 25-26 SRAD Hybrid Lower Control Module, from the project README
From the project README

Main components on the QRET 25-26 SRAD Hybrid Lower Control Module

TCAN1051HGVDRAMS1117-3.3ID_LM66100DCKRSTM32F103CBT6BY25Q128ESCP2102N-Axx-xQFN20ADC_ADS131M04IPWRDMP4065S-7

QRET 25-26 SRAD Hybrid Lower Control Module bill of materials (BOM)

140 components, 67 distinct parts.

QtyPartRefs
1
TCAN1051HGVDR
U1
1
AMS1117-3.3
U2
3
ID_LM66100DCKR
U3, U4, U10
1
STM32F103CBT6
U5
1
BY25Q128ES
U6
1
CP2102N-Axx-xQFN20
U8
1
ADC_ADS131M04IPWR
U9
2
DMP4065S-7
U11, U12
2
AO3400A
Q1, Q2
2
2N7002
Q3, Q5
1
X322516MMB4SI
Y1
1
Conn_01x06
J1
1
SWD_CONN
J2
1
USB_C_CONN
J3
1
HALL-1
J4
1
HALL-2
J5
2
PT
J6, J8
1
Screw_Terminal_01x02
J7
2
SOL_CONN
J9, J10
1
Fuse
F1
Show 47 more
QtyPartRefs
1
SW_STM_RESET
SW1
1
SW_STM_BOOT_MODE
SW2
1
Thermistor
TH1
1
GND-TP-H
TP3
1
PWR_3V3_LED (GRN)
D1
1
PWR_24V_LED (GRN)
D2
1
PWR_5V_LED (GRN)
D3
1
USB_LED (GRN)
D4
1
DB_LED (YLW)
D5
1
CAN_LED (WHT)
D6
1
SOL2_LED (YELW)
D11
1
SOL1_LED (YELW)
D12
2
BAV199DW
D13, D18
2
SS34
D15, D16
2
600R
FB1, FB2
1
10uF
C1
9
0.1uF
C2, C18, C23, C30, C33, C39, C41, C45 +1
3
100uF
C3, C4, C46
7
1uF
C5, C6, C28, C43, C44, C48, C49
4
10uF
C7, C12, C21, C50
3
100nF
C8, C9, C17
2
10p
C10, C11
2
100n
C13, C14
2
100n
C15, C16
1
1uF
C20
4
10nF
C26, C27, C34, C56
1
220 nF
C29
1
10uF
C35
1
1nF
C51
1
3.3k
R1
3
12k
R2, R30, R31
4
6.2k
R3, R16, R23, R51
13
10k
R5, R6, R7, R8, R22, R25, R43, R48 +5
2
5.1k
R9, R10
1
22k
R11
1
47k
R12
1
1k
R13
1
680
R14
1
270
R15
4
2.2k
R17, R18, R21, R45
2
1.2k
R19, R20
4
1k
R24, R28, R33, R37
2
1M
R26, R27
8
200
R29, R34, R36, R38, R40, R41, R44, R53
2
62
R32, R35
3
100k
R39, R42, R47
1
120
R46

QRET 25-26 SRAD Hybrid Lower Control Module design files

The KiCad project lives in the Queens-Rocket-Engineering-Team/av-prop repository on GitHub; these links point at the commit this page was built from.

QRET 25-26 SRAD Hybrid Lower Control Module: common questions

What microcontroller does the QRET 25-26 SRAD Hybrid Lower Control Module use?

The QRET 25-26 SRAD Hybrid Lower Control Module is built around the STM32F103CBT6, from the STM32 family.

How big is the QRET 25-26 SRAD Hybrid Lower Control Module?

The QRET 25-26 SRAD Hybrid Lower Control Module measures 69.5 × 60 mm, has 4 copper layers and is 1.6 mm thick.

How many components are on the QRET 25-26 SRAD Hybrid Lower Control Module?

140 components, from 67 distinct parts. The full bill of materials is listed on this page.

Where can I download the QRET 25-26 SRAD Hybrid Lower Control Module design files?

From the Queens-Rocket-Engineering-Team/av-prop repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the QRET 25-26 SRAD Hybrid Lower Control Module design in my own project?

The repository has no license, so all rights stay with Queens-Rocket-Engineering-Team. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the QRET 25-26 SRAD Hybrid Lower Control Module without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug STM32 firmware against it before you order a PCB.
