QRET 25-26 SRAD Hybrid Upper Control Module

Queens-Rocket-Engineering-Team·av-prop·Schematics/upper_lc_board/upper_lc_board.kicad_pcb

QRET 25-26 SRAD Hybrid Upper Control Module layout, top view — open source ESP32 board by Queens-Rocket-Engineering-Team

About the QRET 25-26 SRAD Hybrid Upper Control Module

QRET 25-26 SRAD Hybrid Upper Control Module is an open source ESP32 PCB design by Queens-Rocket-Engineering-Team, published on GitHub. It is a 4-layer board measuring 69.5 × 62.6 mm, with 99 components from 55 distinct parts.

Its main chip is the ESP32-S3-WROOM-1-N16, from the ESP32 family. Other key parts include the TCAN1051HGVDR, AMS1117-3.3, ID_LM66100DCKR, ADC_ADS131M04IPWR and DMP4065S-7. By type, the board carries 35 resistors, 26 capacitors, 13 diodes, 7 ICs, 7 connectors and 4 transistors.

It belongs with the iot & wireless and sensors designs in this gallery.

From the project

QRET Avionics PCBs and firmware for integrating with the propulsion stack

- Upper Control Board (PEGASUS) Documentation - Overview - Key Features - Circuit Design - Power Management - Power Entry - Power MUX - Power Switching - MCU Breakout - Mode Selection - CANBUS Interface - USB Interface - System Feedback - Valve Control - Sensing - Data Acquisition - Pressure Transducers - Board Design - Physical Design Notes - Electrical Characteristics - System Partitioning - Revision History - Contributors

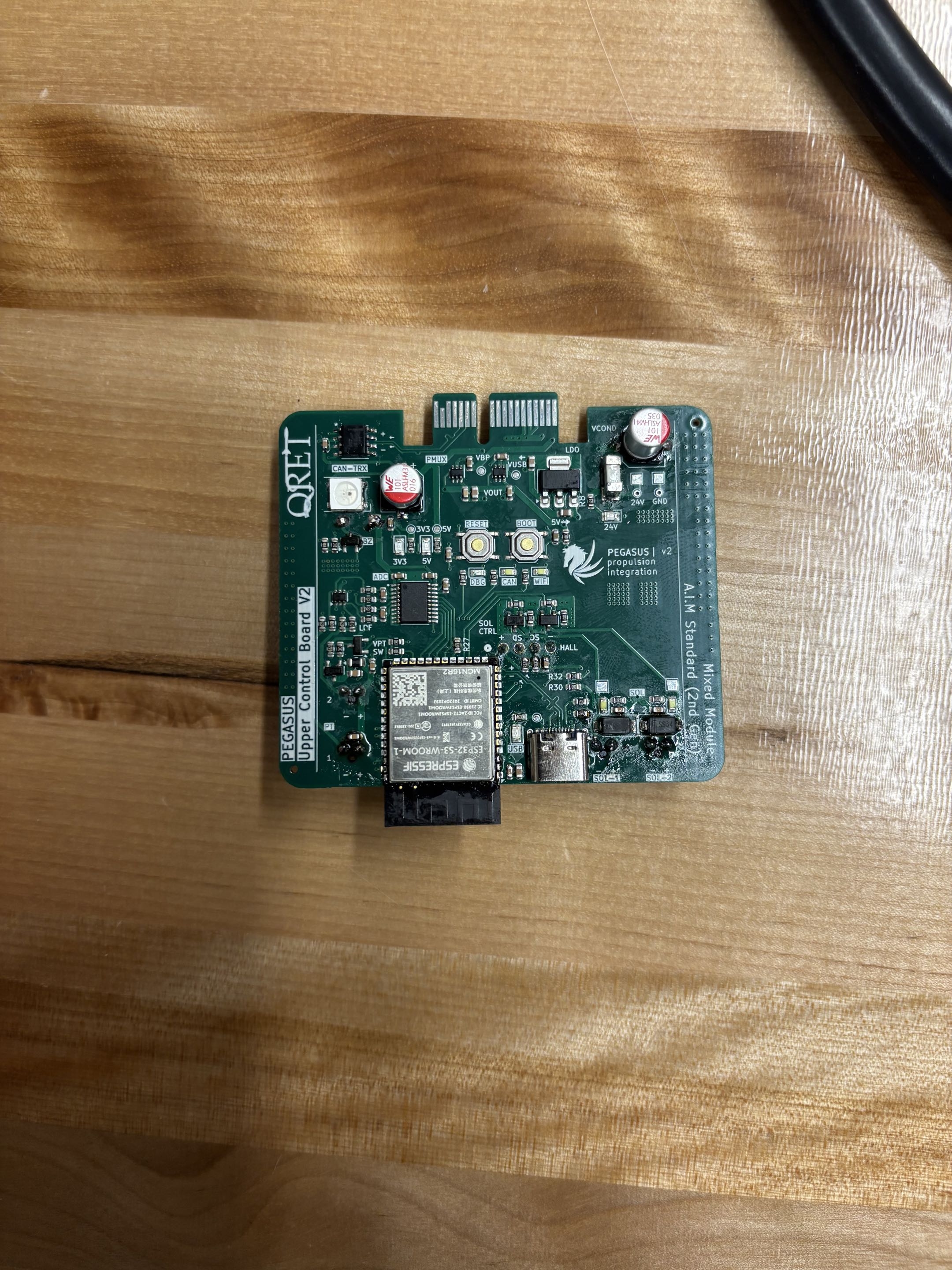

QRET 25-26 SRAD Hybrid Upper Control Module, from the project README
From the project README

Main components on the QRET 25-26 SRAD Hybrid Upper Control Module

ESP32-S3-WROOM-1-N16TCAN1051HGVDRAMS1117-3.3ID_LM66100DCKRADC_ADS131M04IPWRDMP4065S-7

QRET 25-26 SRAD Hybrid Upper Control Module bill of materials (BOM)

99 components, 55 distinct parts.

QtyPartRefs
1
ESP32-S3-WROOM-1-N16
U1
1
TCAN1051HGVDR
U2
1
AMS1117-3.3
U3
2
ID_LM66100DCKR
U4, U5
1
ADC_ADS131M04IPWR
U7
1
DMP4065S-7
U9
2
AO3400A
Q1, Q2
2
2N7002
Q4, Q5
1
USB_C_Female_USB2_Small
J1
1
Stack Male Edge Connector
J2
2
PT
J3, J4
1
HALL-1
J5
2
SOL_CONN
J6, J7
1
PS1240P02BT
BZ1
1
Fuse
F1
1
SW_ESP_BOOT_MODE
SW1
1
SW_ESP_RESET
SW2
1
GND-TP-H
TP7
1
24V-TP-H
TP11
1
FAULT_LED (RED)
D1
Show 35 more
QtyPartRefs
1
CAN_LED (WHT)
D2
1
WIFI_LED (WHT)
D3
1
SYS_LED_WS2812B
D4
1
PWR_3V3_LED (GRN)
D5
1
PWR_24V_LED (GRN)
D6
1
PWR_5V_LED (GRN)
D7
1
USB_LED (GRN)
D8
1
SOL2_LED (WHT)
D9
1
SOL1_LED (WHT)
D10
1
BAV199DW
D11
2
SS34
D13, D14
1
100R
FB1
5
1uF
C1, C11, C12, C29, C31
9
0.1uF
C2, C4, C13, C16, C19, C21, C22, C23 +1
5
10uF
C3, C5, C8, C14, C17
1
100nF
C6
1
100uF 35V
C9
1
100uF 16V
C10
1
1nF
C15
2
10nF
C25, C26
1
220 nF
C30
5
10k
R1, R23, R28, R32, R38
1
680
R2
2
270
R3, R4
2
5.1k
R5, R6
1
3.3k
R7
3
12k
R8, R15, R16
3
6.2k
R9, R29, R37
6
200
R10, R13, R18, R19, R26, R39
2
62
R11, R14
2
1k
R12, R17
3
100k
R20, R30, R31
2
2.2k
R21, R22
2
1.2k
R24, R25
1
33
R27

QRET 25-26 SRAD Hybrid Upper Control Module design files

The KiCad project lives in the Queens-Rocket-Engineering-Team/av-prop repository on GitHub; these links point at the commit this page was built from.

QRET 25-26 SRAD Hybrid Upper Control Module: common questions

What microcontroller does the QRET 25-26 SRAD Hybrid Upper Control Module use?

The QRET 25-26 SRAD Hybrid Upper Control Module is built around the ESP32-S3-WROOM-1-N16, from the ESP32 family.

How big is the QRET 25-26 SRAD Hybrid Upper Control Module?

The QRET 25-26 SRAD Hybrid Upper Control Module measures 69.5 × 62.6 mm, has 4 copper layers and is 1.6 mm thick.

How many components are on the QRET 25-26 SRAD Hybrid Upper Control Module?

99 components, from 55 distinct parts. The full bill of materials is listed on this page.

Where can I download the QRET 25-26 SRAD Hybrid Upper Control Module design files?

From the Queens-Rocket-Engineering-Team/av-prop repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the QRET 25-26 SRAD Hybrid Upper Control Module design in my own project?

The repository has no license, so all rights stay with Queens-Rocket-Engineering-Team. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the QRET 25-26 SRAD Hybrid Upper Control Module without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug ESP32 firmware against it before you order a PCB.
