DroydPad PCB layout, top view — open source RP2040/RP2350 board by R-driste

About the DroydPad PCB

DroydPad is an open source RP2040/RP2350 PCB design by R-driste, published on GitHub. It is a 2-layer board measuring 124 × 62 mm, with 26 components from 4 distinct parts.

Its main chip is the XIAO-RP2040-DIP, from the RP2040/RP2350 family. By type, the board carries 12 switches, 12 diodes, 1 IC and 1 connector.

It belongs with the keyboards and displays & leds designs in this gallery.

From the project

Custom 12 switch macropad with rotary encoder and OLED

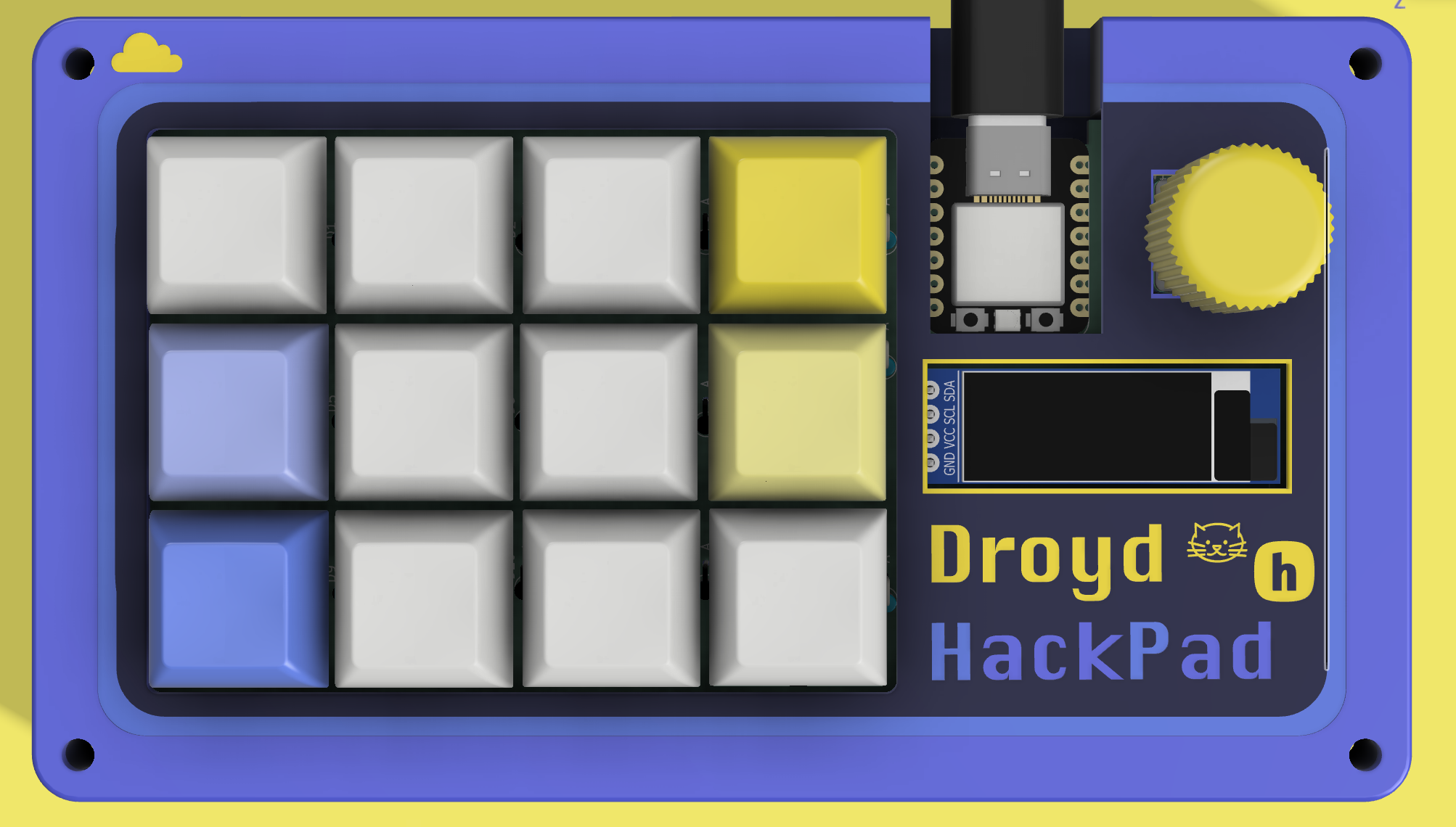

DroydPad, from the project README
From the project README

Main components on the DroydPad

XIAO-RP2040-DIP

DroydPad bill of materials (BOM)

26 components, 4 distinct parts.

QtyPartRefs
1
XIAO-RP2040-DIP
U2
1
OLED_128x32
J1
12
SW_Push
SW1, SW2, SW3, SW4, SW5, SW6, SW7, SW8 +4
12
1N4148
D1, D2, D3, D4, D5, D6, D7, D8 +4

DroydPad design files

The KiCad project lives in the R-driste/DroydPad repository on GitHub; these links point at the commit this page was built from.

DroydPad: common questions

What microcontroller does the DroydPad use?

The DroydPad is built around the XIAO-RP2040-DIP, from the RP2040/RP2350 family.

How big is the DroydPad PCB?

The DroydPad measures 124 × 62 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the DroydPad?

26 components, from 4 distinct parts. The full bill of materials is listed on this page.

Where can I download the DroydPad design files?

From the R-driste/DroydPad repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the DroydPad design in my own project?

The repository has no license, so all rights stay with R-driste. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the DroydPad without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug RP2040/RP2350 firmware against it before you order a PCB.
