3117 breakout
About the 3117 breakout
3117 breakout is an open source PCB design by r4hulrr, published on GitHub under the MIT license. It is a 2-layer board measuring 22 × 20 mm, with 14 components from 13 distinct parts.
Other key parts include the TLV77018PDBVR and MAX30102. By type, the board carries 6 capacitors, 3 resistors, 2 ICs, 2 diodes and 1 connector.
It belongs with the sensors, iot & wireless and audio designs in this gallery.
From the project

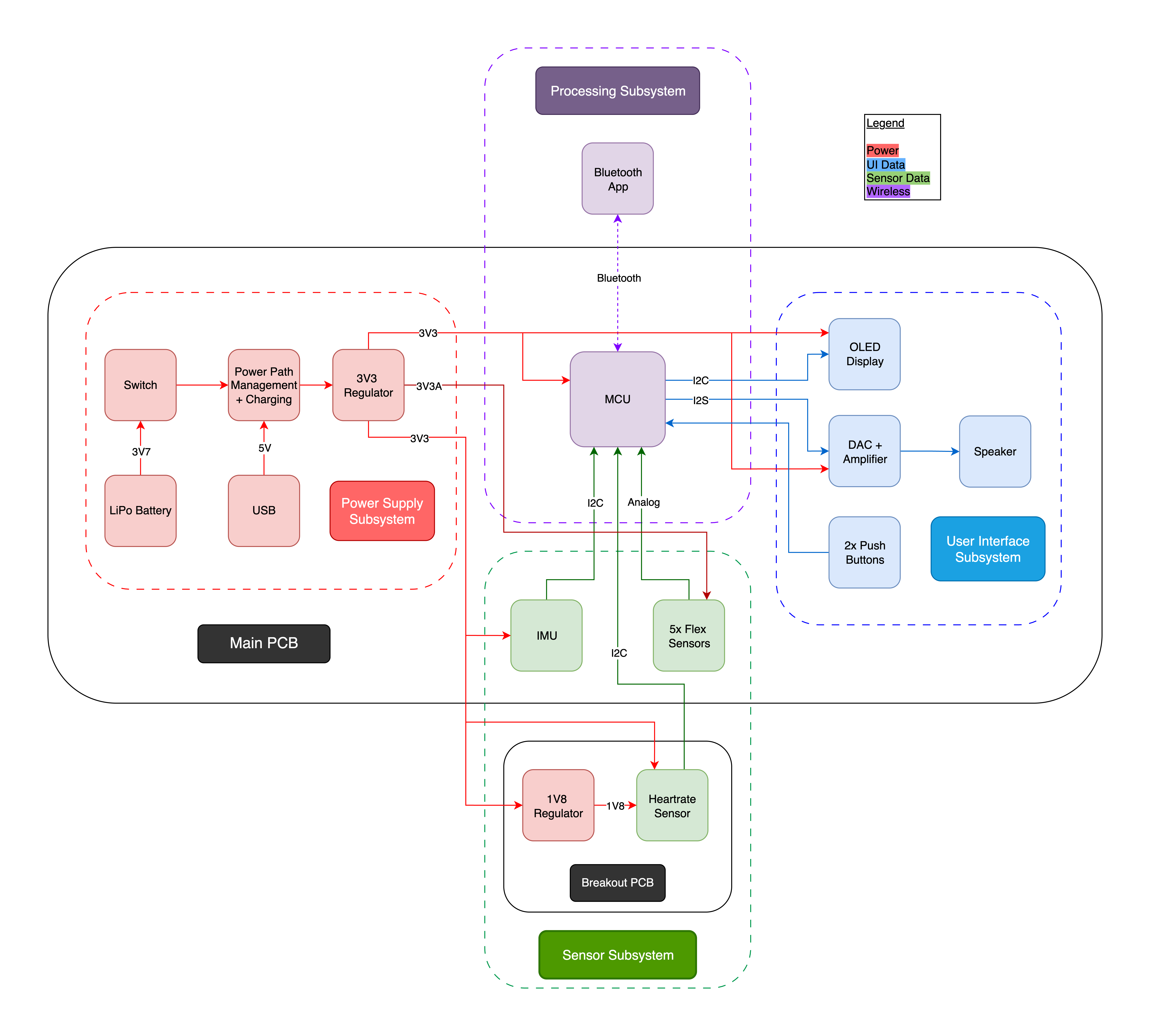

Real-time Auslan (Australian Sign Language) to English speech translation glove. Built with ESP32-S3, flex sensors, IMU on a custom PCB, and a Bluetooth-connected Python GUI.
Breaking communication barriers for the Australian Deaf community with an affordable, wearable, real-time Auslan-to-speech translation glove. Check out the demo video.
Unlike existing ASL-centric devices, AUSIGN is purpose-built for Auslan, incorporating contextual awareness via a heart-rate sensor, low-latency audio feedback, and Bluetooth connectivity for flexible output through a mobile/desktop app.
Main components on the 3117 breakout
3117 breakout bill of materials (BOM)
14 components, 13 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | TLV77018PDBVR | SOT-23-5_HandSoldering | U1 |
| 1 | MAX30102 | Maxim_OLGA-14_3.3x5.6mm_P0.8mm | U2 |
| 1 | Conn_01x04_Pin | JST_SH_SM04B-SRSS-TB_1x04-1MP_P1.00mm_Horizontal | J1 |
| 1 | LTST-C190KGKT | LED_0603_1608Metric | D1 |
| 1 | 5988E40107F | LED_0603_1608Metric | D2 |
| 1 | 1u | C_0603_1608Metric | C1 |
| 1 | 0.47u | C_0603_1608Metric | C2 |
| 1 | 10u | C_0603_1608Metric | C3 |
| 2 | 100n | C_0603_1608Metric | C4, C6 |
| 1 | 4u7 | C_0603_1608Metric | C5 |
| 1 | 4k7 | R_0603_1608Metric | R1 |
| 1 | 200 | R_0603_1608Metric | R2 |
| 1 | 49.9 | R_0603_1608Metric | R3 |
3117 breakout design files
The KiCad project lives in the r4hulrr/ausign repository on GitHub; these links point at the commit this page was built from.
3117 breakout: common questions
How big is the 3117 breakout?
The 3117 breakout measures 22 × 20 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the 3117 breakout?
14 components, from 13 distinct parts. The full bill of materials is listed on this page.
Where can I download the 3117 breakout design files?
From the r4hulrr/ausign repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the 3117 breakout design in my own project?
Yes, under the terms of its MIT license, which r4hulrr chose for the repository.
