PA Power V1

RADARC·Modular-PA-Controller·Kicad/PA_Power_V1/PA_Power_V1.kicad_pcb

PA Power V1 PCB layout, top view — open source board by RADARC

About the PA Power V1 PCB

PA Power V1 is an open source PCB design by RADARC, published on GitHub. It is a 4-layer board measuring 100 × 100 mm, with 111 components from 51 distinct parts.

Other key parts include the LMR50410, LMR38020, 74LVC1G123, ACS770xCB-050B-PFF and ADS1015IDGS. By type, the board carries 39 resistors, 26 capacitors, 12 diodes, 9 connectors, 8 ICs and 7 inductors.

It belongs with the audio, iot & wireless and displays & leds designs in this gallery, and the repository also holds 1 earlier revision of it.

From the project

Controller for High Power RF Power Amplifiers based Raspberry Pi Pico

Reading and District Amateur Radio Club(RADARC) are working together on a number of collaborative construction projects. This one is to design and build a Modular PA controller for High Power (1kW plus) semiconductor Power amplifiers. This prototype implementation is targetted on the High Power HF PA Modules from W6PQL :

Kilowatt PA LPF Filter * Directional Coupler

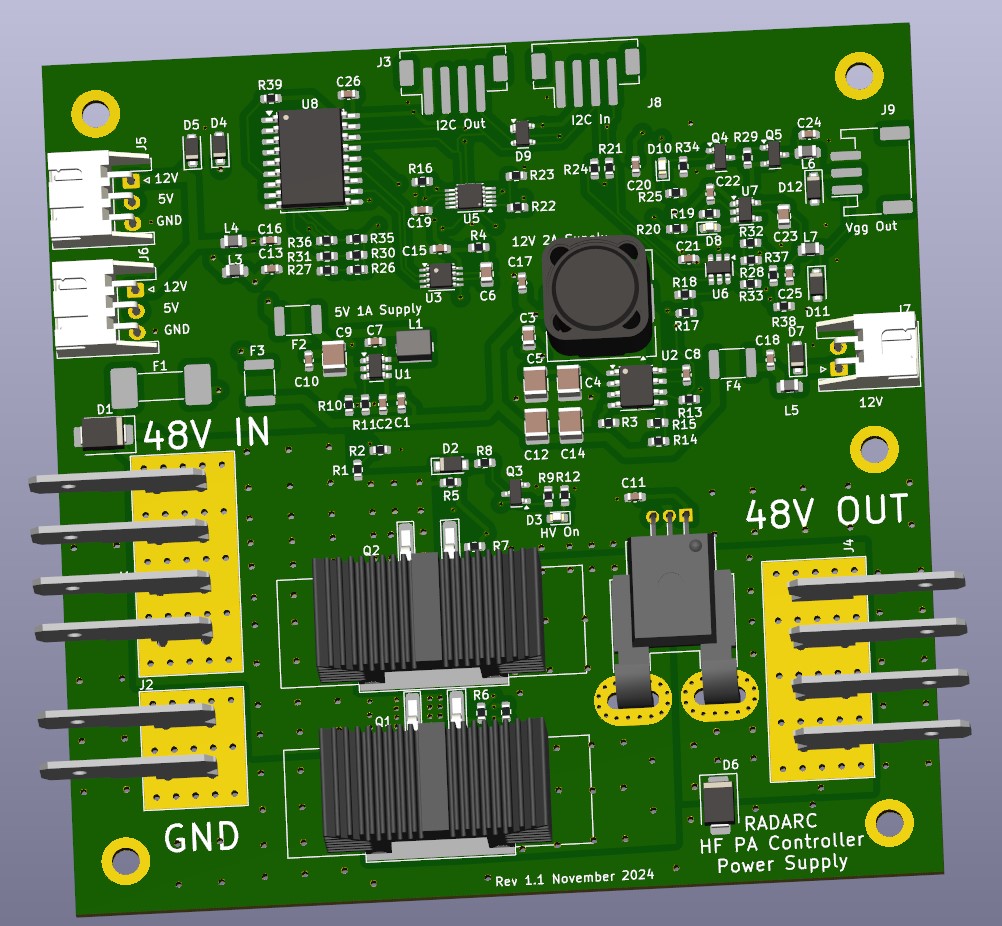

PA Power V1, from the project README
From the project README

Main components on the PA Power V1

LMR50410LMR3802074LVC1G123ACS770xCB-050B-PFFADS1015IDGSMCP4725A0TAP2204K-ADJMCP23008-xSO

PA Power V1 bill of materials (BOM)

111 components, 51 distinct parts.

QtyPartRefs
1
LMR50410
U1
1
LMR38020
U2
1
74LVC1G123
U3
1
ACS770xCB-050B-PFF
U4
1
ADS1015IDGS
U5
1
MCP4725A0T
U6
1
AP2204K-ADJ
U7
1
MCP23008-xSO
U8
2
SQM120P10-19L
Q1, Q2
2
BSS123
Q3, Q4
1
FDN340P
Q5
2
60A 4 Pin
J1, J4
1
30A 2 Pin
J2
2
JST-PH-4
J3, J8
2
JST-XH-3
J5, J6
1
JST-XH-2
J7
1
JST-PH-3
J9
1
1A
F1
3
1A
F2, F3, F4
1
10k
TH1
Show 31 more
QtyPartRefs
2
SM6T75A
D1, D6
1
15v
D2
1
Red
D3
2
SMF4L5.0A
D4, D11
3
SMF4L12A
D5, D7, D12
1
Blue
D8
1
SP0503BAHT
D9
1
Yellow
D10
1
15uH
L1
1
33uH
L2
5
1uH
L3, L4, L5, L6, L7
15
100n
C1, C10, C11, C13, C15, C16, C17, C18 +7
1
2.2u
C2
2
100n
C3, C6
2
2.2u
C4, C5
2
100nf
C7, C8
3
22u
C9, C12, C14
1
22u
C23
1
270k
R1
14
10k
R2, R4, R5, R12, R15, R16, R26, R29 +6
1
64k9
R3
2
82R
R6, R7
4
4k7
R8, R20, R21, R24
4
1k
R9, R19, R25, R28
1
88.7k
R10
1
22.1k
R11
1
100k
R13
1
110k
R14
4
NF
R17, R22, R31, R36
3
0R
R18, R23, R27
2
1k8
R32, R33

PA Power V1 design files

The KiCad project lives in the RADARC/Modular-PA-Controller repository on GitHub; these links point at the commit this page was built from.

PA Power V1: common questions

How big is the PA Power V1 PCB?

The PA Power V1 measures 100 × 100 mm, has 4 copper layers and is 1.6 mm thick.

How many components are on the PA Power V1?

111 components, from 51 distinct parts. The full bill of materials is listed on this page.

Where can I download the PA Power V1 design files?

From the RADARC/Modular-PA-Controller repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the PA Power V1 design in my own project?

The repository has no license, so all rights stay with RADARC. Use it as a reference, and ask the author before reusing the design.
