Arduino-Wi-Fi-Signal-Strength-Tool PCB layout, top view — open source AVR/Arduino board by rajsinghtech

About the Arduino-Wi-Fi-Signal-Strength-Tool PCB

Arduino-Wi-Fi-Signal-Strength-Tool is an open source AVR/Arduino PCB design by rajsinghtech, published on GitHub. It is a 4-layer board measuring 123.1 × 54.4 mm, with 28 components from 10 distinct parts.

Its main chip is the ATmega328P, from the AVR/Arduino family. Other key parts include the ESP8266, WC1602A and LM317. By type, the board carries 10 diodes, 10 capacitors, 4 ICs, 2 resistors, 1 connector and 1 switch.

It belongs with the iot & wireless designs in this gallery.

From the project

Custom Arduino PCB that is designed to scan for Wi-Fi signals

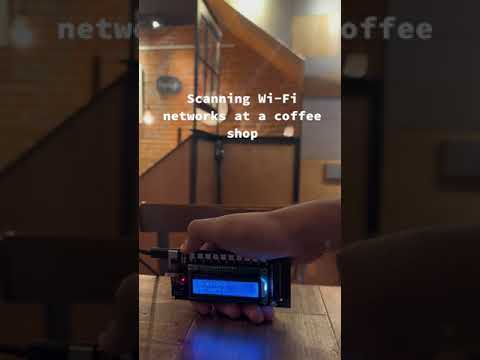

Arduino-Wi-Fi-Signal-Strength-Tool, from the project README
From the project README

Main components on the Arduino-Wi-Fi-Signal-Strength-Tool

ATmega328PESP8266WC1602ALM317

Arduino-Wi-Fi-Signal-Strength-Tool bill of materials (BOM)

28 components, 10 distinct parts.

QtyPartRefs
1
ATmega328P
U1
1
ESP8266
U2
1
WC1602A
U3
1
LM317
U4
1
USB C
J1
1
B3F-1000
S1
10
WS2812B
D1, D2, D3, D4, D5, D6, D7, D8 +2
10
.01uf
C1, C2, C3, C4, C5, C6, C7, C8 +2
1
470
R1
1
680
R2

Arduino-Wi-Fi-Signal-Strength-Tool design files

The KiCad project lives in the rajsinghtech/Arduino-Wi-Fi-Signal-Strength-Tool repository on GitHub; these links point at the commit this page was built from.

Arduino-Wi-Fi-Signal-Strength-Tool: common questions

What microcontroller does the Arduino-Wi-Fi-Signal-Strength-Tool use?

The Arduino-Wi-Fi-Signal-Strength-Tool is built around the ATmega328P, from the AVR/Arduino family.

How big is the Arduino-Wi-Fi-Signal-Strength-Tool PCB?

The Arduino-Wi-Fi-Signal-Strength-Tool measures 123.1 × 54.4 mm, has 4 copper layers and is 0.7912 mm thick.

How many components are on the Arduino-Wi-Fi-Signal-Strength-Tool?

28 components, from 10 distinct parts. The full bill of materials is listed on this page.

Where can I download the Arduino-Wi-Fi-Signal-Strength-Tool design files?

From the rajsinghtech/Arduino-Wi-Fi-Signal-Strength-Tool repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the Arduino-Wi-Fi-Signal-Strength-Tool design in my own project?

The repository has no license, so all rights stay with rajsinghtech. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the Arduino-Wi-Fi-Signal-Strength-Tool without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug AVR/Arduino firmware against it before you order a PCB.
