Pipar chip PCB layout, top view — open source board by RasmusKoit
Simulate this board

About the Pipar chip PCB

Pipar chip is an open source PCB design by RasmusKoit, published on GitHub. It is a 4-layer board measuring 68 × 61.3 mm, with 69 components from 23 distinct parts.

Other key parts include the MCP1700T-3302E/MAY, ESDR0502NMUTAG, NPM1100-QDAA-R and ISP1807-LR-RS. By type, the board carries 17 diodes, 12 LEDs, 10 resistors, 8 capacitors, 4 ICs and 2 connectors.

It belongs with the keyboards and iot & wireless designs in this gallery.

From the project

Pipar is a collection of keyboards

Pipar is a collection of different keyboards and keypads that I have designed. Each PCB in the series has unique features tailored to different needs and preferences.

The Pipar keyboards run ZMK firmware. Board definitions, custom drivers (LED indicators, caps-word events, a recovery watchdog), keymaps, and shields live in the zmk-keyboard-pipar ZMK module — included here as the zmk-keyboard-pipar submodule.

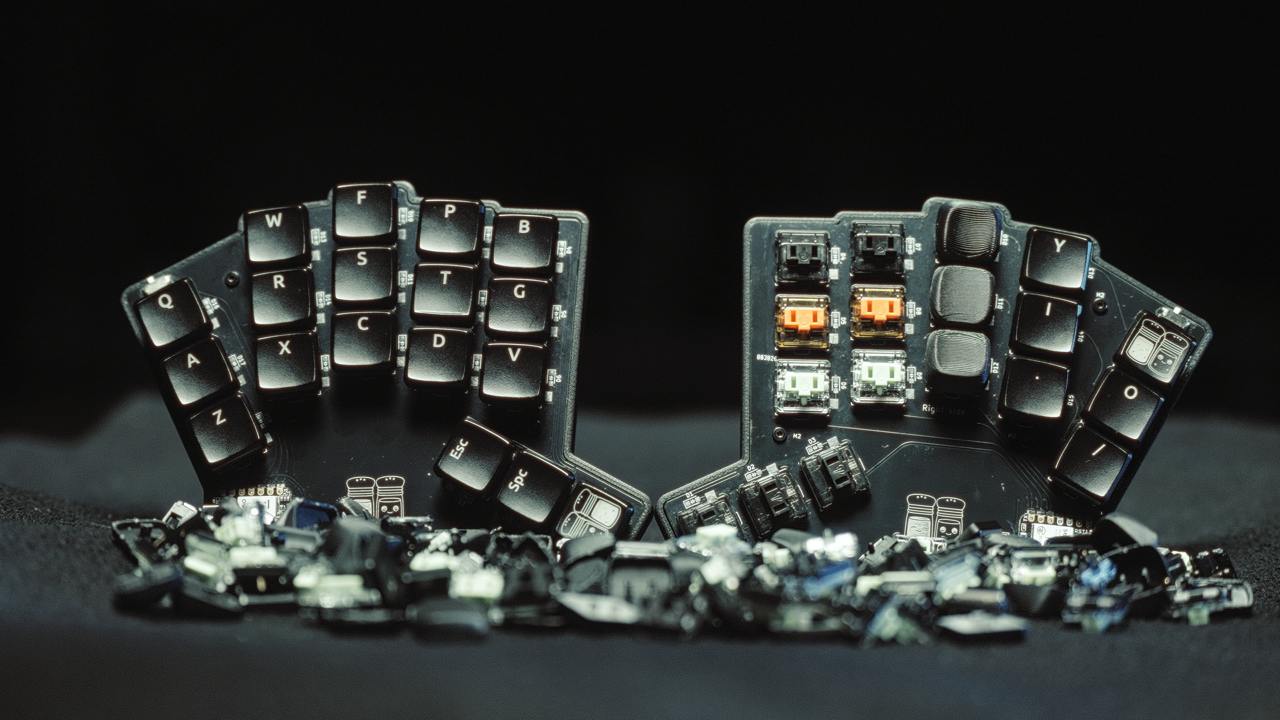

Pipar chip, from the project README
From the project README

Main components on the Pipar chip

MCP1700T-3302E/MAYESDR0502NMUTAGNPM1100-QDAA-RISP1807-LR-RS

Pipar chip bill of materials (BOM)

69 components, 23 distinct parts.

QtyPartRefs
1
MCP1700T-3302E/MAY
MCP1700T-3302E_MAY
IC1
1
ESDR0502NMUTAG
U1
1
NPM1100-QDAA-R
nPM1100-QDXX
U2
1
ISP1807-LR-RS
U3
1
IRLML6344TRPBF
AO3400A
Q1
1
Conn_02x03_Odd_Even
J1
1
UJ20-C-H-G-SMT-P16-TR
USB_C_Receptacle_USB2.0_14P
J2
12
KHS
KHS1, KHS2, KHS3, KHS4, KHS5, KHS6, KHS7, KHS8 +4
1
EVP-BB1AAB000
SW1
1
PCM12SMTBR
SW_SPDT
SW2
12
IN-S63BT5UW
LED_Small
LED1, LED2, LED3, LED4, LED5, LED6, LED7, LED8 +4
2
IN-PIS63BTPG
LED_Small
D1, D4
1
IN-PIS63BTPB
LED_Small
D2
2
IN-PIS63BTPR
LED_Small
D3, D18
12
1N4148WT-7
D_Small
D6, D7, D8, D9, D10, D11, D12, D13 +4
1
MLZ2012A2R2WT000
2.2uH
L1
1
C1608X5R1H103K080AA
10nF
C1
3
C1608X5R0J106K080AB
10uF
C2, C3, C4
1
C1608X5R1E225M080AB
2.2uF
C5
1
CC0603KRX7R5BB105
10uF
C6
Show 3 more
QtyPartRefs
2
CC0603KRX7R5BB105
1uF
C7, C8
5
RC0603FR-071K5L
1.5k
R1, R2, R3, R6, R11
5
603-RC0603FR-075K1L
5.1k
R4, R5, R9, R10, R12

Pipar chip design files

The KiCad project lives in the RasmusKoit/pipar repository on GitHub; these links point at the commit this page was built from.

Pipar chip: common questions

How big is the Pipar chip PCB?

The Pipar chip measures 68 × 61.3 mm, has 4 copper layers and is 1.6 mm thick.

How many components are on the Pipar chip?

69 components, from 23 distinct parts. The full bill of materials is listed on this page.

Where can I download the Pipar chip design files?

From the RasmusKoit/pipar repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the Pipar chip design in my own project?

The repository has no license, so all rights stay with RasmusKoit. Use it as a reference, and ask the author before reusing the design.
