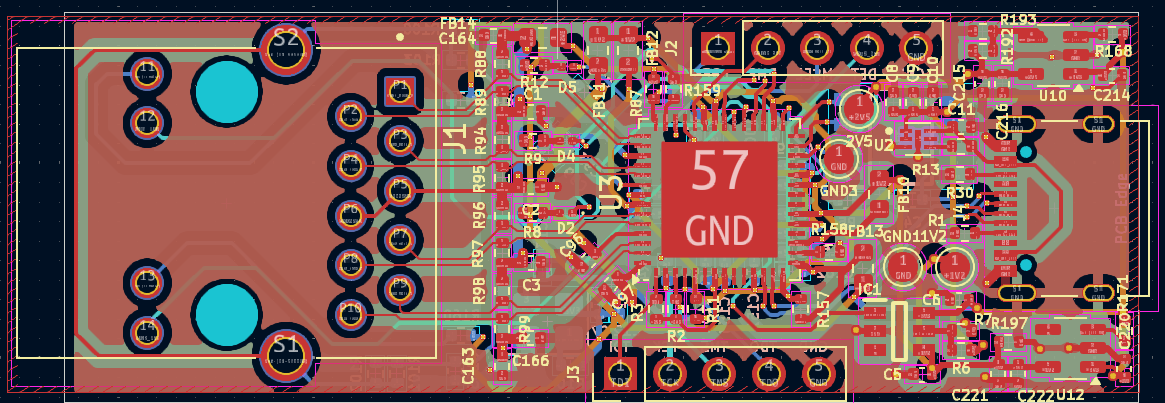

USB to GB Ethernet PCB layout, top view — open source board by Recepkoca

About the USB to GB Ethernet PCB

USB to GB Ethernet is an open source PCB design by Recepkoca, published on GitHub. It is a 6-layer board measuring 55 × 20 mm, with 98 components from 38 distinct parts.

Other key parts include the STM6719SFWB6F, 93AA66A, MIC5528-3.3YMT, LAN7500-ABJZ and TPS78425QDBVRQ1. By type, the board carries 42 capacitors, 37 resistors, 6 ICs, 5 inductors, 4 connectors and 3 diodes.

It belongs with the usb & debug tools and dev boards & breakouts designs in this gallery.

From the project

6-layer USB 2.0 to Gigabit Ethernet module (LAN7500) — validated at ~350 Mbps, production-ready KiCad design with fabrication files

A compact, production-ready USB-to-Gigabit-Ethernet conversion module based on the Microchip LAN7500. Originally developed as a standalone board to validate the USB-to-Ethernet subsystem used in a 6-layer Nvidia Jetson carrier board for autonomous UAV platforms. The circuit has been prototyped, tested, and proven in the field — achieving ~350 Mbps throughput (USB 2.0 High-Speed limit). The LAN7500 enumerates as a Gigabit device and negotiates the maximum link speed available on the host interface.

USB to GB Ethernet, from the project README
From the project README

Main components on the USB to GB Ethernet

STM6719SFWB6F93AA66AMIC5528-3.3YMTLAN7500-ABJZTPS78425QDBVRQ1TLV75512PDBVR

USB to GB Ethernet bill of materials (BOM)

98 components, 38 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
STM6719SFWB6F
IC1
1
93AA66A
U1
1
MIC5528-3.3YMT
MIC5528-3.3YMT-TR
U2
1
LAN7500-ABJZ
U3
1
TPS78425QDBVRQ1
U10
1
TLV75512PDBVR
U12
1
ASCO
Y5
1
CRJ009-ML4-TH
J1
2
CONN_01X05
Conn_01x05
J2, J3
1
USB_C_RECEPTACLE_USB2.0_14P
USB_C_Receptacle_USB2.0_14P
J4
3
green
D2, D4, D5
5
FerriteBead_Small
FB10, FB11, FB12, FB13, FB14
4
0.022UF
0.022uF
C1, C2, C3, C166
4
0.1UF
0.1uF
C4, C5, C6, C7
3
2.2UF
2.2uF
C8, C9, C10
5
1u
C11, C214, C216, C220, C222
1
10UF
10uF
C12
1
15PF
15pF
C13
21
100N
100n
C93, C96, C97, C98, C99, C100, C101, C102 +13
1
10U
10u
C155
Show 18 more
QtyPartRefs
1
10N
10n
C163
1
1000P
1000p
C165
2
5K1
R1, R30
3
4.75K
R2, R3, R4
4
10K
R5, R10, R87, R157
1
49.9K
R6
1
20K
R7
5
220R
R8, R9, R12, R160, R161
1
22
R11
1
1K
R13
8
49R9
R88, R89, R94, R95, R96, R97, R98, R99
4
75R
R100, R101, R102, R103
1
12K
R158
1
8K06
R159
2
0R
R168, R171
1
1K3
R192
1
1K2
R193
1
1K5
R197

USB to GB Ethernet design files

The KiCad project lives in the Recepkoca/USB_to_GB_Ethernet repository on GitHub; these links point at the commit this page was built from.

USB to GB Ethernet: common questions

How big is the USB to GB Ethernet PCB?

The USB to GB Ethernet measures 55 × 20 mm, has 6 copper layers and is 1.6 mm thick.

How many components are on the USB to GB Ethernet?

98 components, from 38 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the USB to GB Ethernet design files?

From the Recepkoca/USB_to_GB_Ethernet repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the USB to GB Ethernet design in my own project?

The repository has no license, so all rights stay with Recepkoca. Use it as a reference, and ask the author before reusing the design.
