RP2350-Eins

About the RP2350-Eins PCB

RP2350-Eins is an open source RP2040/RP2350 PCB design by red-scorp, published on GitHub. It is a 4-layer board measuring 68.6 × 53.3 mm, with 70 components from 36 distinct parts.

Its main chip is the RP2350A-QFN60, from the RP2040/RP2350 family. Other key parts include the W25Q128JVS, AMS1117-5.0, W25Q128JVEIQ and AMS1117-3.3. By type, the board carries 24 capacitors, 15 resistors, 10 connectors, 5 ICs, 5 transistors and 5 diodes.

It belongs with the power & battery designs in this gallery.

From the project

RP2350-based board with Arduino Uno footprint

The RP2350-Eins project aims to create a replacement for the Arduino UNO R3 or Arduino M0 using the RP2350 MCU. This project was born as a continuation my previous project, RP2040-Eins, which was based on the Raspberry Pi RP2040 MCU.

The RP2350-Eins board is a 4-layer design intended to accommodate the popular Raspberry Pi RP2350 MCU within the standard Arduino UNO R3 footprint.

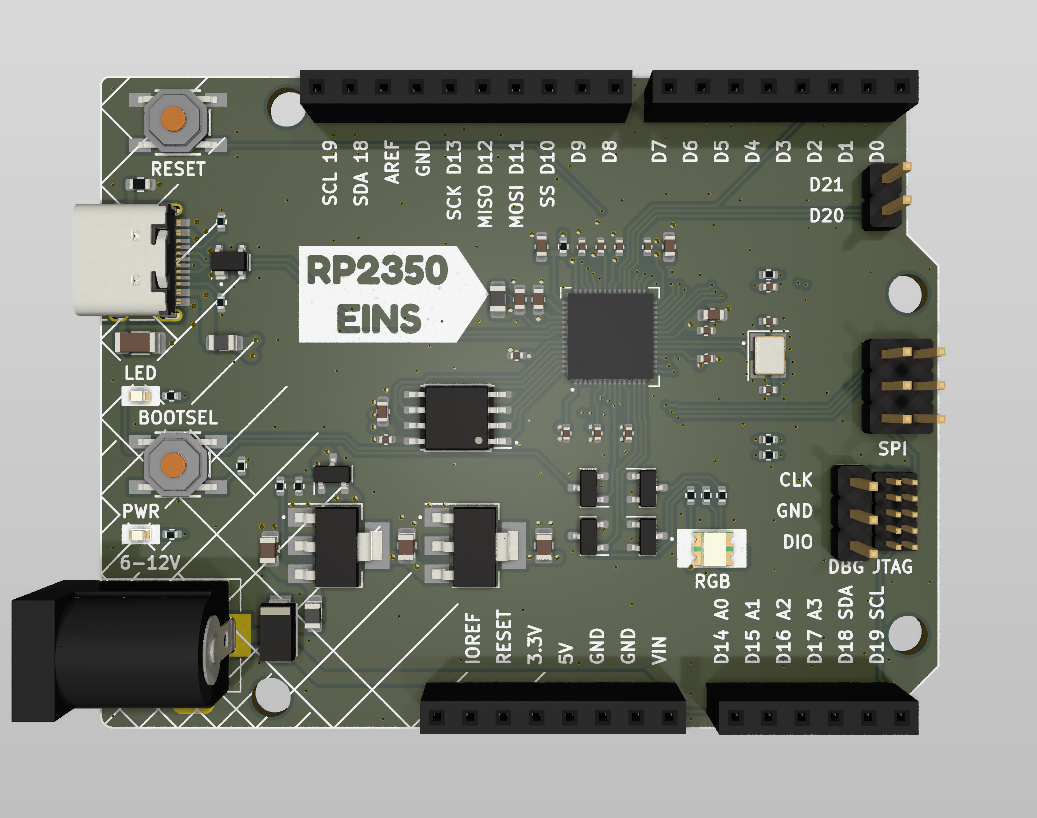

RP2350-Eins, from the project README — From the project README

Main components on the RP2350-Eins

W25Q128JVS RP2350A-QFN60 AMS1117-5.0 W25Q128JVEIQ AMS1117-3.3

RP2350-Eins bill of materials (BOM)

70 components, 36 distinct parts — part numbers from the project's BOM.

Qty	Part	Footprint	Refs
1	W25Q128JVS	SOIC-8_5.23x5.23mm_P1.27mm	U1
1	RP2350A-QFN60	RP2350A_QFN-60_EP_7.75x7.75_Pitch0.4mm	U2
1	AMS1117-5.0	SOT-223-3_TabPin2	U3
1	W25Q128JVEIQ	WSON-8-1EP_6x5mm_P1.27mm_EP3.4x4.3mm	U4
1	AMS1117-3.3	SOT-223-3_TabPin2	U5
1	AO3401A	SOT-23	Q1
4	AO3400A	SOT-23	Q2, Q3, Q4, Q5
1	12MHz	Crystal_SMD_3225-4Pin_3.2x2.5mm	Y1
1	CONN_PWR	BarrelJack_Horizontal	J1
1	CONN_ICSP	PinHeader_2x03_P2.54mm_Vertical	J2
1	CONN_A	PinSocket_1x06_P2.54mm_Vertical	J3
1	CONN_P	PinSocket_1x08_P2.54mm_Vertical	J4
1	CONN_X	PinHeader_1x02_P2.54mm_Vertical	J5
1	CONN_DBG	PinHeader_1x03_P2.54mm_Vertical	J6
1	CONN_JTAG	PinHeader_2x05_P1.27mm_Vertical	J7
1	CONN_D1	PinSocket_1x08_P2.54mm_Vertical	J8
1	CONN_D2	PinSocket_1x10_P2.54mm_Vertical	J9
1	CONN_USB	USB_C_Receptacle_HRO_TYPE-C-31-M-12	J10
1	BOOTSEL	Button_Tact_Sqkg	SW1
1	RESET	Button_Tact_Sqkg	SW2

Show 16 more

Qty	Part	Footprint	Refs
2	RED	LED_0603_1608Metric	D1, D2
1	PRTR5V0U2X	SOT-143	D3
1	XL-3227RGB-RF	LED_RGB_1210	D4
1	SS14	D_DO-214AC_SMA	D5
2	100@100MHz	L_0805_2012Metric	FB1, FB2
1	3.3uH	L_0805_2012Metric	L1
6	2.2uF	C_0603_1608Metric	C1, C5, C16, C17, C18, C23
12	100nF	C_0402_1005Metric	C2, C3, C4, C6, C7, C8, C9, C10 +4
3	10uF	C_0805_2012Metric	C12, C14, C15
2	12pF	C_0402_1005Metric	C19, C20
1	4.7nF 1kV	C_1206_3216Metric	C21
7	5k1	R_0402_1005Metric	R1, R6, R10, R11, R13, R14, R15
1	33	R_0402_1005Metric	R2
5	10k	R_0402_1005Metric	R3, R4, R5, R8, R9
1	1k	R_0402_1005Metric	R7
1	1M	R_0603_1608Metric	R12

RP2350-Eins design files

The KiCad project lives in the red-scorp/RP2350-Eins repository on GitHub; these links point at the commit this page was built from.

LayoutRP2350-Eins.kicad_pcb
SchematicRP2350-Eins.kicad_sch
BOMcam/RP2350-Eins-20240922-JLCPCB-BOM.xlsx

RP2350-Eins: common questions

What microcontroller does the RP2350-Eins use?

The RP2350-Eins is built around the RP2350A-QFN60, from the RP2040/RP2350 family.

How big is the RP2350-Eins PCB?

The RP2350-Eins measures 68.6 × 53.3 mm, has 4 copper layers and is 1.6062 mm thick.

How many components are on the RP2350-Eins?

70 components, from 36 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the RP2350-Eins design files?

From the red-scorp/RP2350-Eins repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the RP2350-Eins design in my own project?

The repository has no license, so all rights stay with red-scorp. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the RP2350-Eins without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug RP2040/RP2350 firmware against it before you order a PCB.
