Glhfkbd

redhotvengeance·glhfkbd·pcb/glhfkbd.kicad_pcb

Glhfkbd PCB layout, top view — open source STM32 board by redhotvengeance
Simulate this board

About the Glhfkbd PCB

Glhfkbd is an open source STM32 PCB design by redhotvengeance, published on GitHub under the MIT license. It is a 2-layer board measuring 296.5 × 103.6 mm, with 130 components from 21 distinct parts.

Its main chip is the STM32F072CBT6, from the STM32 family. Other key parts include the USBLC6-2SC6, TPS2116DRL and XC6206PXXXMR. By type, the board carries 62 diodes, 24 resistors, 22 capacitors, 10 ICs, 4 connectors and 4 fuses.

It belongs with the keyboards designs in this gallery.

From the project

Features: - Extremely minimalist design -- no bevels, no edges, just keys! - Split body, for da ergonomics - Row-staggered, for da muscle memory - A "Y" and "B" key on both halves, for da bad typists - Supports hotswap MX sockets - Fully embedded electronics -- no dev boards! - U

Features: - Extremely minimalist design -- no bevels, no edges, just keys! - Split body, for da ergonomics - Row-staggered, for da muscle memory - A "Y" and "B" key on both halves, for da bad typists - Supports hotswap MX sockets - Fully embedded electronics -- no dev boards! - USB-C for the wired interconnect -- no live TRRS shorts! - Either side can act as the host - Driven by QMK firmware and fully customizable

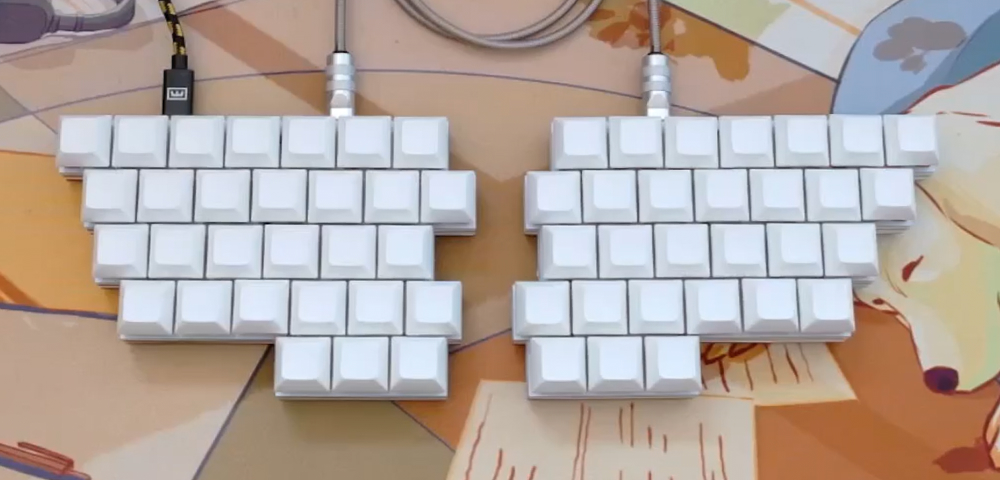

Glhfkbd, from the project README
From the project README

Main components on the Glhfkbd

STM32F072CBT6USBLC6-2SC6TPS2116DRLXC6206PXXXMR

Glhfkbd bill of materials (BOM)

130 components, 21 distinct parts — part numbers from the project's BOM.

QtyPartRefs
2
STM32F072CBT6
STMicroelectronics
U1, U2
4
USBLC6-2SC6
TECH PUBLIC
U3, U4, U5, U6
2
TPS2116DRL
Texas Instruments
U7, U8
2
XC6206PXXXMR
XC6206PxxxMR
Torex Semicon
U9, U10
4
USB2.0_16P
Korean Hroparts Elec
J1, J2, J3, J4
4
C210357
500mA Polyfuse
BOURNS
F1, F2, F3, F4
2
SW_Push
XUNPU
SW1, SW2
58
C81598
D_Small
ST(Semtech)
D1, D2, D3, D4, D5, D6, D7, D8 +50
2
C22452
D_Schottky
MDD(Microdiode Semiconductor)
D59, D60
2
C2286
RED
Hubei KENTO Elec
D61, D62
2
120R
Murata Electronics
FB1, FB2
6
10U
10u
Samsung Electro-Mechanics
C1, C9, C17, C18, C19, C20
10
100N
100n
Samsung Electro-Mechanics
C2, C3, C4, C5, C10, C11, C12, C13 +2
2
10N
10n
Samsung Electro-Mechanics
C6, C14
4
1u
Samsung Electro-Mechanics
C7, C8, C15, C16
4
5K1
5k1
UNI-ROYAL(Uniroyal Elec)
R1, R2, R3, R4
4
120
R5, R6, R11, R12
8
9K1
9k1
R7, R8, R9, R10, R13, R14, R15, R16
2
33K
33k
UNI-ROYAL(Uniroyal Elec)
R17, R19
4
10K
10k
UNI-ROYAL(Uniroyal Elec)
R18, R20, R23, R24
Show 1 more
QtyPartRefs
2
1k
UNI-ROYAL(Uniroyal Elec)
R21, R22

Glhfkbd design files

The KiCad project lives in the redhotvengeance/glhfkbd repository on GitHub; these links point at the commit this page was built from.

Glhfkbd: common questions

What microcontroller does the Glhfkbd use?

The Glhfkbd is built around the STM32F072CBT6, from the STM32 family.

How big is the Glhfkbd PCB?

The Glhfkbd measures 296.5 × 103.6 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Glhfkbd?

130 components, from 21 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Glhfkbd design files?

From the redhotvengeance/glhfkbd repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Glhfkbd design in my own project?

Yes, under the terms of its MIT license, which redhotvengeance chose for the repository.

Can I test firmware for the Glhfkbd without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug STM32 firmware against it before you order a PCB.
