My Macropad

RedSystems586·My_Macropad·PCB/Macropad.kicad_pcb

My Macropad PCB layout, top view — open source RP2040/RP2350 board by RedSystems586

About the My Macropad PCB

My Macropad is an open source RP2040/RP2350 PCB design by RedSystems586, published on GitHub. It is a 2-layer board measuring 61.9 × 64.3 mm, with 14 components from 4 distinct parts.

Its main chip is the XIAO-RP2040-DIP, from the RP2040/RP2350 family. By type, the board carries 7 switches, 6 diodes and 1 IC.

It belongs with the keyboards and displays & leds designs in this gallery.

From the project

My Macropad with Hackclub

Welcome to my Macropad project! This repository contains all the design files for the case, the PCB, and the firmware necessary to build this custom keypad.

This project is a fully custom-designed macropad built around the Seeed XIAO RP2040 microcontroller. Designed as part of the Hack Club submission, the goal was to create a functional, budget-friendly input device.

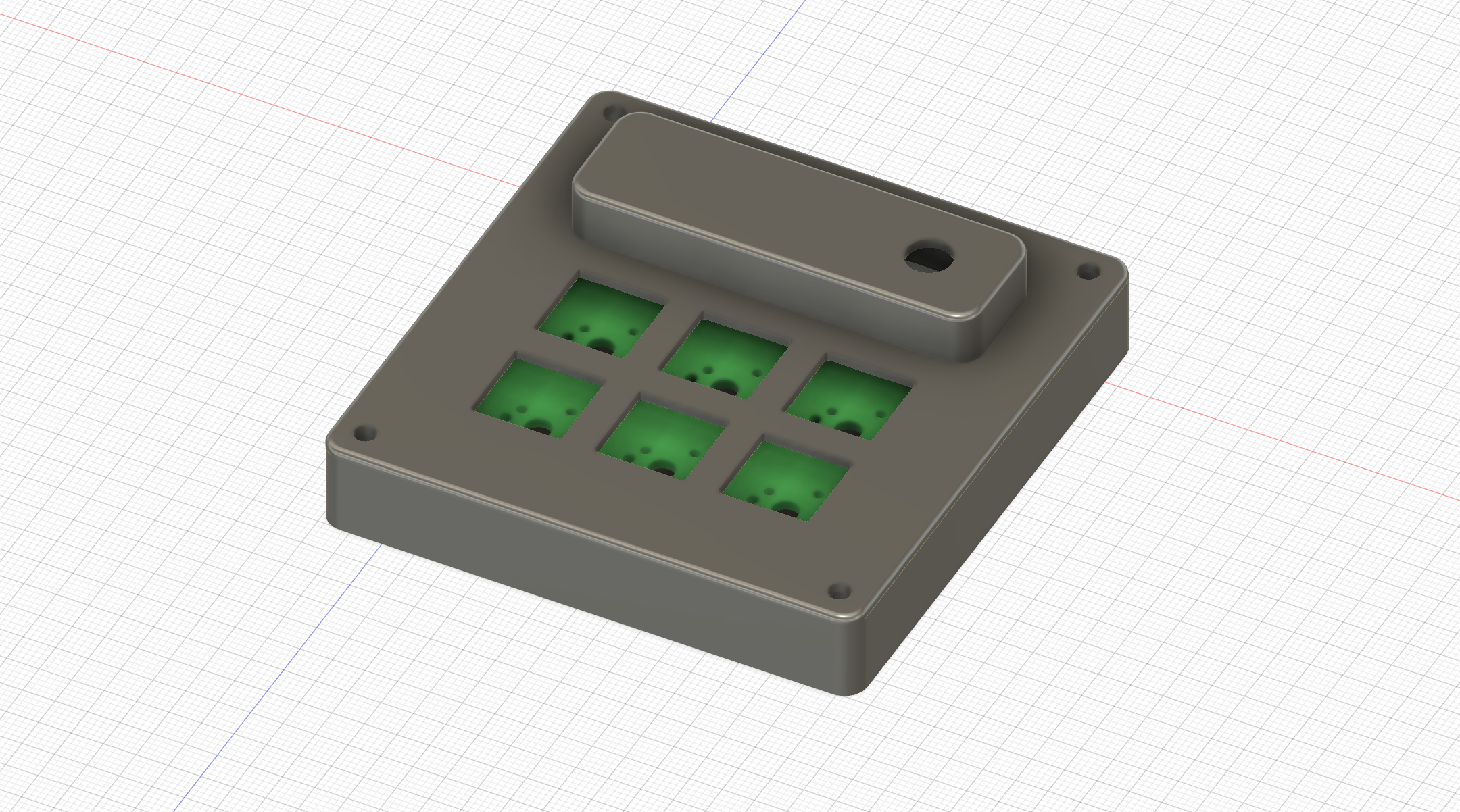

My Macropad, from the project README
From the project README

Main components on the My Macropad

XIAO-RP2040-DIP

My Macropad bill of materials (BOM)

14 components, 4 distinct parts.

QtyPartRefs
1
XIAO-RP2040-DIP
U1
6
SW_Push
SW1, SW2, SW3, SW4, SW5, SW6
1
RotaryEncoder_Switch
SW7
6
SK6812MINI
D1, D2, D3, D4, D5, D6

My Macropad design files

The KiCad project lives in the RedSystems586/My_Macropad repository on GitHub; these links point at the commit this page was built from.

My Macropad: common questions

What microcontroller does the My Macropad use?

The My Macropad is built around the XIAO-RP2040-DIP, from the RP2040/RP2350 family.

How big is the My Macropad PCB?

The My Macropad measures 61.9 × 64.3 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the My Macropad?

14 components, from 4 distinct parts. The full bill of materials is listed on this page.

Where can I download the My Macropad design files?

From the RedSystems586/My_Macropad repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the My Macropad design in my own project?

The repository has no license, so all rights stay with RedSystems586. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the My Macropad without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug RP2040/RP2350 firmware against it before you order a PCB.
