TWIST-board
About the TWIST-board
TWIST-board is an open source PCB design by RenewableEnergyNexus, published on GitHub. It is a 6-layer board measuring 100 × 160 mm, with 325 components from 85 distinct parts.
Other key parts include the AMC1100DUB, ACS730xLCTR-20AB, UCC21222DR, MCP6486UT-E/LT and FODM217A. By type, the board carries 107 capacitors, 103 resistors, 28 ICs, 22 test points, 17 jumpers and 16 diodes.
From the project

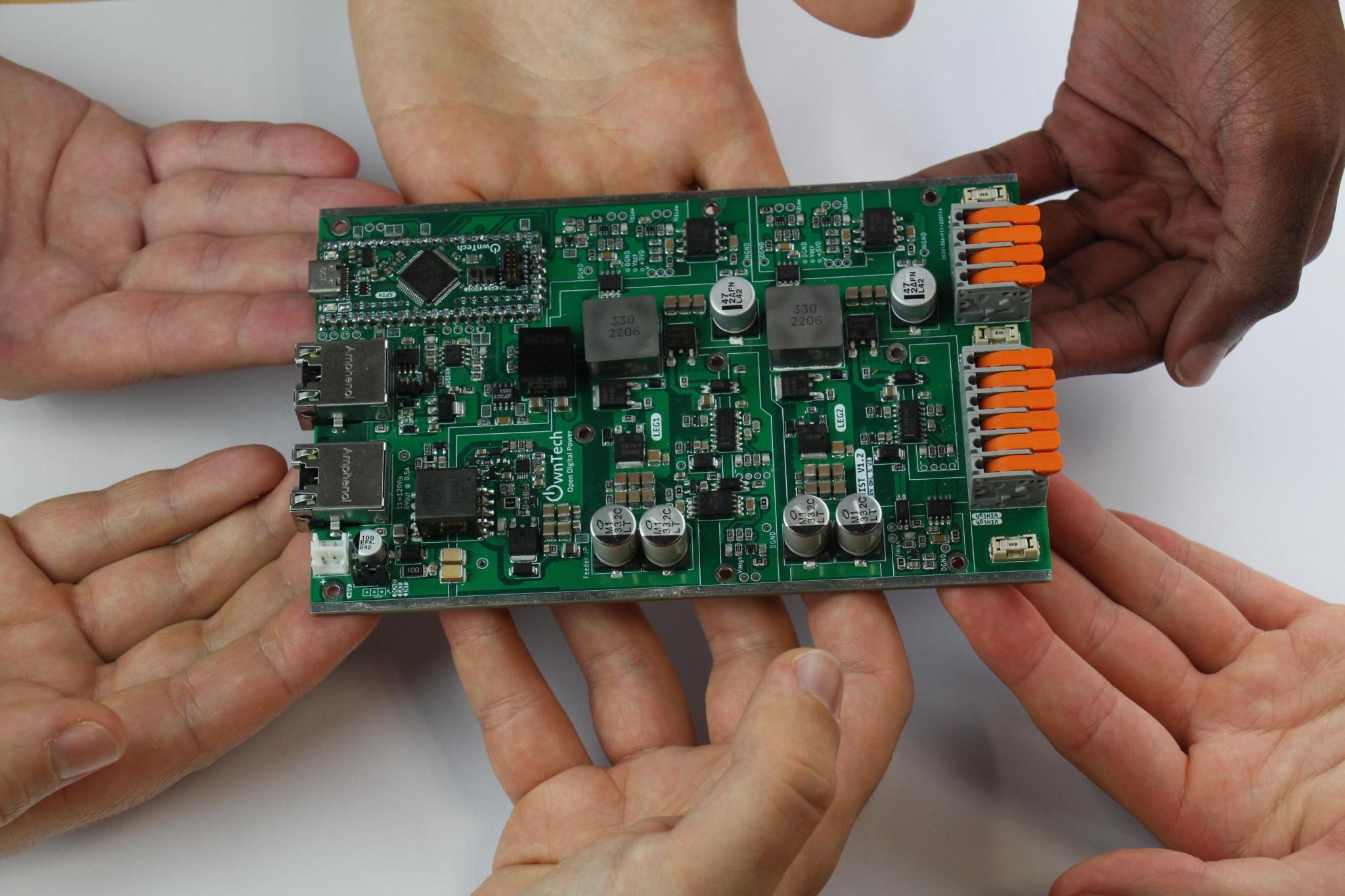

OwnTech's TWIST reprogrammable power converter is a bi-directional 300W power converter. It features a dual 12V to 72V low side and a single 10V to 100V high side. Its maximum current value is 8A per power channel. The power channels can be used independently, yielding two output
OwnTech's TWIST reprogrammable power converter is a bi-directional 300W power converter. It features a dual 12V to 72V low side and a single 10V to 100V high side. Its maximum current value is 8A per power channel. The power channels can be used independently, yielding two output voltages or combined to double the current.
A reasonable power rating is 300W. The converter is meant to operate at 200kHz with interleaving control.
Main components on the TWIST-board
TWIST-board bill of materials (BOM)
325 components, 85 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 2 | AMC1100DUB | SOP-8_6.62x9.15mm_P2.54mm | U201, U301 |
| 2 | ACS730xLCTR-20AB | SOIC-8_3.9x4.9mm_P1.27mm | U202, U302 |
| 2 | UCC21222DR | SOIC-16_3.9x9.9mm_P1.27mm | U203, U303 |
| 7 | MCP6486UT-E/LT | SOT-353_SC-70-5_Handsoldering | U204, U205, U304, U305, U506, U603, U604 |
| 5 | FODM217A | SO-4_4.4x2.3mm_P1.27mm | U206, U207, U306, U307, U502 |
| 1 | OwnTech_SPIN | OwnTech_SPINTHT | U401 |
| 1 | TCAN334GDR | SOIC-8_3.9x4.9mm_P1.27mm | U402 |
| 1 | MAX33046EASA+T | SOIC-8_3.9x4.9mm_P1.27mm | U405 |
| 1 | MCP6487T-E/SN | SOIC-8_3.9x4.9mm_P1.27mm | U406 |
| 1 | NCP12700ADNR2G | MSOP-10_3x3mm_P0.5mm | U501 |
| 1 | TL431MFDT,215 | SOT-23_copy | U503 |
| 2 | AZ1117CH-5.0TRG1 | SOT-223-3_TabPin2 | U504, U505 |
| 1 | AMC1311BDWVR | SOIC-8_7.5x5.85mm_P1.27mm | U601 |
| 1 | +-20A Hall | SOIC-8_3.9x4.9mm_P1.27mm | U602 |
| 4 | IPD200N15N3 | TO-252-2 | Q201, Q202, Q301, Q302 |
| 2 | DMN10H220L-7 | SOT-23 | Q203, Q303 |
| 2 | DMP3099-x | SOT-23 | Q204, Q304 |
| 1 | DMN10H220L-7 | SOT-23_copy | Q501 |
| 1 | TK13P25D,RQ | TO-252-2 | Q502 |
| 1 | Harting - 15contacts and Wago | Harting - 15contacts and Wago | J101 |
Show 65 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 2 | RJE721881411 | ethernet_RJE721881411 | J403, J404 |
| 2 | B2B-EH-A(LF)(SN) | JST_EH_B2B-EH-A_1x02_P2.50mm_Vertical | J501, J502 |
| 1 | Header_2_54_01x03 | PinHeader_1x03_P2.54mm_Vertical | J505 |
| 3 | 8A | Fuse_holder_omni_blok | F101, F102, F103 |
| 2 | 0ZCH0035FF2G | Fuse_1210_3225Metric | F501, F502 |
| 2 | Jumper | PinHeader_1x02_P2.54mm_Vertical | JP401, JP403 |
| 1 | Jumper_2_Open | PinHeader_1x02_P2.54mm_Vertical | JP402 |
| 8 | Jumper_2_Bridged | SolderJumper-2_P1.3mm_Bridged_RoundedPad1.0x1.5mm | JP405, JP406, JP411, JP412, JP413, JP414, JP415, JP417 |
| 3 | SolderJumper_2_Open | SolderJumper-2_P1.3mm_Open_RoundedPad1.0x1.5mm | JP408, JP409, JP601 |
| 1 | Jumper_2_Bridged | SolderJumper-2_P1.3mm_Open_RoundedPad1.0x1.5mm | JP410 |
| 1 | Jumper_2_Bridged | SolderJumper-2_P1.3mm_Bridged2Bar_RoundedPad1.0x1.5mm | JP501 |
| 1 | SolderJumper | SolderJumper-2_P1.3mm_Bridged_RoundedPad1.0x1.5mm | JP502 |
| 1 | Housing_Pad | Guard_ring | N101 |
| 1 | 100kNTC | R_0805_2012Metric | NTC501 |
| 1 | IL0512S | SMU02_Mean_Well | PS501 |
| 1 | PA2467NL | PA2467NL | T501 |
| 2 | NXFT15XH103FA2B100 | PinHeader_1x02_P2.00mm_Vertical | TH401, TH402 |
| 20 | TestPoint | TestPoint_THTPad_D1.5mm_Drill0.7mm | TP201, TP202, TP203, TP204, TP205, TP206, TP207, TP208 +12 |
| 1 | GND2 | TestPoint_THTPad_D2.0mm_Drill1.0mm | TP598 |
| 1 | PGND | TestPoint_THTPad_D2.0mm_Drill1.0mm | TP599 |
| 4 | PU3DBH | D_SMB | D201, D301, D504, D507 |
| 7 | PMEG3010CEJ,115 | D_SOD-323_HandSoldering | D202, D203, D302, D303, D403, D502, D503 |
| 2 | RB168MM150TR | D_SOD-123 | D205, D305 |
| 1 | 6.2V | D_SOD-123 | D501 |
| 2 | BAS20HT1G | D_SOD-323_HandSoldering | D505, D506 |
| 2 | 33uH | SRP1510CA-330M | L201, L301 |
| 1 | 100uH | L_0805_2012Metric | L501 |
| 1 | 10uH | L_1210_3225Metric | L502 |
| 1 | 22uH | L_1210_3225Metric | L503 |
| 29 | 100nF | C_1206_3216Metric | C201, C202, C204, C205, C211, C213, C214, C216 +21 |
| 2 | 47uF | CP_Elec_10x10.5 | C203, C303 |
| 22 | 4.7uF | C_1210_3225Metric | C206, C209, C212, C224, C225, C226, C227, C228 +14 |
| 14 | 20pF | C_0805_2012Metric | C207, C208, C215, C221, C307, C308, C315, C321 +6 |
| 7 | 1nF | C_0805_2012Metric | C210, C222, C310, C322, C505, C514, C602 |
| 10 | 10uF | C_1210_3225Metric | C218, C318, C515, C522, C523, C524, C525, C527 +2 |
| 4 | 1uF | C_0805_2012Metric | C219, C319, C507, C509 |
| 2 | 100nF | C_1206_3216Metric_Pad1.33x1.80mm_HandSolder | C223, C323 |
| 4 | 33uF | CP_Elec_10x10.5 | C230, C231, C330, C331 |
| 3 | 22nF | C_0805_2012Metric | C402, C503, C504 |
| 2 | 100pF | C_1206_3216Metric | C506, C511 |
| 1 | 100nF | C_0805_2012Metric | C508 |
| 2 | 6.8nF | C_0805_2012Metric | C510, C516 |
| 2 | 2.2nF | C_1812_4532Metric | C512, C513 |
| 2 | 470nF | C_0805_2012Metric | C519, C520 |
| 1 | 100uF | CP_Elec_6.3x7.7 | C521 |
| 4 | 1M | R_0805_2012Metric | R201, R206, R301, R306 |
| 2 | 150k | R_0805_2012Metric | R202, R302 |
| 9 | 470R | R_0805_2012Metric | R203, R212, R226, R303, R314, R326, R402, R404 +1 |
| 7 | 51R | R_0805_2012Metric | R204, R205, R224, R304, R305, R324, R408 |
| 10 | 20k | R_0805_2012Metric | R207, R218, R222, R307, R318, R322, R406, R407 +2 |
| 10 | 27k | R_0805_2012Metric | R208, R209, R308, R309, R421, R518, R603, R604 +2 |
| 11 | 12k | R_0805_2012Metric | R210, R211, R213, R221, R310, R311, R313, R321 +3 |
| 9 | 2.2R | R_0805_2012Metric | R214, R215, R216, R312, R315, R316, R505, R519 +1 |
| 6 | 5.9k | R_0805_2012Metric | R217, R223, R317, R323, R608, R610 |
| 18 | 4.7k | R_0805_2012Metric | R219, R220, R319, R320, R403, R405, R409, R411 +10 |
| 2 | 120R | R_0805_2012Metric | R401, R410 |
| 2 | 47k | R_0805_2012Metric | R501, R520 |
| 1 | 100k | R_0805_2012Metric | R503 |
| 3 | 1.4k | R_0805_2012Metric | R504, R512, R514 |
| 3 | 10R | R_0805_2012Metric | R507, R511, R516 |
| 2 | 330k | R_0805_2012Metric | R509, R601 |
| 1 | 240m | R_1210_3225Metric | R510 |
| 1 | 10R | R_2010_5025Metric | R513 |
| 1 | 38.3k | R_0805_2012Metric | R517 |
| 1 | 5.6k | R_0805_2012Metric | R602 |
TWIST-board design files
The KiCad project lives in the RenewableEnergyNexus/TWIST-board repository on GitHub; these links point at the commit this page was built from.
- LayoutKiCAD_files/Power.kicad_pcb
- SchematicKiCAD_files/Power.kicad_sch
TWIST-board: common questions
How big is the TWIST-board?
The TWIST-board measures 100 × 160 mm, has 6 copper layers and is 1.39 mm thick.
How many components are on the TWIST-board?
325 components, from 85 distinct parts. The full bill of materials is listed on this page.
Where can I download the TWIST-board design files?
From the RenewableEnergyNexus/TWIST-board repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the TWIST-board design in my own project?
The repository has no license, so all rights stay with RenewableEnergyNexus. Use it as a reference, and ask the author before reusing the design.
