Development board ch552

ricelectric·development-board-ch552·kicad/development_board_ch552.kicad_pcb

Development board ch552 layout, top view — open source WCH CH32/CH55x board by ricelectric
Simulate this board

About the Development board ch552

Development board ch552 is an open source WCH CH32/CH55x PCB design by ricelectric, published on GitHub under the MIT license. It is a 2-layer board measuring 32.5 × 15.8 mm, with 10 components from 8 distinct parts.

Its main chip is the CH552T, from the WCH CH32/CH55x family. By type, the board carries 3 connectors, 2 capacitors, 2 resistors, 1 IC, 1 switch and 1 diode.

It belongs with the dev boards & breakouts designs in this gallery.

From the project

This is a cheap and small Arduino compatible board.

This is an open source repository for a development board based on CH552T. More information is available here.

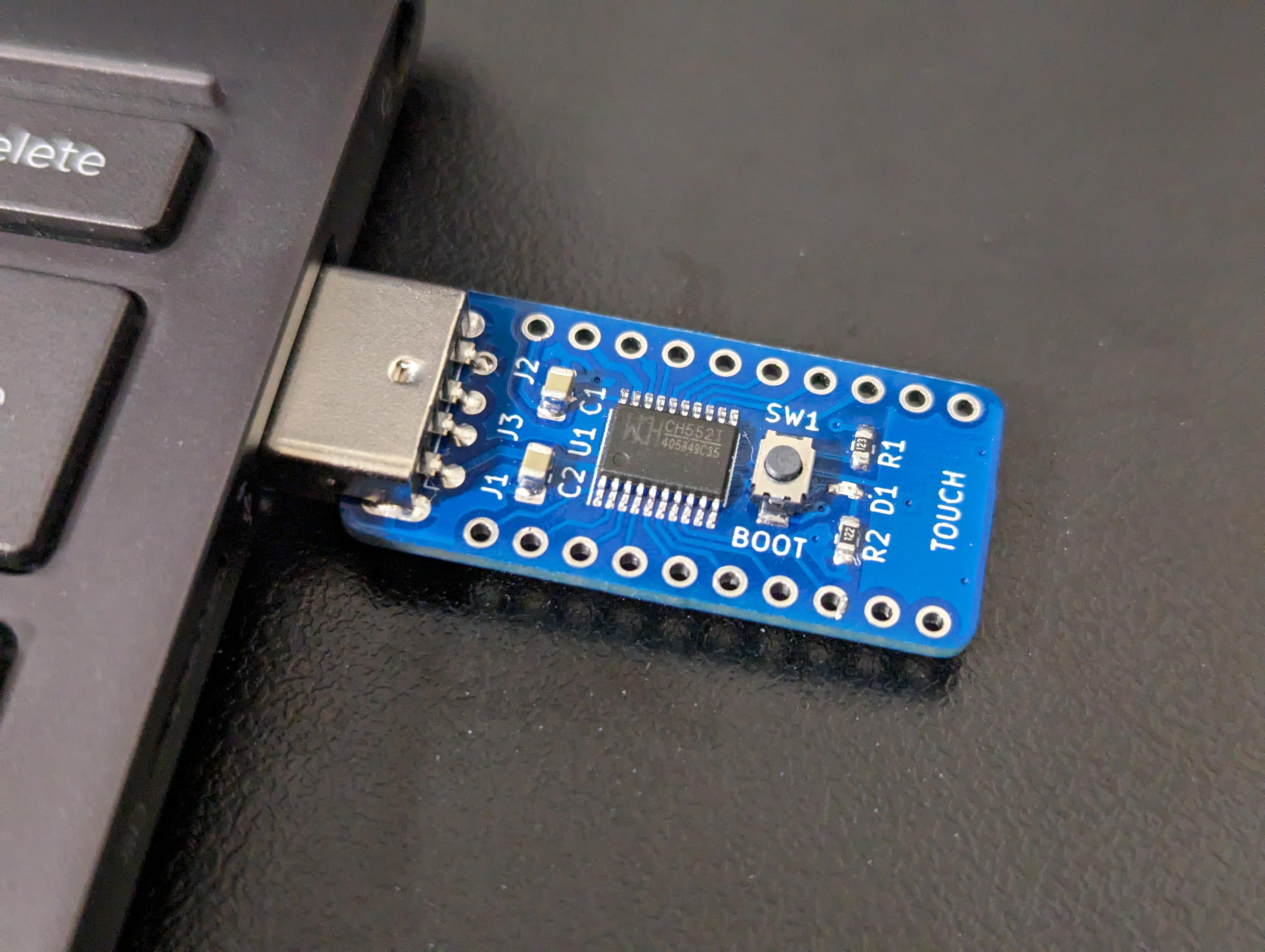

Development board ch552, from the project README
From the project README

Main components on the Development board ch552

CH552T

Development board ch552 bill of materials (BOM)

10 components, 8 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
CH552T
U1
2
CONN_01X10
Conn_01x10
J1, J2
1
USB_A
J3
1
BOOT
SW1
1
LED
D1
2
100N
100n
C1, C2
1
10K
10k
R1
1
1k
R2

Development board ch552 design files

The KiCad project lives in the ricelectric/development-board-ch552 repository on GitHub; these links point at the commit this page was built from.

Development board ch552: common questions

What microcontroller does the Development board ch552 use?

The Development board ch552 is built around the CH552T, from the WCH CH32/CH55x family.

How big is the Development board ch552?

The Development board ch552 measures 32.5 × 15.8 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Development board ch552?

10 components, from 8 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Development board ch552 design files?

From the ricelectric/development-board-ch552 repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Development board ch552 design in my own project?

Yes, under the terms of its MIT license, which ricelectric chose for the repository.

Can I test firmware for the Development board ch552 without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug WCH CH32/CH55x firmware against it before you order a PCB.
