Usb pd decoy
About the Usb pd decoy PCB
Usb pd decoy is an open source PCB design by ricelectric, published on GitHub under the MIT license. It is a 2-layer board measuring 40.6 × 16.5 mm, with 12 components from 9 distinct parts.
Other key parts include the CH224K. By type, the board carries 6 resistors, 2 connectors, 1 IC, 1 switch, 1 diode and 1 capacitor.
It belongs with the power & battery designs in this gallery.
From the project

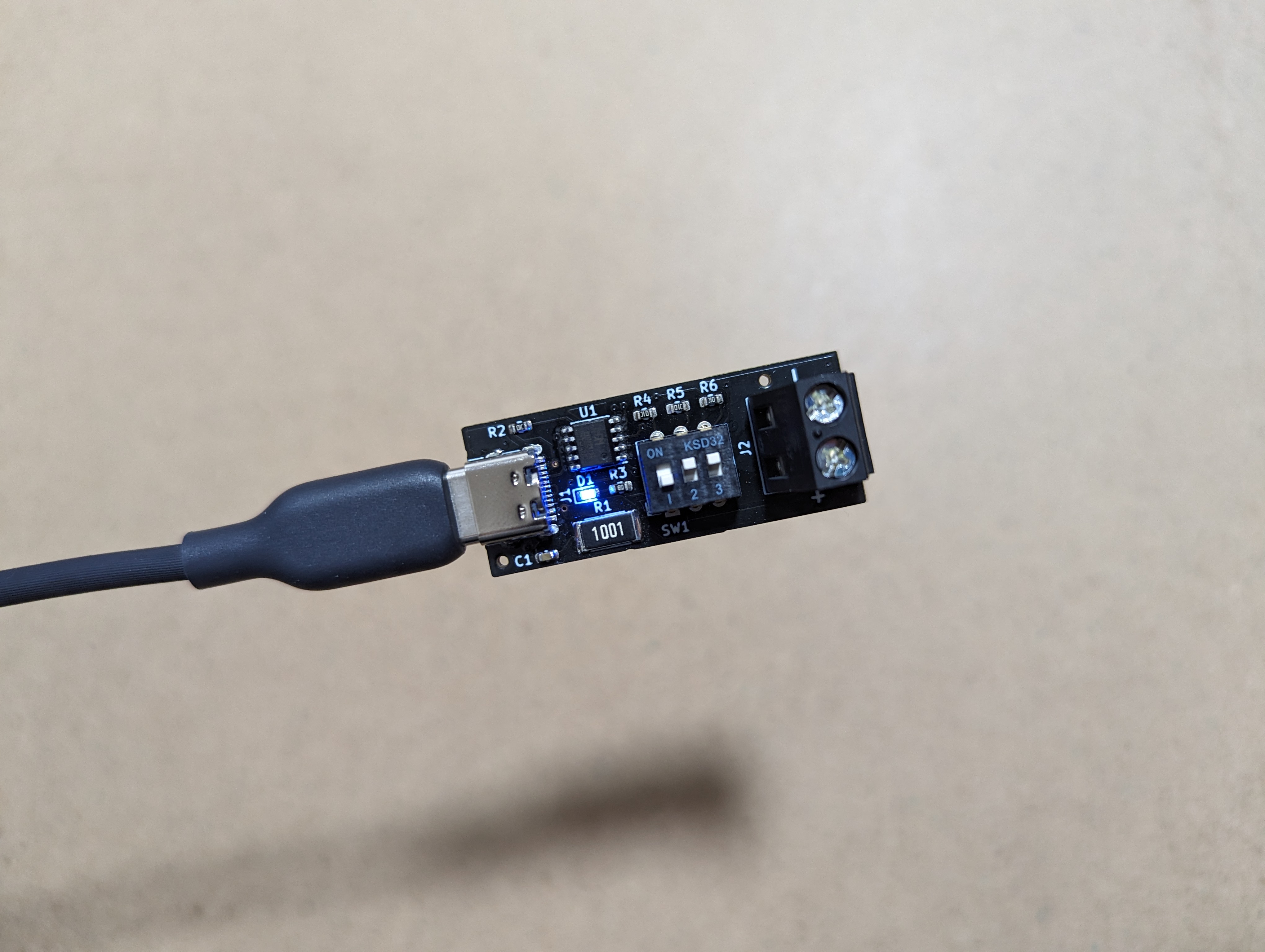

This is a small module that handles the USB PD negotiation and simply outputs a specific DC voltage.
This is an open source repository for a USB PD decoy module using CH224K. More information is available here.
Main components on the Usb pd decoy
Usb pd decoy bill of materials (BOM)
12 components, 9 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | CH224K | ESSOP-10_3.9x4.9mm_P1.00mm | U1 |
| 1 | USB_C_RECEPTACLE_USB2.0 USB_C_Receptacle_USB2.0 | USB_C_Receptacle_XKB_U262-16XN-4BVC11 | J1 |
| 1 | SCREW_TERMINAL_01X02 Screw_Terminal_01x02 | TerminalBlock_Phoenix_MKDS-1,5-2-5.08_1x02_P5.08mm_Horizontal | J2 |
| 1 | SW_DIP_X03 SW_DIP_x03 | SW_DIP_SPSTx03_Slide_7.5x9.6mm_W7.62mm_P2.54mm | SW1 |
| 1 | C72041 PWR | LED_0603_1608Metric | D1 |
| 1 | 1u | C_0603_1608Metric | C1 |
| 1 | 1k | R_2512_6332Metric | R1 |
| 4 | 10K 10k | R_0603_1608Metric | R2, R4, R5, R6 |
| 1 | 1k | R_0603_1608Metric | R3 |
Usb pd decoy design files
The KiCad project lives in the ricelectric/usb-pd-decoy repository on GitHub; these links point at the commit this page was built from.
Usb pd decoy: common questions
How big is the Usb pd decoy PCB?
The Usb pd decoy measures 40.6 × 16.5 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Usb pd decoy?
12 components, from 9 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Usb pd decoy design files?
From the ricelectric/usb-pd-decoy repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the Usb pd decoy design in my own project?
Yes, under the terms of its MIT license, which ricelectric chose for the repository.
