Hackpad PCB layout, top view — open source RP2040/RP2350 board by Rishabh416

About the Hackpad PCB

Hackpad is an open source RP2040/RP2350 PCB design by Rishabh416, published on GitHub. It is a 2-layer board measuring 64 × 70 mm, with 17 components from 5 distinct parts.

Its main chip is the XIAO-RP2040-DIP, from the RP2040/RP2350 family. By type, the board carries 9 diodes, 6 switches, 1 IC and 1 connector.

It belongs with the keyboards and displays & leds designs in this gallery.

From the project

This is a 6 key macropad with a rotary encoder and a OLED display along with 3 LEDs.

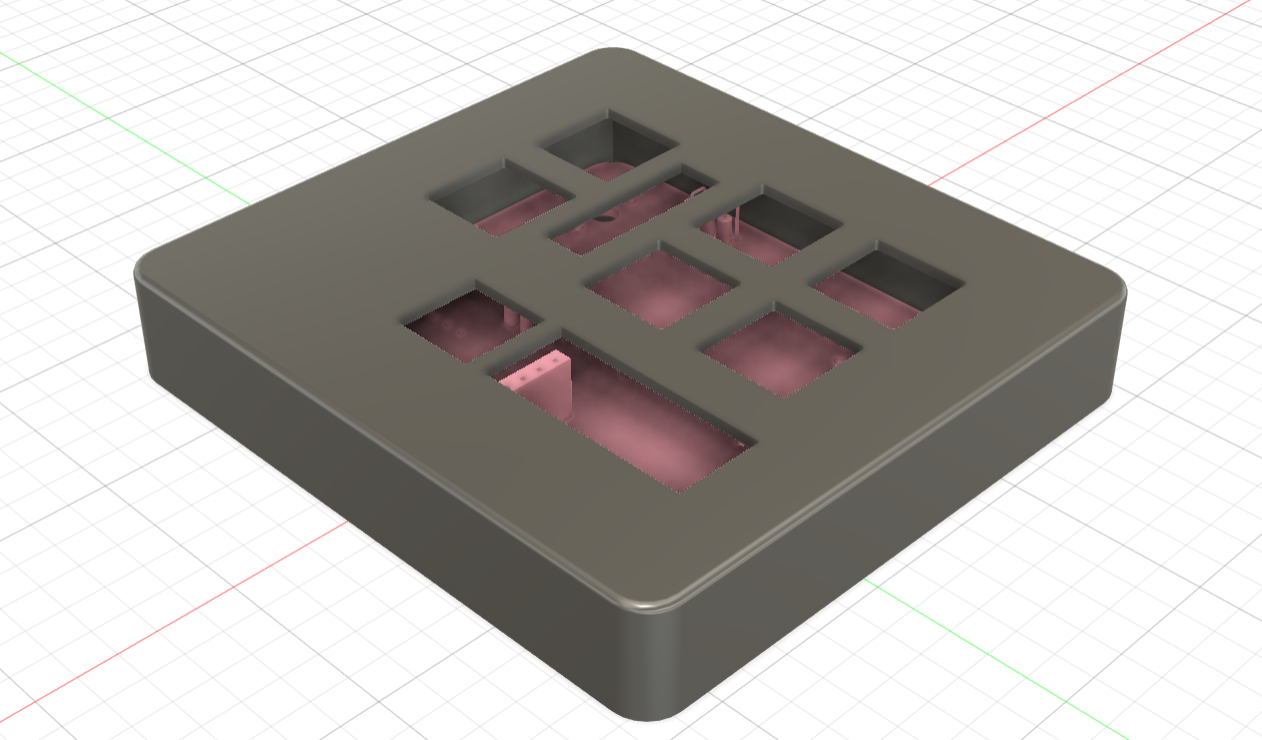

Hackpad, from the project README
From the project README

Main components on the Hackpad

XIAO-RP2040-DIP

Hackpad bill of materials (BOM)

17 components, 5 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
XIAO-RP2040-DIP
U1
1
CONN_01X04_SOCKET
Conn_01x04_Socket
J3
6
SW_Push
SW2, SW3, SW4, SW5, SW6, SW7
6
D
D1, D2, D3, D4, D5, D6
3
SK6812MINI
D7, D8, D9

Hackpad design files

The KiCad project lives in the Rishabh416/hackpad repository on GitHub; these links point at the commit this page was built from.

Hackpad: common questions

What microcontroller does the Hackpad use?

The Hackpad is built around the XIAO-RP2040-DIP, from the RP2040/RP2350 family.

How big is the Hackpad PCB?

The Hackpad measures 64 × 70 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Hackpad?

17 components, from 5 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Hackpad design files?

From the Rishabh416/hackpad repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Hackpad design in my own project?

The repository has no license, so all rights stay with Rishabh416. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the Hackpad without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug RP2040/RP2350 firmware against it before you order a PCB.
