About the Rks hackpad PCB
Rks hackpad is an open source RP2040/RP2350 PCB design by rk-kaps, published on GitHub. It is a 2-layer board measuring 3.6 × 3.3 mm, with 38 components from 5 distinct parts.
Its main chip is the XIAO-RP2040-DIP, from the RP2040/RP2350 family. By type, the board carries 12 switches, 12 LEDs, 12 diodes and 1 IC.
It belongs with the keyboards and displays & leds designs in this gallery.
From the project

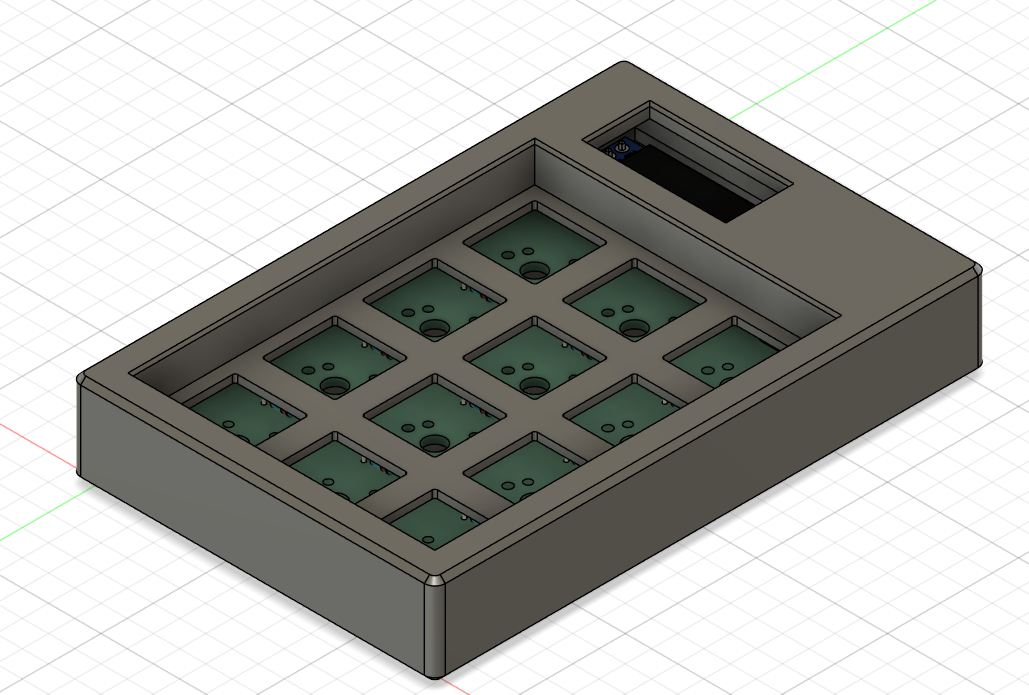

new and simpler hackpad
This Hackpad began as a simple volume controller. It evolved into a fully-featured macropad focused on:
- Speeding up workflows - Reducing repetitive actions - Providing intuitive visual feedback - Maximizing functionality within hardware constraints
- Dual-core RP2040 at up to 133MHz via the compact Seeed XIAO form factor - Per-key RGB lighting using SK6812 MINI-E reverse-mount LEDs for clean underglow - 0.91" OLED display for real-time visual feedback and animations - Keyboard matrix protected by 1N4148 diodes for reliable n-key rollover - Brass heatset inserts for durable, reusable screw…

Main components on the Rks hackpad
Rks hackpad bill of materials (BOM)
38 components, 5 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | XIAO-RP2040-DIP | XIAO-RP2040-DIP | U2 |
| 1 | OLED | Adafruit_SSD1306 | OL1 |
| 12 | SW_Push | SW_Cherry_MX_1.00u_PCB | SW1, SW2, SW3, SW4, SW5, SW6, SW7, SW8 +4 |
| 12 | SK6812MINI-E | LED_6028R | LED1, LED2, LED3, LED4, LED5, LED6, LED7, LED8 +4 |
| 12 | 1N4148 | D_DO-35_SOD27_P7.62mm_Horizontal | D1, D2, D3, D4, D5, D6, D7, D8 +4 |
Rks hackpad design files
The KiCad project lives in the rk-kaps/rks-hackpad repository on GitHub; these links point at the commit this page was built from.
- LayoutPCB/rks hackpad.kicad_pcb
- SchematicPCB/rks hackpad.kicad_sch
- BOMkeyboard_bom (1).xlsx
Rks hackpad: common questions
What microcontroller does the Rks hackpad use?
The Rks hackpad is built around the XIAO-RP2040-DIP, from the RP2040/RP2350 family.
How big is the Rks hackpad PCB?
The Rks hackpad measures 3.6 × 3.3 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Rks hackpad?
38 components, from 5 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Rks hackpad design files?
From the rk-kaps/rks-hackpad repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the Rks hackpad design in my own project?
The repository has no license, so all rights stay with rk-kaps. Use it as a reference, and ask the author before reusing the design.
Can I test firmware for the Rks hackpad without the hardware?
Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug RP2040/RP2350 firmware against it before you order a PCB.
