RKS-KEYBOARD PCB layout, top view — open source RP2040/RP2350 board by rk-kaps

About the RKS-KEYBOARD PCB

RKS-KEYBOARD is an open source RP2040/RP2350 PCB design by rk-kaps, published on GitHub. It is a 2-layer board measuring 418.3 × 124.6 mm, with 419 components from 15 distinct parts.

Its main chip is the YD-RP2040, from the RP2040/RP2350 family. Other key parts include the 74AHCT125. By type, the board carries 206 diodes, 105 capacitors, 103 switches, 2 resistors, 1 IC and 1 module.

It belongs with the keyboards and displays & leds designs in this gallery.

From the project

qmk keyboard

A mechanical keyboard build on YD-RP2040 with an OLED display and backlights

A sligthly modified 96% keyboard layout with 4 extra keys for managing onboard firmware (103 keys total)

It's a keyboard with a customisable OLED that helps to manage, and control parts of the firmware like changing backlighting color, showing typing speed and much more

The firmware is also open-source so anyone can customise and add features to their keyboard

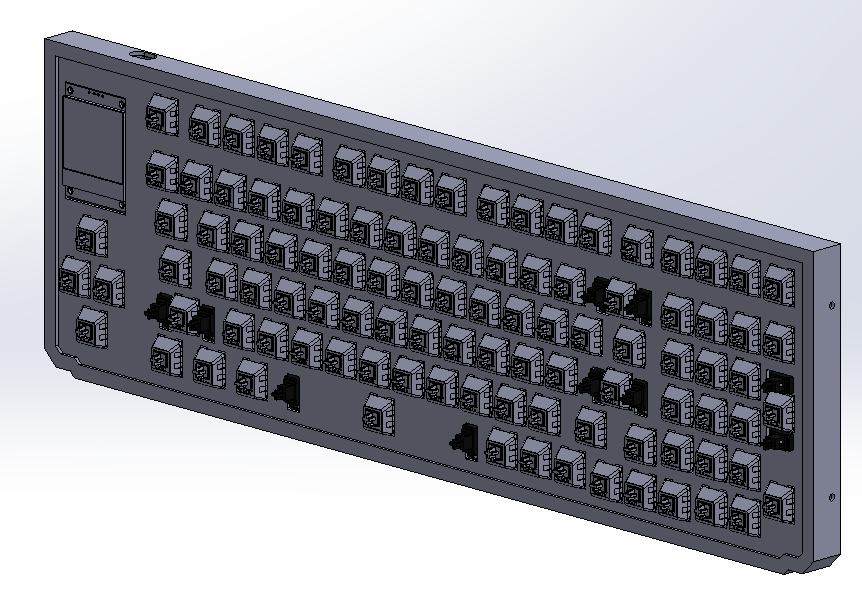

RKS-KEYBOARD, from the project README
From the project README

Main components on the RKS-KEYBOARD

74AHCT125YD-RP2040

RKS-KEYBOARD bill of materials (BOM)

419 components, 15 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
74AHCT125
U1
1
YD-RP2040
A1
1
Conn_OLED_I2C
J2
2
Keyswitch
S1, S14
90
Keyswitch
S2, S3, S4, S5, S6, S7, S8, S9 +82
2
Keyswitch
S15, S39
2
Keyswitch
S27, S28
3
Keyswitch
S40, S41, S42
1
Keyswitch
S43
1
Keyswitch
S61
2
Keyswitch
S93, S94
103
Diode
D1, D2, D3, D4, D5, D6, D7, D8 +95
103
SK6812MINI
D104, D105, D106, D107, D108, D109, D110, D111 +95
105
100nF
C1, C2, C3, C4, C5, C6, C7, C8 +97
2
4k7
R1, R2

RKS-KEYBOARD design files

The KiCad project lives in the rk-kaps/RKS-KEYBOARD repository on GitHub; these links point at the commit this page was built from.

RKS-KEYBOARD: common questions

What microcontroller does the RKS-KEYBOARD use?

The RKS-KEYBOARD is built around the YD-RP2040, from the RP2040/RP2350 family.

How big is the RKS-KEYBOARD PCB?

The RKS-KEYBOARD measures 418.3 × 124.6 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the RKS-KEYBOARD?

419 components, from 15 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the RKS-KEYBOARD design files?

From the rk-kaps/RKS-KEYBOARD repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the RKS-KEYBOARD design in my own project?

The repository has no license, so all rights stay with rk-kaps. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the RKS-KEYBOARD without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug RP2040/RP2350 firmware against it before you order a PCB.
