About the Meenie PCB

Meenie is an open source Nordic nRF PCB design by RobbyV2, published on GitHub. It is a 8-layer board measuring 13.6 × 9.4 mm, with 32 components from 24 distinct parts.

Its main chip is the NRF52840-QIAA-R, from the Nordic nRF family. By type, the board carries 18 capacitors, 4 diodes, 4 resistors, 2 inductors, 1 IC and 1 crystal.

It belongs with the iot & wireless designs in this gallery.

From the project

Tiny microcontroller!

Meenie is a USB-C controller board. The board has a Nordic nRF52840 microcontroller. The board has Bluetooth Low Energy, USB 2.0 data, and 15 GPIO breakout holes. The board has one red status LED and one reset switch. The board has three service lands for SWDIO, SWCLK, and +3V3.

Read docs/design.md for the full stack table and the via inventory.

The short axis of the board is 9.435 mm. NextPCB, for example, has a minimum board size is 10 x 10 mm.

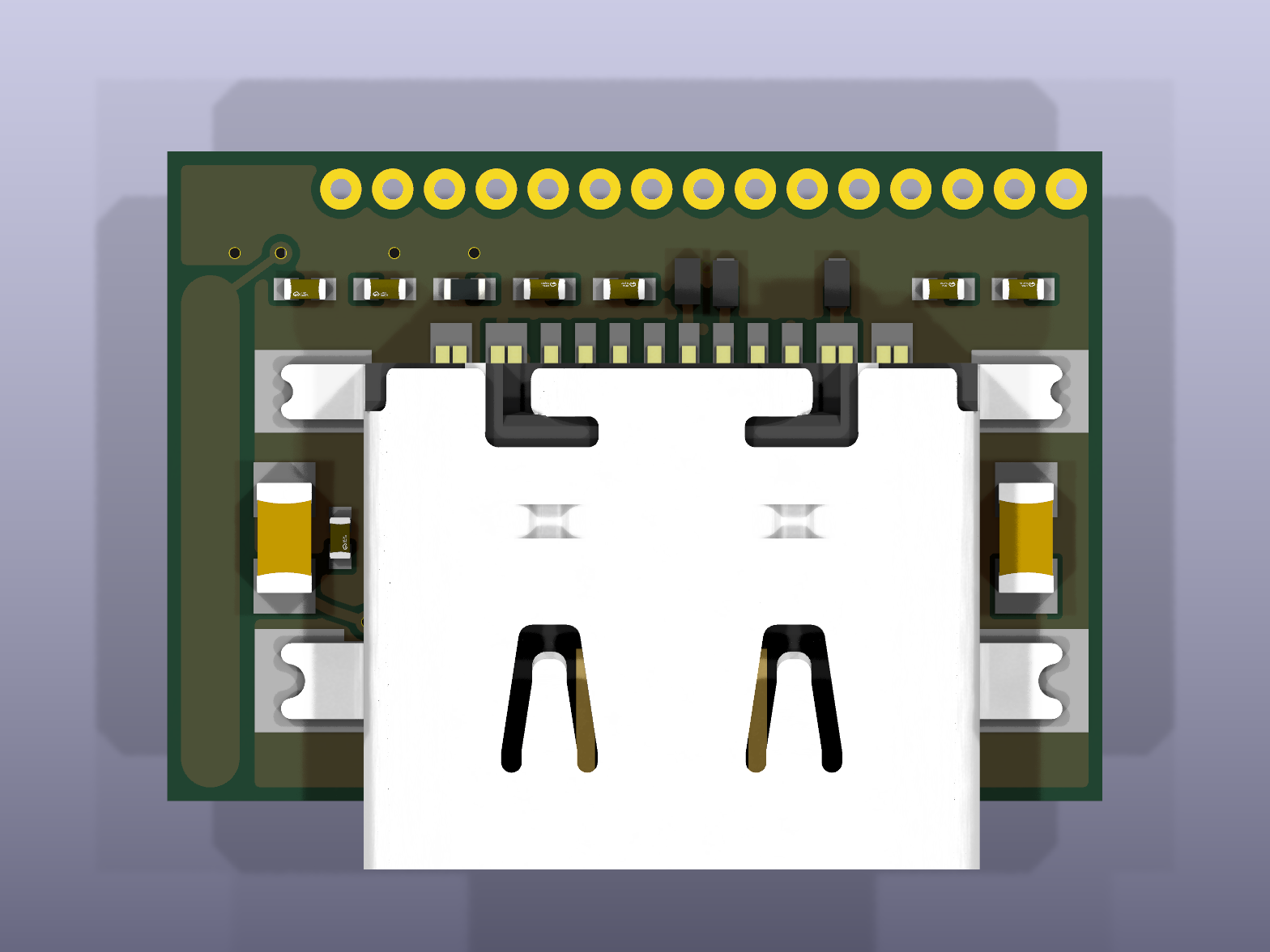

Meenie, from the project README
From the project README

Main components on the Meenie

NRF52840-QIAA-R

Meenie bill of materials (BOM)

32 components, 24 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
NRF52840-QIAA-R
nRF52840-QIAA-R
Nordic Semiconductor
U1
1
X1E0002510059
FA-118T 32MHz CL 8pF
Seiko Epson
Y1
1
TYPE-C 16P QTWT
USB-C 16P sink
SHOU HAN
J1
1
GSNANOT000102
C&K/Littelfuse
SW1
1
TPD1E01B04DPLR
Texas Instruments
D1
1
ESD441DPLR
Texas Instruments
D2
1
LTST-C281KRKT
red
Lite-On
D3
1
ESD5311Z-2/TR
Will Semiconductor
D4
2
LQP03HQ4N7H02D
4.7nH
Murata Electronics
L1, L2
2
GRM0335C1H120GA01D
12pF C0G 2%
Murata
C1, C2
3
GRM033C71C104KE14D
100nF
Murata Electronics
C3, C12, C18
1
GRM033C71C104KE14D
100nF
Murata Electronics
C4
1
CC0201JRNPO9BN101
100pF
Yageo
C5
3
GRM188R61E475KE11D
4.7uF
Murata Electronics
C6, C9, C11
1
CL05A105KA5NQNC
1.0uF
Samsung Electro-Mechanics
C7
1
CL05B104KO5NNNC
100nF
Samsung Electro-Mechanics
C8
2
GJM0335C1ER80WB01D
0.8pF
Murata Electronics
C14, C16
1
GJM0335C1HR50WB01D
0.5pF
Murata Electronics
C15
1
DNP
C17
1
CL05A475MO5NUNC
4.7uF
Samsung Electro-Mechanics
C19
Show 4 more
QtyPartRefs
1
GRM0335C1E821JA01D
820pF C0G 5%
Murata Electronics
C21
1
RC0402FR-072R2L
2R2
Yageo
R1
2
RC0201FR-075K1L
5.1k
Yageo
R2, R3
1
0201WMF1001TEE
1k
Uniroyal Electronics
R4

Meenie design files

The KiCad project lives in the RobbyV2/meenie_controller repository on GitHub; these links point at the commit this page was built from.

Meenie: common questions

What microcontroller does the Meenie use?

The Meenie is built around the NRF52840-QIAA-R, from the Nordic nRF family.

How big is the Meenie PCB?

The Meenie measures 13.6 × 9.4 mm, has 8 copper layers and is 0.991 mm thick.

How many components are on the Meenie?

32 components, from 24 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Meenie design files?

From the RobbyV2/meenie_controller repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Meenie design in my own project?

The repository has no license, so all rights stay with RobbyV2. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the Meenie without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug Nordic nRF firmware against it before you order a PCB.
