About the PlantWateringDevice PCB

PlantWateringDevice is an open source PIC PCB design by RobertGawron, published on GitHub under the MIT license. It is a 4-layer board measuring 48 × 45 mm, with 44 components from 25 distinct parts.

Its main chip is the PIC10F202-IOT, from the PIC family. Other key parts include the LM2903 and SC39-11EWA. By type, the board carries 18 resistors, 10 capacitors, 6 ICs, 3 connectors, 3 switches and 1 module.

It belongs with the displays & leds and sensors designs in this gallery.

From the project

A home plant watering device based on a simple 6-pin PIC microcontroller and 74HC chips.

This section describes the electronic circuit of this device.

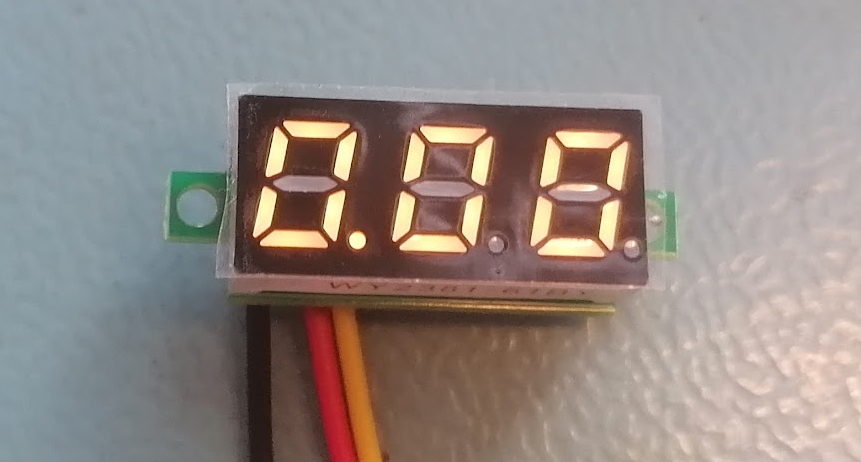

These cheap modules were used in this device; they or their clones are available on AliExpress or similar sites: 0.28 Inch LED Digital Display DC Voltmeter 0-100V 2.5-30V JSB1523006 (probably JSB1523008 can be also used): datasheet DC 5V 6V 030 Mini Vacuum Pump Air Pump Oxygen Pump Diaphragm Pump Current 80mA 60KPa 0.6L/min Capacitive Soil Moisture Sensor Module Corrosion Resistant Wide Voltage Wire Analog Capacitive Soil Moisture Sensor V1.2 Potentiometer: datasheet 4x M2 screw 4x M2 nut 4x M3 screw 4x M3 nut

PlantWateringDevice, from the project README
From the project README

Main components on the PlantWateringDevice

LM2903PIC10F202-IOTSC39-11EWA

PlantWateringDevice bill of materials (BOM)

44 components, 25 distinct parts.

QtyPartRefs
1
LM2903
U2
2
~
U3, U5
1
PIC10F202-IOT
U4
1
~
U6
1
SC39-11EWA
U7
1
Motor_DC
M1
1
AO3404A
Q1
1
USB_B_Micro
J1
1
Conn_PIC_ICSP_ICD
J3
1
Conn_01x03_Socket
J4
1
R_Potentiometer
RV2
2
SW_Push
SW1, SW3
1
SW_DIP_x02
SW5
1
LED
D1
7
100n
C1, C4, C13, C14, C15, C16, C18
2
100u/10v
C5, C9
1
330n
C6
2
0R
R1, R2
1
510R
R3
1
1k
R4
Show 5 more
QtyPartRefs
4
10k
R6, R8, R9, R14
1
47R
R7
1
TBD
R10
1
4R7
R12
7
120R
R13, R20, R21, R22, R23, R25, R27

PlantWateringDevice design files

The KiCad project lives in the RobertGawron/PlantWateringDevice repository on GitHub; these links point at the commit this page was built from.

PlantWateringDevice: common questions

What microcontroller does the PlantWateringDevice use?

The PlantWateringDevice is built around the PIC10F202-IOT, from the PIC family.

How big is the PlantWateringDevice PCB?

The PlantWateringDevice measures 48 × 45 mm, has 4 copper layers and is 1.6 mm thick.

How many components are on the PlantWateringDevice?

44 components, from 25 distinct parts. The full bill of materials is listed on this page.

Where can I download the PlantWateringDevice design files?

From the RobertGawron/PlantWateringDevice repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the PlantWateringDevice design in my own project?

Yes, under the terms of its MIT license, which RobertGawron chose for the repository.

Can I test firmware for the PlantWateringDevice without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug PIC firmware against it before you order a PCB.
