PlacaAlimentacion PCB layout, top view — open source board by Robot-Sumo

About the PlacaAlimentacion PCB

PlacaAlimentacion is an open source PCB design by Robot-Sumo, published on GitHub. It is a 2-layer board measuring 101.5 × 80.3 mm, with 43 components from 16 distinct parts.

Other key parts include the LM741, LM1084-ADJ and LM7805_TO220. By type, the board carries 16 resistors, 8 connectors, 6 diodes, 5 ICs, 5 capacitors and 2 fuses.

It belongs with the robotics & motion designs in this gallery.

From the project

Diseño en Kicad de los circuitos impresos (PCB's) utilizadas para la elaboración del Robot-Sumo.

Diseño en Kicad de los circuitos impresos (PCB's) utilizadas para la elaboración del Robot-Sumo.

Kicad es una herramienta de software libre que permite el diseño de circuitos impresos con una rápida curva de aprendizaje. Este software se encuentra disponible para Linux, Windows y MacOS y puede ser instalado siguiendo las instrucciones de su página de descarga.

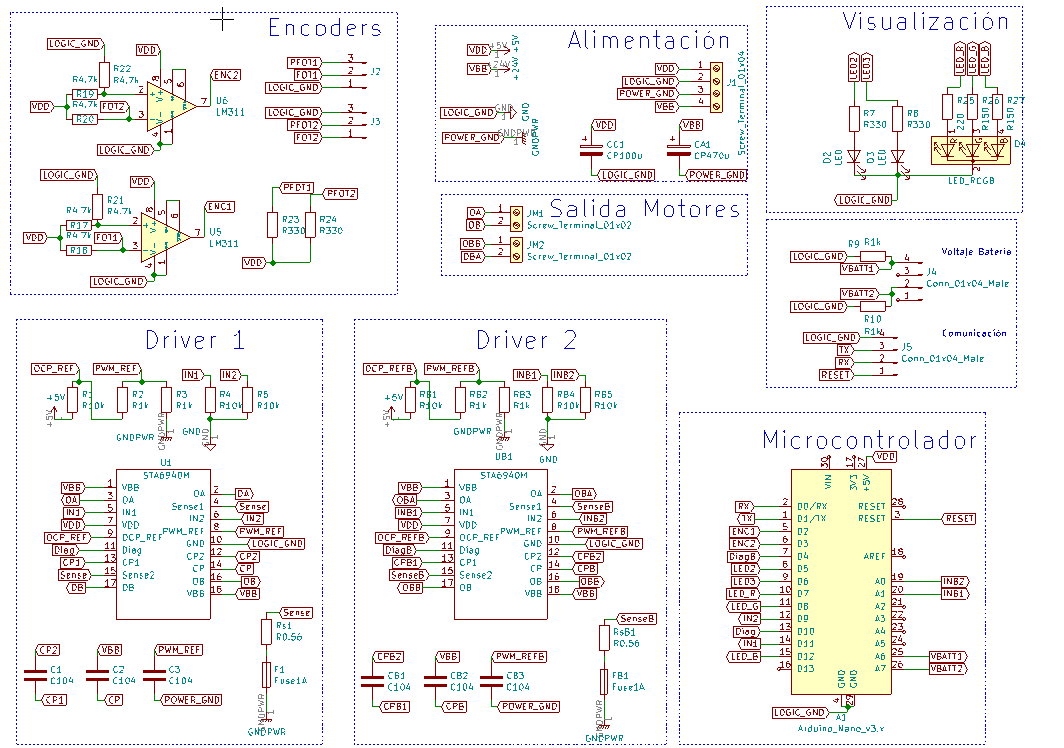

PlacaAlimentacion, from the project README
From the project README

Main components on the PlacaAlimentacion

LM741LM1084-ADJLM7805_TO220

PlacaAlimentacion bill of materials (BOM)

43 components, 16 distinct parts.

QtyPartRefs
3
LM741
U1, U2, U3
1
LM1084-ADJ
U4
1
LM7805_TO220
U5
2
Conn_01x04_Male
J1, J5
4
Screw_Terminal_01x04
J2, J6, J7, J8
2
USB_A
J3, J4
2
Fuse
F1, F2
1
SW_DPST
SW1
4
LED
D1, D2, D3, D4
2
D_Zener
D5, D5231
1
CAP104
C1
2
CP47u
C2, C5
2
CP10u
C3, C4
5
R10k
R1, R2, R6, R7, R8
9
R
R1k1, R1k2, R5, R9, R10, R11, R12, R120 +1
2
R5k
R3, R4

PlacaAlimentacion design files

The KiCad project lives in the Robot-Sumo/SumoPontifice-Hardware repository on GitHub; these links point at the commit this page was built from.

PlacaAlimentacion: common questions

How big is the PlacaAlimentacion PCB?

The PlacaAlimentacion measures 101.5 × 80.3 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the PlacaAlimentacion?

43 components, from 16 distinct parts. The full bill of materials is listed on this page.

Where can I download the PlacaAlimentacion design files?

From the Robot-Sumo/SumoPontifice-Hardware repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the PlacaAlimentacion design in my own project?

The repository has no license, so all rights stay with Robot-Sumo. Use it as a reference, and ask the author before reusing the design.
