Shield-B

rsedak·Shield-B·design_files/shield_b.kicad_pcb

Shield-B layout, top view — open source AVR/Arduino board by rsedak

About the Shield-B

Shield-B is an open source AVR/Arduino PCB design by rsedak, published on GitHub under the Custom license license. It is a 2-layer board measuring 69.1 × 53.9 mm, with 44 components from 20 distinct parts.

Its main chip is the Arduino_UNO_R3, from the AVR/Arduino family. Other key parts include the L272M and ULN2003. By type, the board carries 14 resistors, 10 diodes, 8 connectors, 3 switches, 3 capacitors and 2 ICs.

It belongs with the dev boards & breakouts designs in this gallery.

From the project

Shield-B is Arduino Uno based shield for student education compatible with BASCOM-AVR(C) and Arduino IDE.

Contributors ------------ - Robert Sedak — features, Arduino expertise, schematic design, CAD design. - Vladimir Mitrović — features, BASCOM-AVR expertise

Application ----------- Robert Sedak made a video with examples programmed in Arduino IDE:

You can download examples for Arduino IDE from here.

Bill Of Materials ----------------- - 1 ea., PCB - 1 ea., 680R ohm 1/4W 1% Resistor (R1) - 8 ea., 1K ohm 1/4W 1% Resistor (R2-R8, R14) - 2 ea., 10K ohm 1/4W 1% Resistor (R9, R10) - 2 ea., 100R ohm 1/4W 1% Resistor (R11, R12) - 1 ea., 1.5K ohm 1/4W 1% Resistor (R13) - 1 ea., LED 5mm DUAL AKA (D1)…

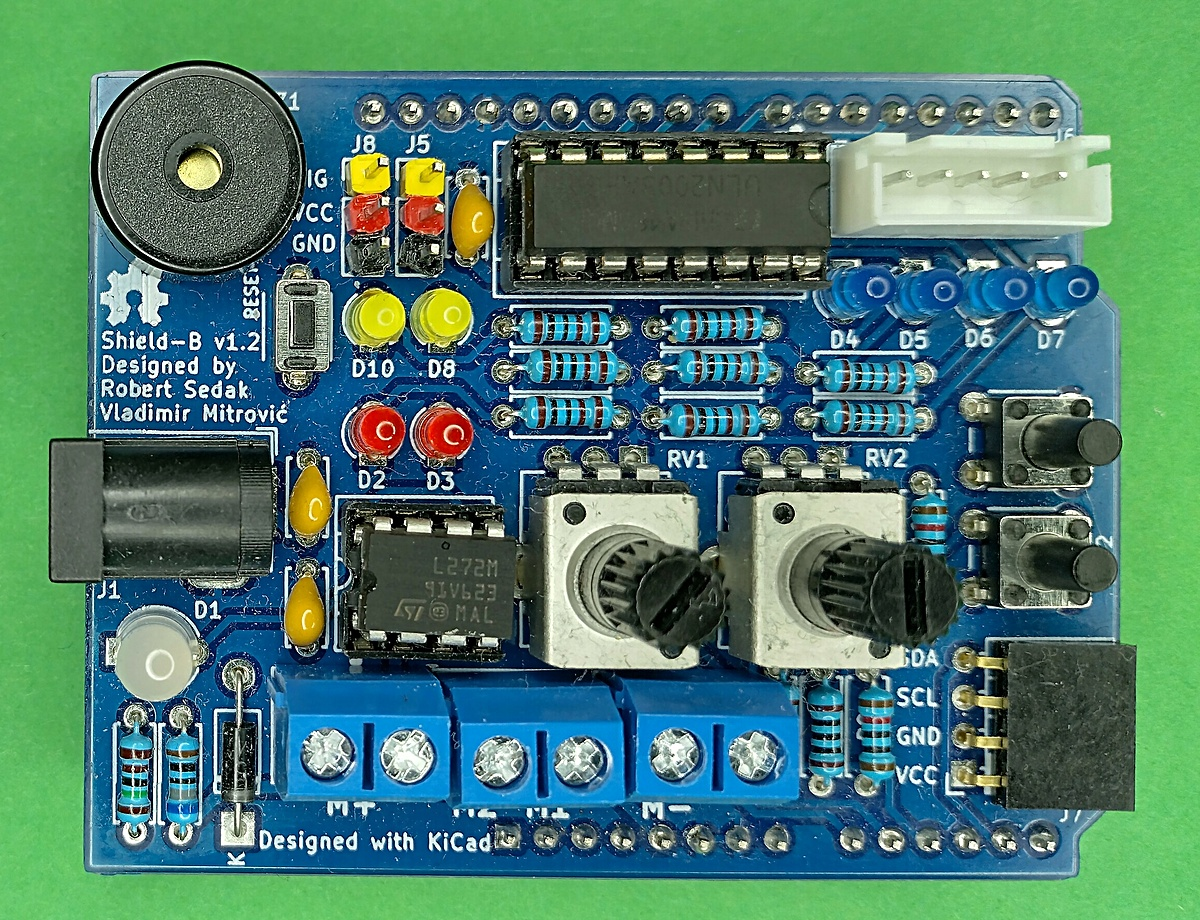

Shield-B, from the project README
From the project README

Main components on the Shield-B

L272MULN2003Arduino_UNO_R3

Shield-B bill of materials (BOM)

44 components, 20 distinct parts.

QtyPartRefs
1
L272M
U1
1
ULN2003
U2
1
Arduino_UNO_R3
A1
1
Barrel_Jack_Switch
J1
3
Screw_Terminal_01x02
J2, J3, J4
2
Conn_01x03_Male
J5, J8
1
Conn_01x05_Male
J6
1
Conn_01x04_Female
J7
1
Buzzer
BZ1
2
10K
RV1, RV2
1
SW_Push
SW1
2
SW_Push
SW2, SW3
1
LED_Dual_AKA
D1
8
LED
D2, D3, D4, D5, D6, D7, D8, D10
1
1N5817
D9
3
100nF
C1, C2, C3
2
1,5K
R1, R13
8
1K
R2, R3, R4, R5, R6, R7, R8, R14
2
10K
R9, R10
2
100R
R11, R12

Shield-B design files

The KiCad project lives in the rsedak/Shield-B repository on GitHub; these links point at the commit this page was built from.

Shield-B: common questions

What microcontroller does the Shield-B use?

The Shield-B is built around the Arduino_UNO_R3, from the AVR/Arduino family.

How big is the Shield-B?

The Shield-B measures 69.1 × 53.9 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Shield-B?

44 components, from 20 distinct parts. The full bill of materials is listed on this page.

Where can I download the Shield-B design files?

From the rsedak/Shield-B repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the Shield-B design in my own project?

It is published under Custom license, which limits how it may be reused; read the license before building on it.

Can I test firmware for the Shield-B without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug AVR/Arduino firmware against it before you order a PCB.
