About the Rp2040-business card PCB

Rp2040-business card is an open source RP2040/RP2350 PCB design by rsheldiii, published on GitHub under the CC-BY-SA-4.0 license. It is a 2-layer board measuring 37.8 × 32.5 mm, with 47 components from 24 distinct parts.

Its main chip is the RP2040, from the RP2040/RP2350 family. Other key parts include the NCP1117-3.3_SOT223, W25Q128JVS, ST7735s_8 and MAX98357AETE+T. By type, the board carries 21 capacitors, 13 resistors, 5 ICs, 3 diodes, 2 connectors and 1 crystal.

It belongs with the audio designs in this gallery.

From the project

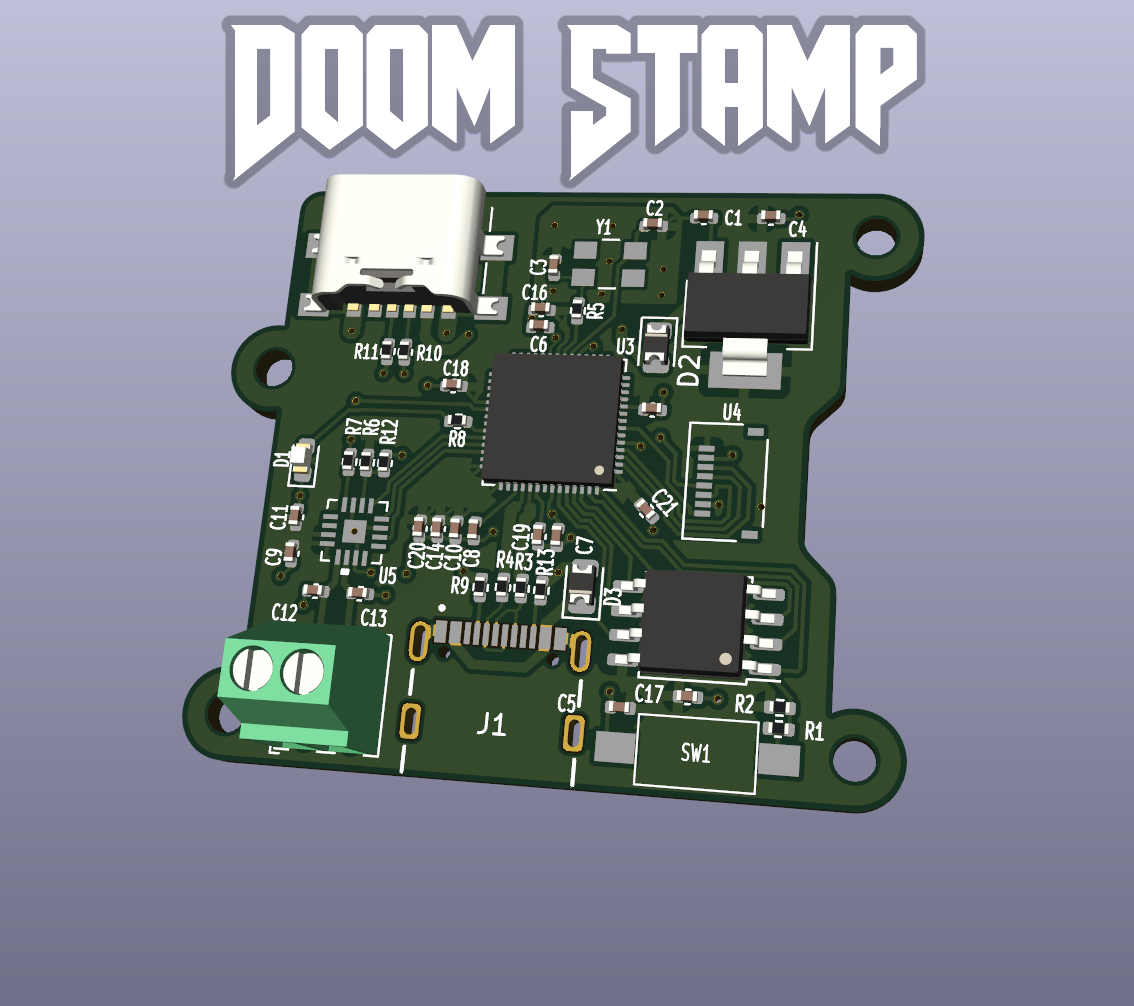

The Doom Stamp was based off the RP2040 Minimal Design Example, and is designed as a platform to make embedded devices that run Doom (or indeed, embedded devices with i2s audio and SPI displays).

Main components on the Rp2040-business card

NCP1117-3.3_SOT223 W25Q128JVS RP2040 ST7735s_8 MAX98357AETE+T

Rp2040-business card bill of materials (BOM)

47 components, 24 distinct parts.

Qty	Part	Footprint	Refs
1	NCP1117-3.3_SOT223	SOT-223-3_TabPin2	U1
1	W25Q128JVS	SOIC-8_5.23x5.23mm_P1.27mm	U2
1	RP2040	RP2040-QFN-56	U3
1	ST7735s_8	2328702-8 IPS screen FPC	U4
1	MAX98357AETE+T	MAX98357AETE-T	U5
1	ABLS-12.000MHZ-B4-T	403C35D12M00000	Y1
1	USB_C_Receptacle_USB2.0	GCT_USB4105-GF-A	J1
1	USB_C_Receptacle_PowerOnly_6P	USB_C_Receptacle_GCT_USB4135-GF-A_6P_TopMnt_Horizontal	J6
1	Speaker	TerminalBlock_Phoenix_MPT-0,5-2-2.54_1x02_P2.54mm_Horizontal	LS1
1	Conn_01x02	PTS636_SL50_SMTR_LFS Tactile Switch	SW1
1	LED	LED_0603_1608Metric	D1
2	D_Schottky	D_0805_2012Metric	D2, D3
4	10u	C_0402_1005Metric	C1, C4, C9, C17
2	27p	C_0402_1005Metric	C2, C3
11	100n	C_0402_1005Metric	C5, C6, C7, C11, C14, C15, C16, C18 +3
2	1u	C_0402_1005Metric	C8, C10
2	220p	C_0402_1005Metric	C12, C13
3	1k	R_0402_1005Metric	R1, R5, R8
2	DNF	R_0402_1005Metric	R2, R12
2	27	R_0402_1005Metric	R3, R4

Show 4 more

Qty	Part	Footprint	Refs
1	100k	R_0402_1005Metric	R6
1	680k	R_0402_1005Metric	R7
2	56k	R_0402_1005Metric	R9, R13
2	5.1k	R_0402_1005Metric	R10, R11

Rp2040-business card design files

The KiCad project lives in the rsheldiii/rp2040-business-card repository on GitHub; these links point at the commit this page was built from.

LayoutDoomStamp/DoomStamp.kicad_pcb
SchematicDoomStamp/DoomStamp.kicad_sch

Rp2040-business card: common questions

What microcontroller does the Rp2040-business card use?

The Rp2040-business card is built around the RP2040, from the RP2040/RP2350 family.

How big is the Rp2040-business card PCB?

The Rp2040-business card measures 37.8 × 32.5 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Rp2040-business card?

47 components, from 24 distinct parts. The full bill of materials is listed on this page.

Where can I download the Rp2040-business card design files?

From the rsheldiii/rp2040-business-card repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the Rp2040-business card design in my own project?

Yes, under the terms of its CC-BY-SA-4.0 license, which rsheldiii chose for the repository.

Can I test firmware for the Rp2040-business card without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug RP2040/RP2350 firmware against it before you order a PCB.
