About the The Hackpad PCB
The Hackpad is an open source RP2040/RP2350 PCB design by rubaiyat666, published on GitHub. It is a 2-layer board measuring 89.7 × 93.1 mm, with 33 components from 7 distinct parts.
Its main chip is the XIAO-RP2040-DIP, from the RP2040/RP2350 family. By type, the board carries 18 diodes, 13 switches, 1 IC and 1 connector.
It belongs with the keyboards and displays & leds designs in this gallery.
From the project

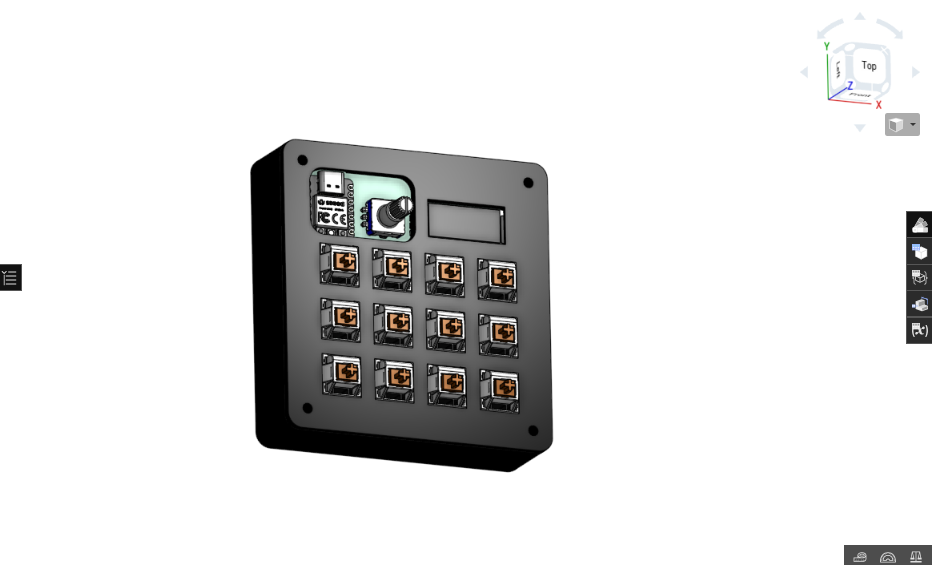

A compact, programmable macropad built for custom key mappings, macros, and shortcuts. Designed for productivity, gaming, or media control with SEEDSTUDIO XIAO-RP2040-DP.
A compact, programmable macropad built for custom key mappings, macros, and shortcuts. Designed for productivity, gaming, or media control with SEEDSTUDIO XIAO-RP2040-DP.
-KMK compatible (or your firmware choice)
This is my first time making a full on electronic project. Didn't know a single thing about PCB's,CAD or firmwares. This was pretty fun to make and Thanks to HackClub for this oppourtunity.

Main components on the The Hackpad
The Hackpad bill of materials (BOM)
33 components, 7 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | XIAO-RP2040-DIP | XIAO-RP2040-DIP | U1 |
| 1 | OLED_128X32 OLED_128x32 | OLED_128x32 | J1 |
| 12 | ~ | MX_PCB_1.00u | S3, S4, S5, S6, S7, S8, S9, S10 +4 |
| 1 | RotaryEncoder_Switch | RotaryEncoder_Alps_EC11E-Switch_Vertical_H20mm | SW1 |
| 5 | SK6812MINI-E | MX_SK6812MINI-E_REV | D1, D2, D15, D16, D17 |
| 12 | ~ | Diode_DO-35 | D3, D4, D5, D6, D7, D8, D9, D10 +4 |
| 1 | SK6812MINI SK6812MINI-E | MX_SK6812MINI-E_REV | D18 |
The Hackpad design files
The KiCad project lives in the rubaiyat666/The_Hackpad repository on GitHub; these links point at the commit this page was built from.
The Hackpad: common questions
What microcontroller does the The Hackpad use?
The The Hackpad is built around the XIAO-RP2040-DIP, from the RP2040/RP2350 family.
How big is the The Hackpad PCB?
The The Hackpad measures 89.7 × 93.1 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the The Hackpad?
33 components, from 7 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the The Hackpad design files?
From the rubaiyat666/The_Hackpad repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the The Hackpad design in my own project?
The repository has no license, so all rights stay with rubaiyat666. Use it as a reference, and ask the author before reusing the design.
Can I test firmware for the The Hackpad without the hardware?
Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug RP2040/RP2350 firmware against it before you order a PCB.
