Macropad PCB layout, top view — open source ESP32 board by rudranshgoel1

About the Macropad PCB

Macropad is an open source ESP32 PCB design by rudranshgoel1, published on GitHub. It is a 2-layer board measuring 80.2 × 62.2 mm, with 18 components from 4 distinct parts.

Its main chip is the microcontroller, from the ESP32 family. Other key parts include the ER_OLEDM0.91_1x-I2C. By type, the board carries 8 switches, 8 diodes and 2 ICs.

It belongs with the keyboards and displays & leds designs in this gallery.

From the project

- 8 Remappable Key Matrix for anything! - ESP32C3 SuperMini as the main brain - Custom PCB Art (really cool) - Custom case

- 8 Remappable Key Matrix for anything! - ESP32C3 SuperMini as the main brain - Custom PCB Art (really cool) - Custom case

link to full 3d thing- https://cad.onshape.com/documents/f3f4d199ef23d310b3ca664c/w/34908b541132c21f4c70cc87/e/ea0e0a44c36532055dd3e013?renderMode=0&uiState=6ac56a265213d46a6705e1a3

BOM |Name |Purpose |Quantity|Total Cost (USD)|Link |Distributor | |-------------------------------|--------------------------------|--------|----------------|-------------------------------------------------------------------------------------|---------------| |ESP32-S3 SuperMini |Main MCU…

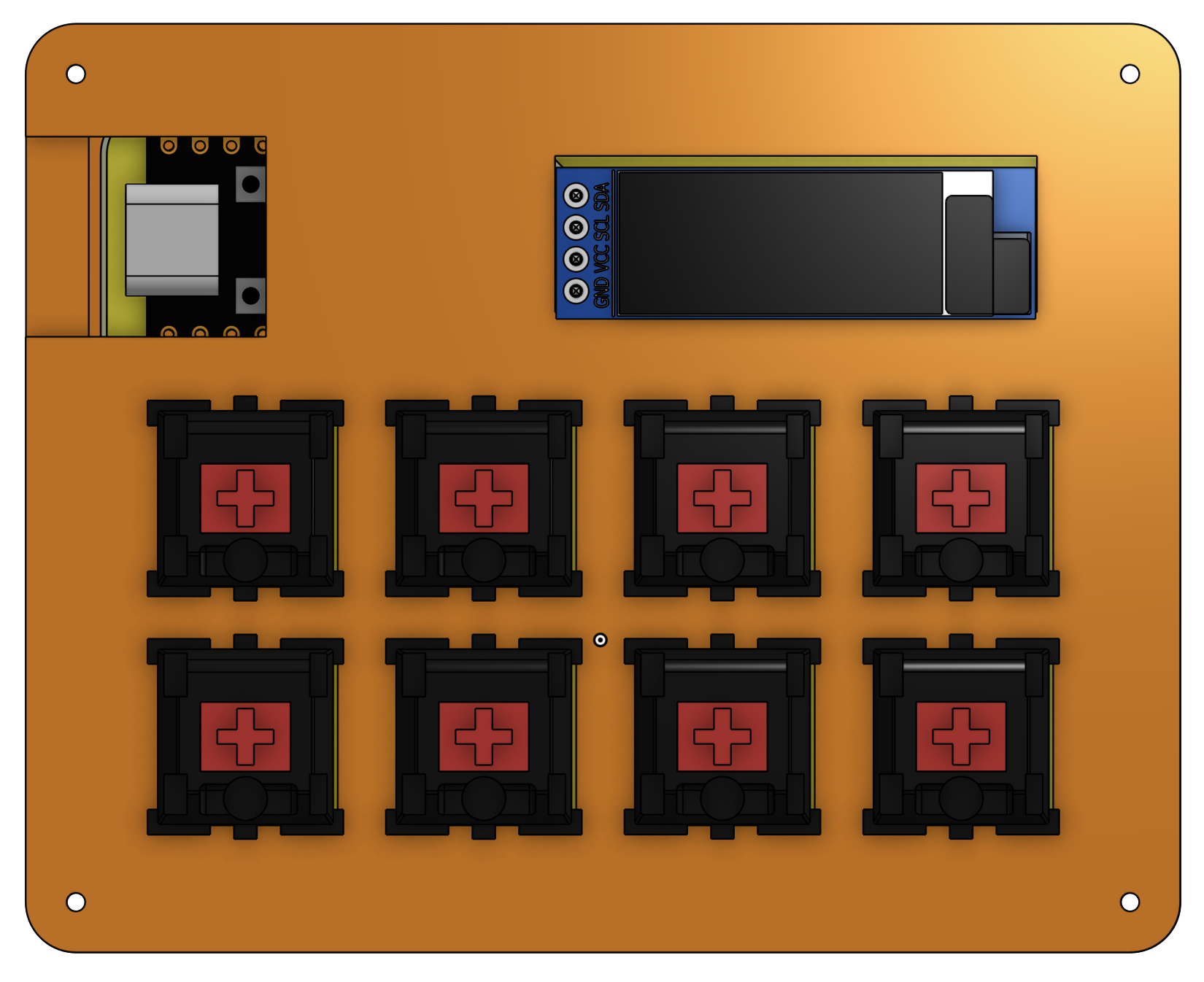

Macropad, from the project README
From the project README

Main components on the Macropad

microcontrollerER_OLEDM0.91_1x-I2C

Macropad bill of materials (BOM)

18 components, 4 distinct parts.

QtyPartRefs
1
microcontroller
U1
1
ER_OLEDM0.91_1x-I2C
U2
8
SW_Push
SW1, SW2, SW3, SW4, SW5, SW6, SW7, SW8
8
1N4148
D1, D2, D3, D4, D5, D6, D7, D8

Macropad design files

The KiCad project lives in the rudranshgoel1/macropad repository on GitHub; these links point at the commit this page was built from.

Macropad: common questions

What microcontroller does the Macropad use?

The Macropad is built around the microcontroller, from the ESP32 family.

How big is the Macropad PCB?

The Macropad measures 80.2 × 62.2 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Macropad?

18 components, from 4 distinct parts. The full bill of materials is listed on this page.

Where can I download the Macropad design files?

From the rudranshgoel1/macropad repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the Macropad design in my own project?

The repository has no license, so all rights stay with rudranshgoel1. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the Macropad without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug ESP32 firmware against it before you order a PCB.
