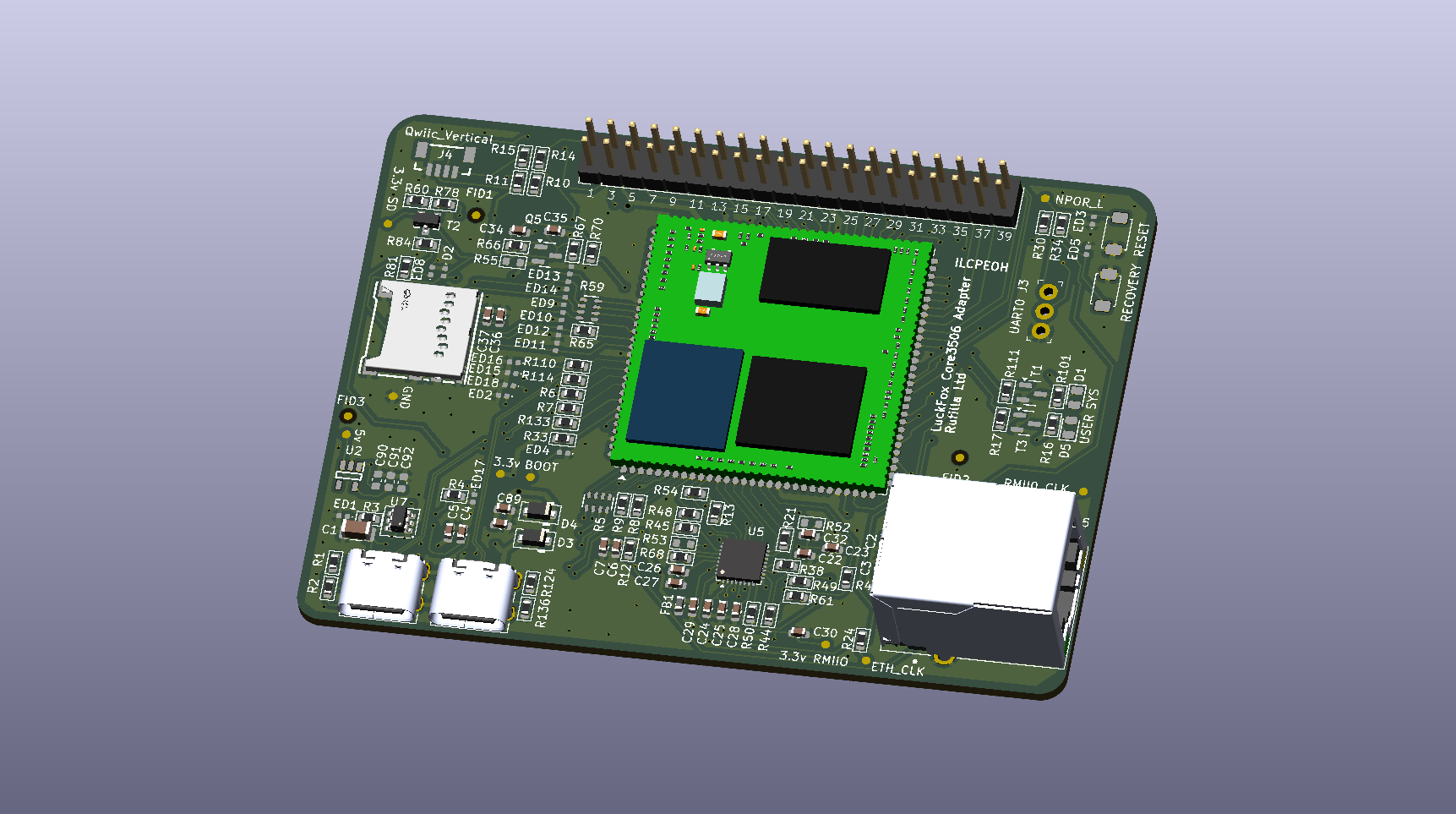

LuckFox-Core3506-Carrier
About the LuckFox-Core3506-Carrier PCB
LuckFox-Core3506-Carrier is an open source PCB design by Rufilla, published on GitHub under the Apache-2.0 license. It is a 4-layer board measuring 89.7 × 66 mm, with 117 components from 47 distinct parts.
Other key parts include the ME6217C33M5G, CH182H2 and TPS2553DBVR. By type, the board carries 53 resistors, 26 capacitors, 5 diodes, 4 connectors, 3 ICs and 3 transformers.
It belongs with the dev boards & breakouts and iot & wireless designs in this gallery.
From the project
A carrier board for the LuckFox 3506 designed in KiCAD 10
A carrier board for the Luckfox Core3506 system-on-module (SoM), for anyone who wants the RK3506 on a Raspberry Pi Model B-sized board (85 × 56 mm) with Ethernet, USB-C, a DSI display & a 40-pin header. Designed in KiCad 10 by Rufilla Ltd., from the Luckfox Lyra Pi reference design. Revision A is a prototype: it has been built & brought up, with three hardware faults.
Main components on the LuckFox-Core3506-Carrier
LuckFox-Core3506-Carrier bill of materials (BOM)
117 components, 47 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | ME6217C33M5G | SOT23-5 | U2 |
| 1 | CH182H2 | QFN-32-1EP_5x5mm_P0.5mm_EP3.45x3.45mm | U5 |
| 1 | TPS2553DBVR | SOT-23-6 | U7 |
| 1 | SI2301CDS-T1-GE3 Vishay Intertech | Q_SOT-23 | Q5 |
| 1 | HR911105A | HANRUN_HR911105A | J1 |
| 1 | TF-110 | TF-SMD_TF-110 | J2 |
| 1 | 640456-3 UART0 TE Connectivity AMP Connectors | PinHeader_1x3_P2.54_Drill1.1mm | J3 |
| 1 | Qwiic_Vertical | JST_1x04_P1.0mm_Vertical_SMD | J4 |
| 2 | ESD5451N | D_0402_1005Metric | ED1, ED17 |
| 14 | ESD5341N | D_0402_1005Metric | ED2, ED3, ED4, ED5, ED8, ED9, ED10, ED11 +6 |
| 1 | CONN_01X22_FPC_0.5MM Conn_01x22_FPC_0.5mm | FPC_1x22_P0.5mm_Horizontal_BottomContact | H4 |
| 2 | TYPE-C_16PIN_2MD__073_ | TYPE-C_16PIN_2MD_073 | H5, H6 |
| 1 | RESET XUNPU | SW_TS-1088-AR02016 | Key1 |
| 1 | RECOVERY XUNPU | SW_TS-1088-AR02016 | Key2 |
| 2 | C2150 SS8050 200-350 Changjiang Electronics Tech (CJ) | Q_SOT-23 | T1, T3 |
| 1 | MMBT3906 | SOT23-3 | T2 |
| 1 | C2297 SYS Hubei KENTO Elec | D_0805 | D1 |
| 1 | ESD5341N | D_0402_1005Metric | D2 |
| 1 | MBR230SFT | D_SOD-123F | D3 |
| 1 | SMF5.0A | D_SOD-123F | D4 |
Show 27 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | C2297 USER Hubei KENTO Elec | D_0805 | D5 |
| 1 | C88989 330Ω@100MHz | L_0603_1608Metric | FB1 |
| 1 | 100UF 100uF | C_1206_3216Metric | C1 |
| 15 | 100NF 100nF | C_0603_1608Metric | C2, C3, C4, C5, C6, C23, C24, C26 +7 |
| 2 | 10UF 10uF | C_0603_1608Metric | C7, C89 |
| 3 | 4.7UF 4.7uF | C_0603_1608Metric | C22, C30, C36 |
| 2 | 1UF 1uF | C_0603_1608Metric | C25, C27 |
| 2 | 10uF | C_0603_1608Metric | C90, C91 |
| 1 | 2.2uF | C_0603_1608Metric | C92 |
| 3 | 56K 56k | R_0603_1608Metric | R1, R2, R4 |
| 2 | 100K 100k | R_0603_1608Metric | R3, R66 |
| 1 | 2.2Ω UNI-ROYAL(Uniroyal Elec) | R_0603x4 | R5 |
| 10 | 22R | R_0603_1608Metric | R6, R7, R14, R15, R42, R44, R48, R65 +2 |
| 2 | 2.2Ω | R_0603_1608Metric | R8, R9 |
| 2 | 3.3K 3.3k | R_0603_1608Metric | R10, R11 |
| 6 | 10K 10k | R_0603_1608Metric | R12, R60, R67, R70, R84, R133 |
| 3 | C21189 0R | R_0603_1608Metric | R13, R21, R24 |
| 2 | 470R | R_0603_1608Metric | R16, R101 |
| 4 | 1k | R_0603_1608Metric | R17, R78, R81, R111 |
| 2 | 510R | R_0603_1608Metric | R25, R26 |
| 3 | 100R | R_0603_1608Metric | R30, R33, R34 |
| 6 | 4.7K 4.7k | R_0603_1608Metric | R38, R45, R49, R50, R61, R68 |
| 2 | 4.7k | R_0603_1608Metric | R52, R53 |
| 1 | 1.8K 1.8k | R_0603_1608Metric | R54 |
| 1 | 0R | R_0603_1608Metric | R55 |
| 1 | 22R UNI-ROYAL(Uniroyal Elec) | R_0603x4 | R59 |
| 2 | 5.1K | R_0603_1608Metric | R124, R136 |
LuckFox-Core3506-Carrier design files
The KiCad project lives in the Rufilla/LuckFox-Core3506-Carrier repository on GitHub; these links point at the commit this page was built from.
LuckFox-Core3506-Carrier: common questions
How big is the LuckFox-Core3506-Carrier PCB?
The LuckFox-Core3506-Carrier measures 89.7 × 66 mm, has 4 copper layers and is 1.59 mm thick.
How many components are on the LuckFox-Core3506-Carrier?
117 components, from 47 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the LuckFox-Core3506-Carrier design files?
From the Rufilla/LuckFox-Core3506-Carrier repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the LuckFox-Core3506-Carrier design in my own project?
Yes, under the terms of its Apache-2.0 license, which Rufilla chose for the repository.
