Guitarpedal
About the Guitarpedal PCB
Guitarpedal is an open source PCB design by rumlenordstroem, published on GitHub. It is a 4-layer board measuring 60 × 90 mm, with 64 components from 38 distinct parts.
Other key parts include the TL072 and 3PDT_footswitch. By type, the board carries 25 resistors, 14 capacitors, 13 diodes, 4 ICs, 2 connectors and 2 switches.
It belongs with the audio designs in this gallery.
From the project
A distortion effect pedal I designed.

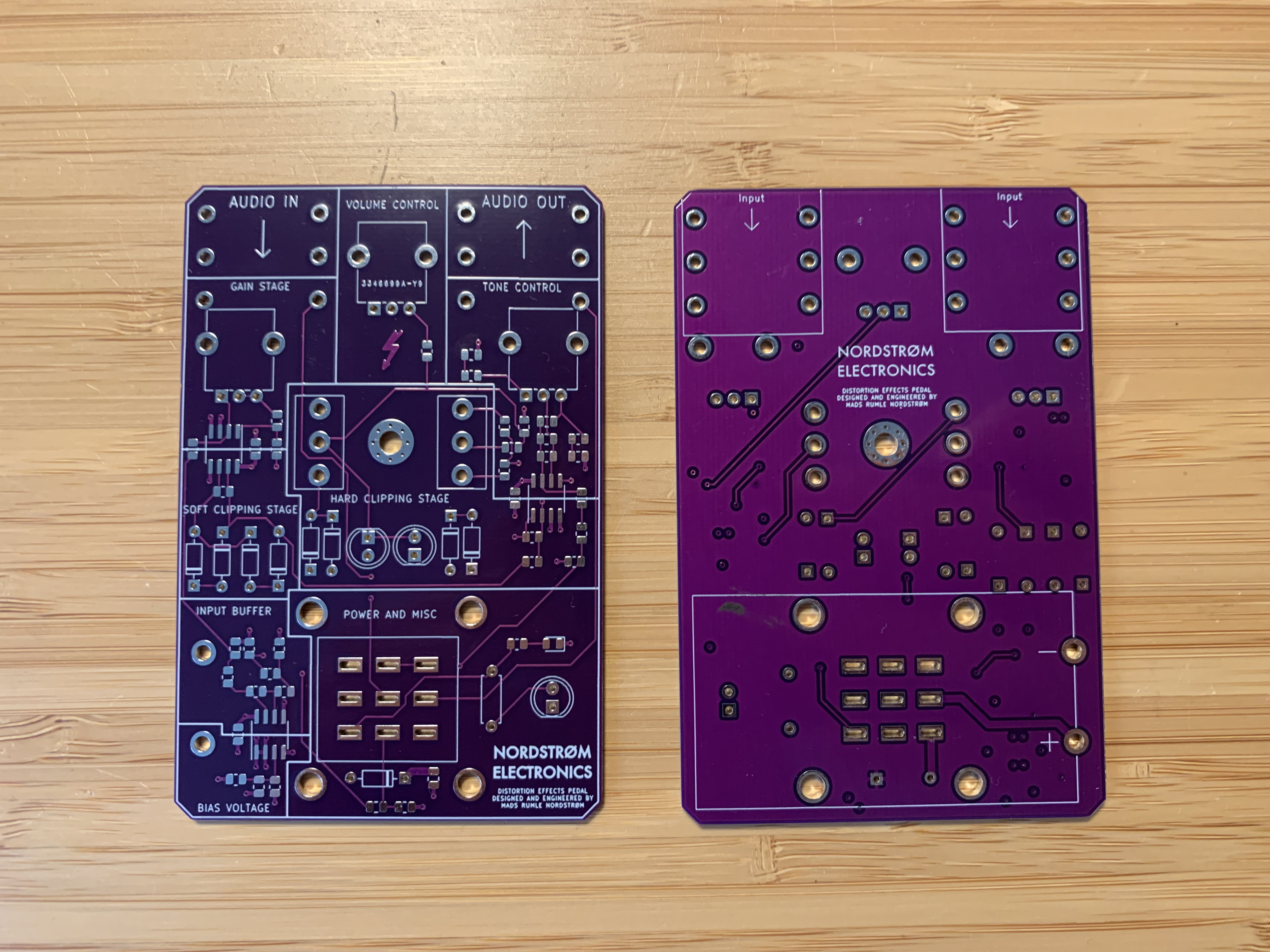

The PCB is four layers since it so mouch nicer to work with and has become so cheap that two layer PCB are more or less obsolete. I wanted every component to be on the PCB and not having to deal with soldering extra wires to connectors and pots. So when every component is soldered to the PCB, the pedal is essentially done, and just needs to be put into an enclosure. Instead of having a enclosure with art on I designed the PCB to be aesthetically pleasing.
Main components on the Guitarpedal
Guitarpedal bill of materials (BOM)
64 components, 38 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 3 | TL072 | SOIC-8_3.9x4.9mm_P1.27mm | U1, U2, U3 |
| 1 | 3PDT_footswitch | 3PDT | U4 |
| 2 | AudioJack2 | ACJM-IH | J1, J2 |
| 1 | Battery_Cell | 9V_Battery_Holder_1294 | BT1 |
| 1 | 1M | Potentiometer_Alpha_RD901F-40-00D_Single_Vertical_CircularHoles | RV1 |
| 1 | 100k | Potentiometer_Alpha_RD901F-40-00D_Single_Vertical_CircularHoles | RV2 |
| 1 | 50k | Potentiometer_Alpha_RD901F-40-00D_Single_Vertical_CircularHoles | RV3 |
| 2 | SW_SPDT | 100SP1T1B4M2QE | SW1, SW2 |
| 3 | D_Schottky | D_DO-35_SOD27_P7.62mm_Horizontal | D1, D3, D4 |
| 1 | LED | LED_0805_2012Metric | D2 |
| 6 | 1N4148 | D_DO-35_SOD27_P7.62mm_Horizontal | D5, D6, D9, D10, D11, D12 |
| 3 | LED | LED_D5.0mm | D7, D8, D13 |
| 3 | 10u | C_0805_2012Metric | C1, C11, C15 |
| 6 | 100n | C_0805_2012Metric | C2, C3, C4, C6, C13, C14 |
| 1 | 10n | C_0805_2012Metric | C7 |
| 1 | 33n | C_0805_2012Metric | C8 |
| 1 | 47p | C_0805_2012Metric | C9 |
| 1 | 1n | C_0805_2012Metric | C10 |
| 1 | 3.3n | C_0805_2012Metric | C12 |
| 2 | 649 | R_0805_2012Metric | R1, R6 |
Show 18 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 2 | 102k | R_0805_2012Metric | R2, R3 |
| 1 | 26.7k | R_0805_2012Metric | R4 |
| 1 | 16.9k | R_0805_2012Metric | R5 |
| 3 | 10k | R_0805_2012Metric | R7, R8, R9 |
| 2 | 40.2k | R_0805_2012Metric | R10, R16 |
| 2 | 931k | R_0805_2012Metric | R11, R18 |
| 1 | 499k | R_0805_2012Metric | R12 |
| 1 | 80.6k | R_0805_2012Metric | R13 |
| 1 | 24.9k | R_0805_2012Metric | R14 |
| 1 | 4.99k | R_0805_2012Metric | R15 |
| 1 | 1k | R_0805_2012Metric | R17 |
| 1 | 17.4k | R_0805_2012Metric | R19 |
| 1 | 56.2k | R_0805_2012Metric | R20 |
| 1 | 6.81k | R_0805_2012Metric | R21 |
| 1 | 3.24k | R_0805_2012Metric | R22 |
| 1 | 22.1k | R_0805_2012Metric | R23 |
| 1 | 1.2k | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal | R24 |
| 1 | 105k | R_0805_2012Metric | R25 |
Guitarpedal design files
The KiCad project lives in the rumlenordstroem/Guitarpedal repository on GitHub; these links point at the commit this page was built from.
- LayoutGuitarpedal.kicad_pcb
- SchematicGuitarpedal.kicad_sch
Guitarpedal: common questions
How big is the Guitarpedal PCB?
The Guitarpedal measures 60 × 90 mm, has 4 copper layers and is 1.6 mm thick.
How many components are on the Guitarpedal?
64 components, from 38 distinct parts. The full bill of materials is listed on this page.
Where can I download the Guitarpedal design files?
From the rumlenordstroem/Guitarpedal repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the Guitarpedal design in my own project?
The repository has no license, so all rights stay with rumlenordstroem. Use it as a reference, and ask the author before reusing the design.
