Analog Input Module

rusefi·hw_modular·Analog_Input_Module/Analog_Input_Module.kicad_pcb

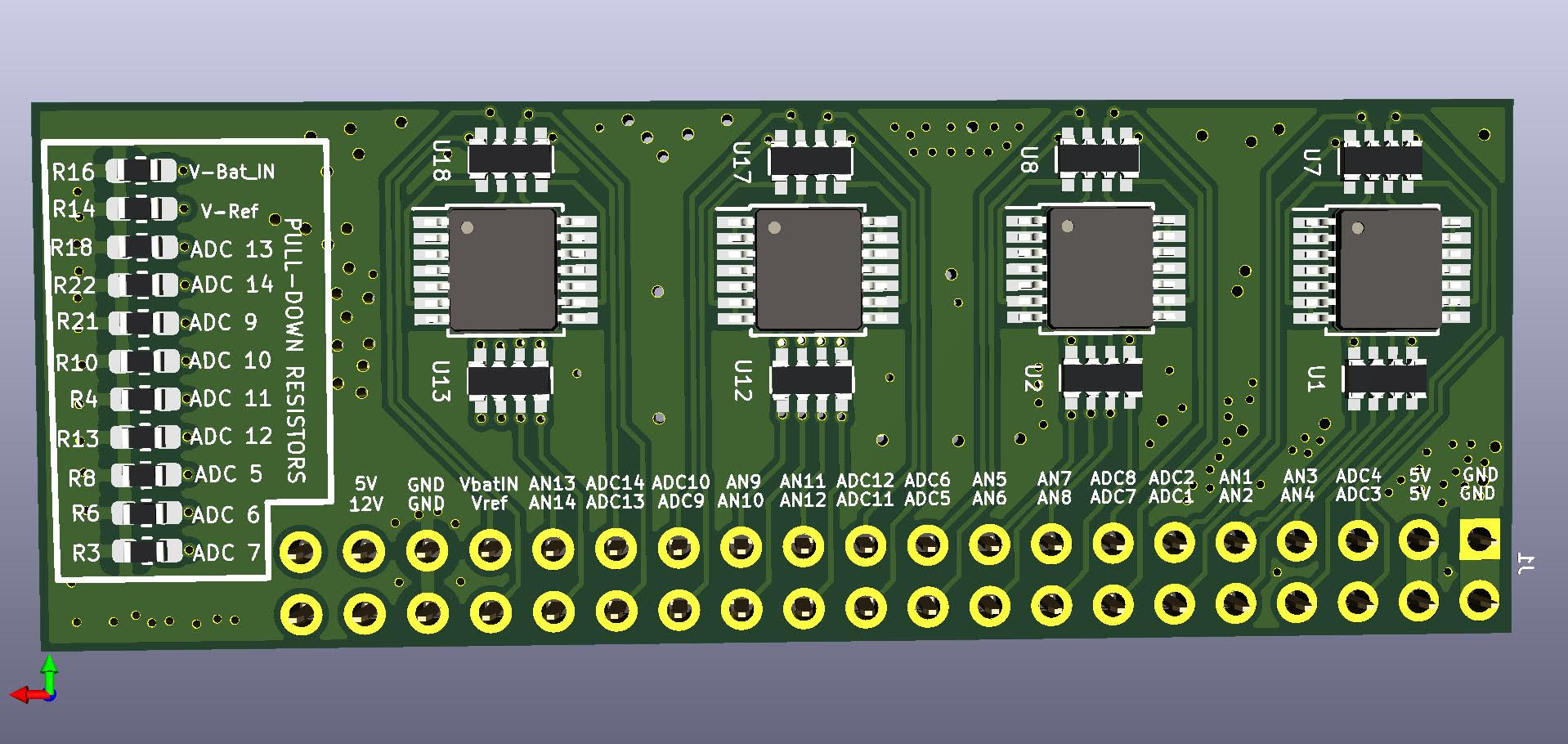

Analog Input Module layout, top view — open source board by rusefi

About the Analog Input Module

Analog Input Module is an open source PCB design by rusefi, published on GitHub. It is a 2-layer board measuring 81 × 22 mm, with 111 components from 31 distinct parts.

Other key parts include the MCP6004. By type, the board carries 70 resistors, 20 capacitors, 16 diodes, 4 ICs and 1 connector.

From the project

*DEPRECATED* rusEFI prototyping hardware

iBom https://rusefi.com/docs/ibom/AnalogInputModule_latest.html

Analog Input Module, from the project README
From the project README

Main components on the Analog Input Module

MCP6004

Analog Input Module bill of materials (BOM)

111 components, 31 distinct parts — part numbers from the project's BOM.
