High or low side drive board for RUSEFI.com

rusefi·hw_modular·highside_module/hi-lo.kicad_pcb

High or low side drive board for RUSEFI.com layout, top view — open source board by rusefi
Simulate this board

About the High or low side drive board for RUSEFI.com

High or low side drive board for RUSEFI.com is an open source PCB design by rusefi, published on GitHub. It is a 2-layer board measuring 43.4 × 20.3 mm, with 30 components from 9 distinct parts.

Other key parts include the TC4427. By type, the board carries 12 resistors, 6 LEDs, 5 connectors, 3 ICs, 3 capacitors and 1 module.

From the project

*DEPRECATED* rusEFI prototyping hardware

Based on https://github.com/rusefi/rusefi/tree/master/hardware/hi-lo_driver

iBom https://rusefi.com/docs/ibom/hi-lo_latest.html

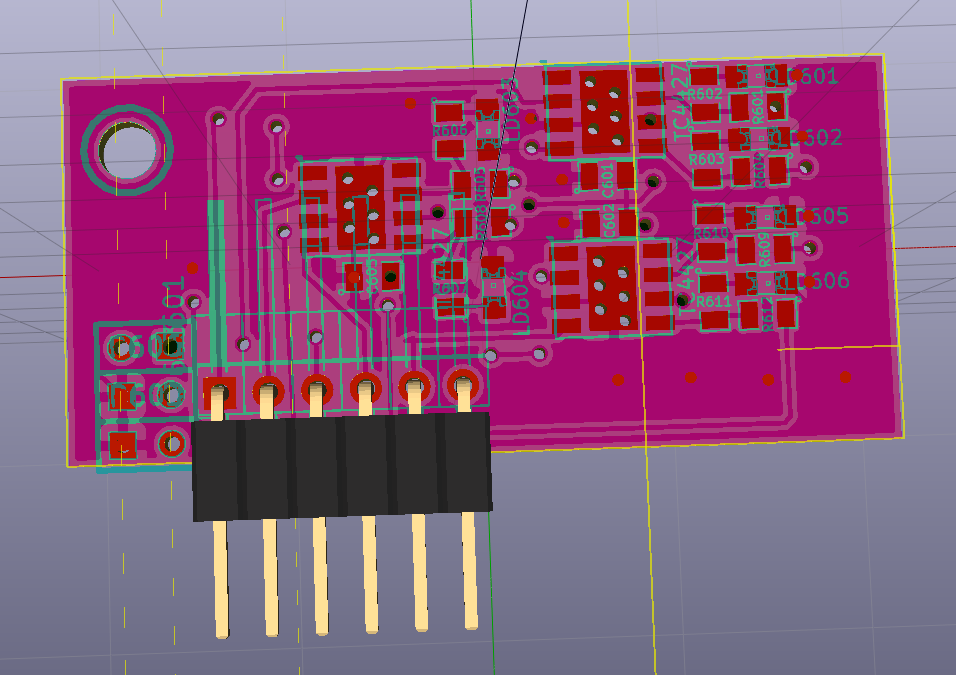

High or low side drive board for RUSEFI.com, from the project README
From the project README

Main components on the High or low side drive board for RUSEFI.com

TC4427

High or low side drive board for RUSEFI.com bill of materials (BOM)

30 components, 9 distinct parts — part numbers from the project's BOM.

QtyPartRefs
3
TC4427
U601, U602, U603
1
CONN_1
M601
1
CONN_3X2
P601
3
CONN_2
P602, P604, P606
1
CONN_6
P603
6
LED
LD601, LD602, LD603, LD604, LD605, LD606
3
0.1uF
C601, C602, C603
6
100
R601, R604, R605, R608, R609, R612
6
2700
R602, R603, R606, R607, R610, R611

High or low side drive board for RUSEFI.com design files

The KiCad project lives in the rusefi/hw_modular repository on GitHub; these links point at the commit this page was built from.

High or low side drive board for RUSEFI.com: common questions

How big is the High or low side drive board for RUSEFI.com?

The High or low side drive board for RUSEFI.com measures 43.4 × 20.3 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the High or low side drive board for RUSEFI.com?

30 components, from 9 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the High or low side drive board for RUSEFI.com design files?

From the rusefi/hw_modular repository on GitHub, which has the KiCad layout and the BOM; the links under Design files point to each one.

Can I use the High or low side drive board for RUSEFI.com design in my own project?

The repository has no license, so all rights stay with rusefi. Use it as a reference, and ask the author before reusing the design.
