Test board 48

rusefi·hw_modular·test_board_48/test_board_48.kicad_pcb

Test board 48 layout, top view — open source board by rusefi
Simulate this board

About the Test board 48

Test board 48 is an open source PCB design by rusefi, published on GitHub. It is a 2-layer board measuring 100 × 100 mm, with 18 components from 12 distinct parts.

By type, the board carries 12 resistors, 4 connectors and 2 diodes.

From the project

*DEPRECATED* rusEFI prototyping hardware

This repo is abandoned because https://github.com/andreika-git/hellen-one is the way!

Home of rusEFI modular prototyping hardware

Depends on libraries from https://github.com/rusefi/kicad-libraries

If you download complete repo do not forget to download libraries. If you git clone be sure to also

If you download complete repo do not forget to download libraries. If you git clone be sure to also

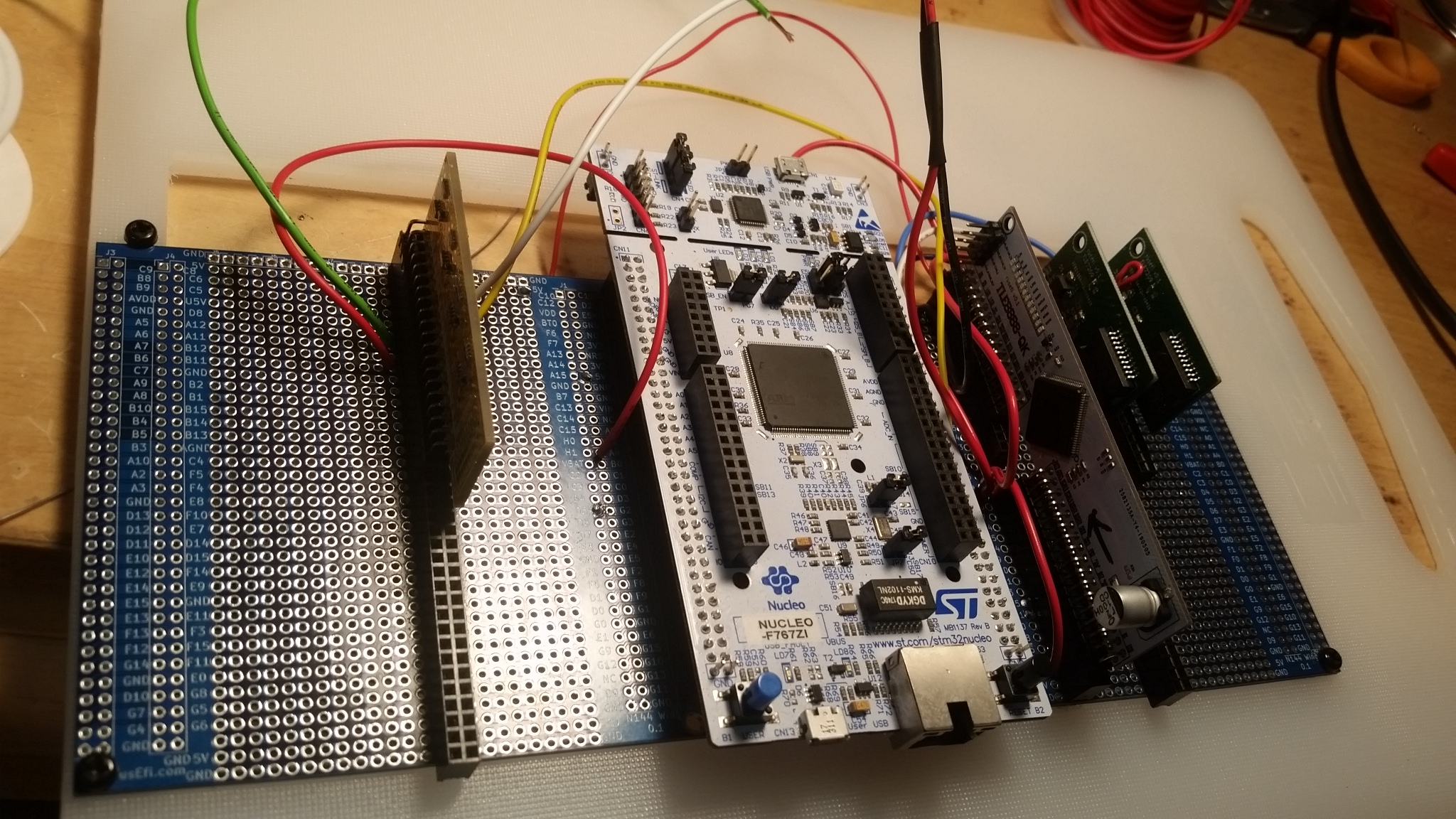

Test board 48, from the project README
From the project README

Test board 48 bill of materials (BOM)

18 components, 12 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
CONN_02X20_ODD_EVEN
Conn_01x01
J1
3
Conn_01x01
J2, J3, J4
2
LED
D1, D2
2
10K
R
R1, R7
2
C22962
R
R2, R6
1
82.5R
R
R3
2
C25741
R
R4, R12
1
C25790
R
R5
1
C25900
R
R8
1
C17778
R
R9
1
C25917
R
R10
1
C25744
R
R11

Test board 48 design files

The KiCad project lives in the rusefi/hw_modular repository on GitHub; these links point at the commit this page was built from.

Test board 48: common questions

How big is the Test board 48?

The Test board 48 measures 100 × 100 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Test board 48?

18 components, from 12 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Test board 48 design files?

From the rusefi/hw_modular repository on GitHub, which has the KiCad layout and the BOM; the links under Design files point to each one.

Can I use the Test board 48 design in my own project?

The repository has no license, so all rights stay with rusefi. Use it as a reference, and ask the author before reusing the design.
