TLE7209-2R Module

rusefi·hw_modular·TLE7209_or_MC33186_H-Bridge_Breakout/TLE7209_Module.kicad_pcb

TLE7209-2R Module layout, top view — open source board by rusefi

About the TLE7209-2R Module

TLE7209-2R Module is an open source PCB design by rusefi, published on GitHub. It is a 2-layer board measuring 43 × 22 mm, with 13 components from 13 distinct parts.

Other key parts include the TS5A3166DCKR. By type, the board carries 5 resistors, 4 capacitors, 2 connectors, 1 IC and 1 diode.

From the project

*DEPRECATED* rusEFI prototyping hardware

2 layer (also 4 layer version? TODO: add some clarity)

iBom https://rusefi.com/docs/ibom/TLE7209Modulelatest.html

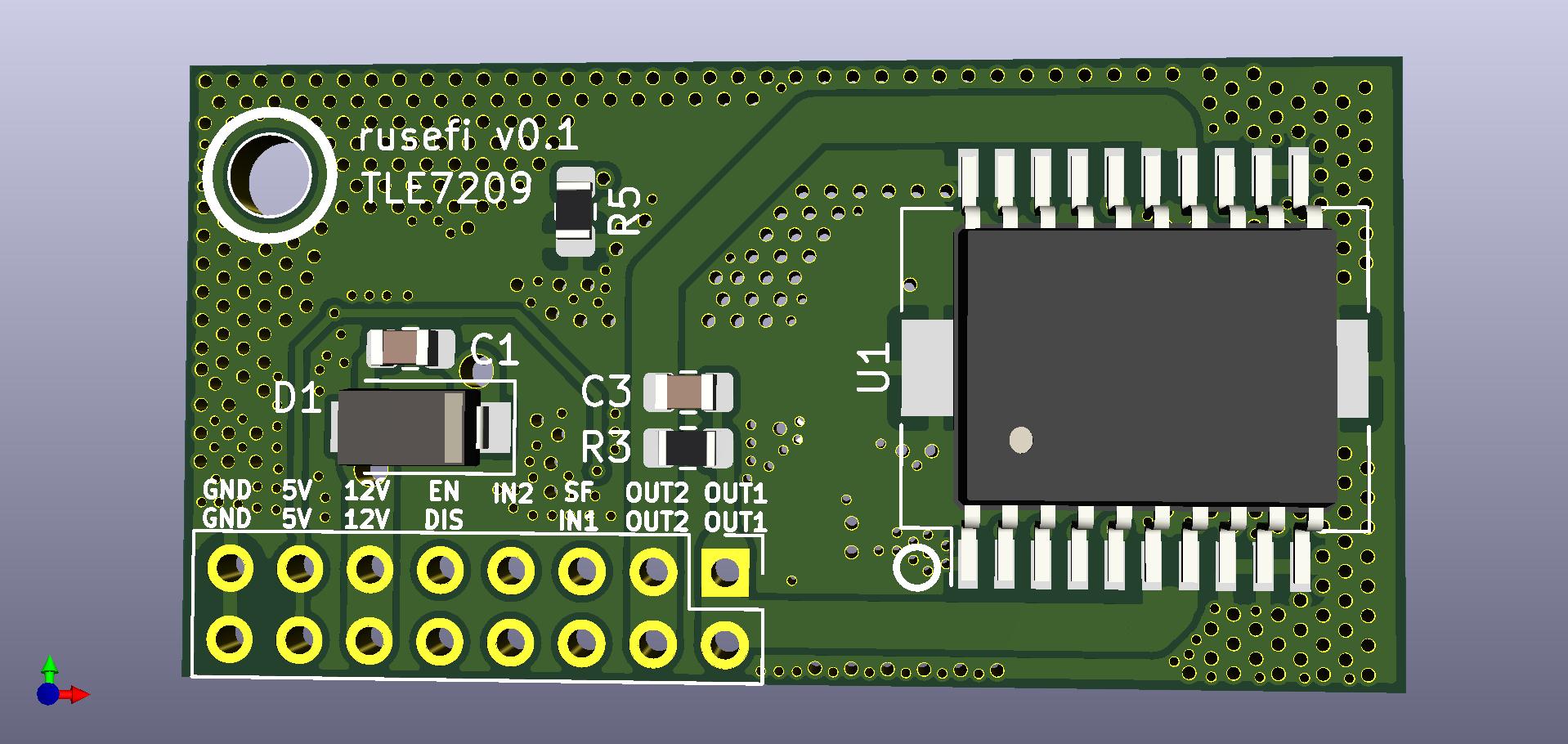

TLE7209-2R Module, from the project README — From the project README

Main components on the TLE7209-2R Module

TLE7209-2R Module bill of materials (BOM)

13 components, 13 distinct parts — part numbers from the project's BOM.

Qty	Part	Footprint	Refs
1	TS5A3166DCKR TLE7209-2R	HSOP-20-1EP_11.0x15.9mm_P1.27mm_SlugDown_ThermalVias	U1
1	CONN_02X20_ODD_EVEN Conn_02x06_Odd_Even	PinHeader_2x08_P2.54mm_Vertical	J1
1	Conn_01x01	1pin	J3
1	TPSMB24A	D_SMA	D1
1	C1530 100nF	C_0805_2012Metric_Pad1.15x1.40mm_HandSolder	C1
1	C1525 33nF	C_0805_2012Metric_Pad1.15x1.40mm_HandSolder	C2
1	C1585 10nF	C_0805_2012Metric_Pad1.15x1.40mm_HandSolder	C3
1	C1585 100uF	CP_Elec_8x10	C4
1	10K 47K	R_0805_2012Metric_Pad1.15x1.40mm_HandSolder	R1
1	C22962 1M	R_0805_2012Metric_Pad1.15x1.40mm_HandSolder	R2
1	82.5R 4.7K	R_0805_2012Metric_Pad1.15x1.40mm_HandSolder	R3
1	C25741 10K	R_0805_2012Metric_Pad1.15x1.40mm_HandSolder	R4
1	C25790 10K	R_0805_2012Metric_Pad1.15x1.40mm_HandSolder	R5

TLE7209-2R Module design files

The KiCad project lives in the rusefi/hw_modular repository on GitHub; these links point at the commit this page was built from.

TLE7209-2R Module: common questions

How big is the TLE7209-2R Module?

The TLE7209-2R Module measures 43 × 22 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the TLE7209-2R Module?

13 components, from 13 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the TLE7209-2R Module design files?

From the rusefi/hw_modular repository on GitHub, which has the KiCad layout and the BOM; the links under Design files point to each one.

Can I use the TLE7209-2R Module design in my own project?

The repository has no license, so all rights stay with rusefi. Use it as a reference, and ask the author before reusing the design.
