Power Distribution

ryos17·robosub-ee·gen3/PCBs/Power_Distribution/Power_Distribution.kicad_pcb

Power Distribution PCB layout, top view — open source board by ryos17

About the Power Distribution PCB

Power Distribution is an open source PCB design by ryos17, published on GitHub. It is a 2-layer board measuring 151.4 × 80 mm, with 82 components from 24 distinct parts.

Other key parts include the ACS713ELCTR-30A-T, MCP9808_MSOP and AMS1117-3.3. By type, the board carries 22 resistors, 17 connectors, 10 ICs, 6 capacitors, 1 transistor and 1 test point.

From the project

Stanford Robosub Electrical Repository

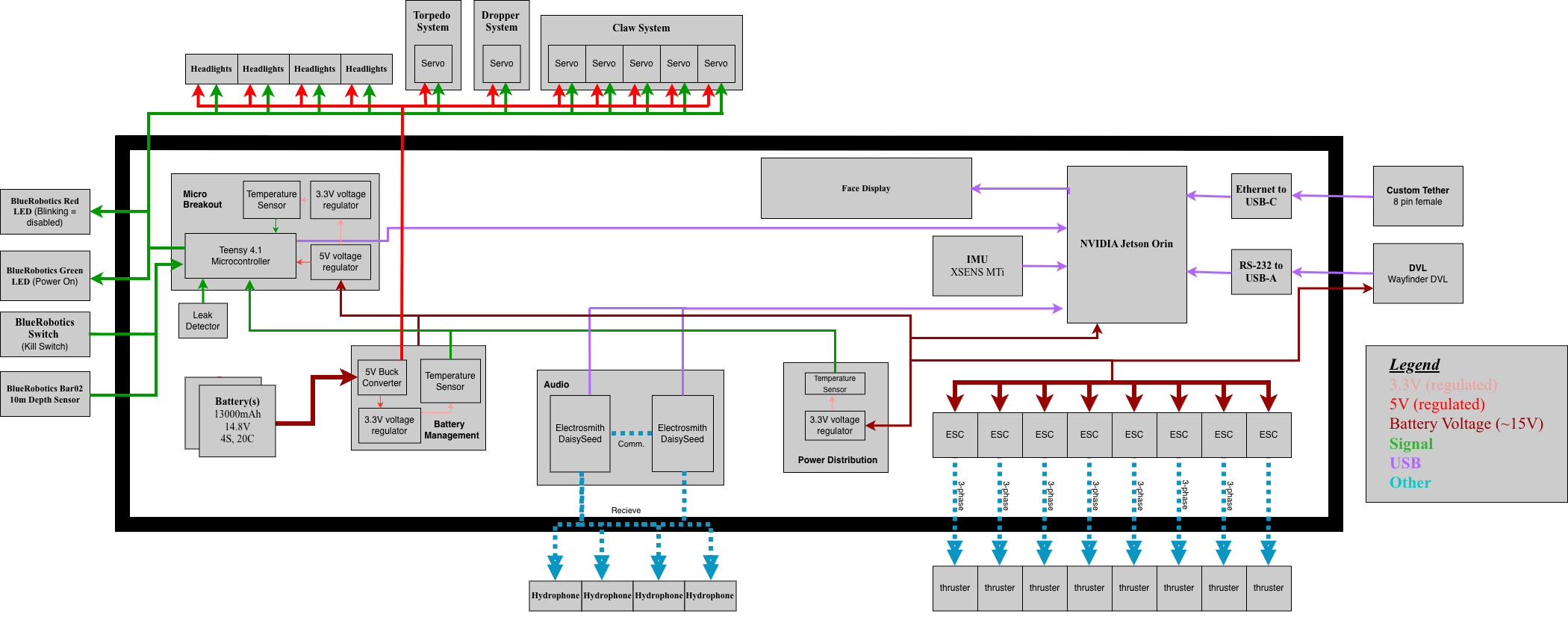

The third hardware generation, currently being designed. The proposed system architecture is shown below; the boards under PCBs/ are the work toward it. The current working vehicle is still gen2/.

- MicroBreakout/ — the main breakout board for gen 3, the successor to the gen 2 MLU breakout. References the shared parts library in ../../importedparts. - BatteryBoards/ — the gen 3 power-management / battery boards, the follow-on to the gen 2 PowerManagement boards (which had heat problems). Two design variants: - PowerManagementV3diode/ — the diode-based design; this is the lead design. -…

Power Distribution, from the project README
From the project README

Main components on the Power Distribution

ACS713ELCTR-30A-TMCP9808_MSOPAMS1117-3.3

Power Distribution bill of materials (BOM)

82 components, 24 distinct parts — part numbers from the project's BOM.

QtyPartRefs
8
ACS713ELCTR-30A-T
IC0, IC1, IC2, IC3, IC4, IC5, IC6, IC7
1
MCP9808_MSOP
U1
1
AMS1117-3.3
U3
1
L78M05ABDT-TR
Q7
1
1098169
Conn_01x02_Pin
J1
1
1098169
Conn_01x02_Pin
J2
1
SBH11-PBPC-D05-ST-BK
J3
2
1098169
J4, J5
2
1098169
J6, J7
2
430450212
J8, J9
6
430450228
430450212
J10, J11, J12, J13, J14, J15
2
Conn_01x08
J98, J99
8
0.1 µF
Cb1, Cb2, Cb3, Cb4, Cb5, Cb6, Cb7, Cb8
8
100 nF
Cf1, Cf2, Cf3, Cf4, Cf5, Cf6, Cf7, Cf8
8
1 µF
Cf9, Cf10, Cf11, Cf12, Cf13, Cf14, Cf15, Cf16
1
0
DNP1
1
TestPoint
TP1
3
1 µF
C1, C3, C5
3
10 µF
C2, C4, C6
1
10K
10k
R1
Show 4 more
QtyPartRefs
1
10K
0R
R2
4
0R
R5, R6, R7, R8
8
2.2k
R9, R10, R11, R12, R13, R14, R15, R16
8
3.3k
R17, R18, R19, R20, R21, R22, R23, R24

Power Distribution design files

The KiCad project lives in the ryos17/robosub-ee repository on GitHub; these links point at the commit this page was built from.

Power Distribution: common questions

How big is the Power Distribution PCB?

The Power Distribution measures 151.4 × 80 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Power Distribution?

82 components, from 24 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Power Distribution design files?

From the ryos17/robosub-ee repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Power Distribution design in my own project?

The repository has no license, so all rights stay with ryos17. Use it as a reference, and ask the author before reusing the design.
